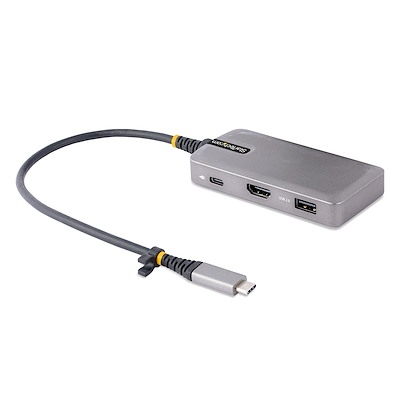

STARTECH USB-C MULTIPORT ADAPTER HDMI, WORKS WITH CHROMEBOOK (WWCB) 3 YR 104B-USBC-MULTIPORT
5-IN-1 MULTIPORT ADAPTER: Portable USB-C travel dock supports UHD 4K 60Hz HDMI 2.0b (HDR10) video via DP 1.4 Alt Mode for connecting monitor/display, 3-port USB-A hub (2x USB 3.2 Gen 1 5Gbps), 100W USB-C Power Delivery Pass-Through
RELIABLE PERFORMANCE: Port Replicator with 100W PD Pass-Through; 14W reserved for adapter (when using one or all ports) & up to 86W available for host laptop charging; Prevents device dropouts, video flickering, and/or power overdraw common in other hubs
USB PORTS WITH DEDICATED POWER: Two downstream USB-A ports support USB 3.2 Gen 1 (5Gbps) and with a USB-C power adapter connected, each port provides 4.5W (5V/0.9A) of dedicated Power, ideal for connecting USB devices that require a consistent power draw

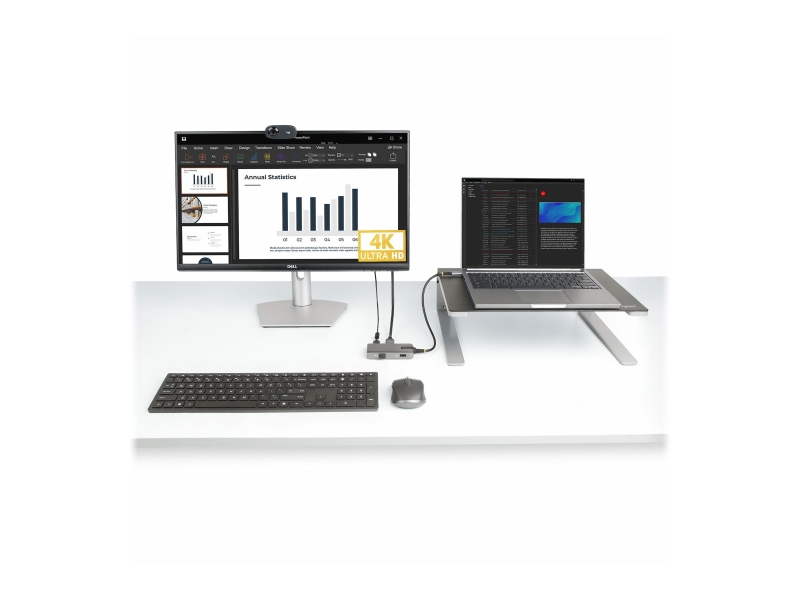

EXTRA-LONG CABLE: Extended port reach w/attached 12" host cable, clip for cable management, automatic driver setup, weighted design to keep adapter more stable on work surface, ideal for office or work-from-home workstations & presenting from a boardroom
UNIVERSAL COMPATIBILITY: USB-C Hub/Dock supports Windows, macOS; WWCB certified for compatibility with all Chromebooks; Works with USB-C, TB3 & TB4 host computers; Auto firmware updates through ChromeOS for max performance, compatibility & security
Warranty Information
Warranty
3 Years
Package Quantity
1
Connector(s)
External Ports
1 - HDMI (19 pin)
1 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
2 - USB 2.0 Type-A (4 pin, 480Mbps)
1 - USB Type-C (24 pin) USB Power Delivery Only
Host Connectors
1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
Environmental
Operating Temperature
0°C to 35°C (32°F to 95°F)
Storage Temperature
-25°C to 65°C (-13°F to 149°F)
Humidity
0~95% RH (Non-condensing)
Hardware
4K Support
Yes
Fast-Charge Port(s)
No
Displays Supported
1
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
USB-C
Industry Standards
HDMI 2.0b
USB 3.2 Gen 1 (5Gbps)
USB Power Delivery Specification Rev. 3.0
Certified Works with ChromeBook (WWCB)
Chipset ID
Analogix - ANX7327
Analogix - ANX7518
VIA - VL817-Q7
Packaging Information
Package Length
7.1 in [18.0 cm]
Package Width
4.5 in [11.5 cm]
Package Height
1.6 in [4.0 cm]
Shipping (Package) Weight
4.2 oz [120.0 g]
Performance
Maximum Data Transfer Rate
5Gbps
Maximum Digital Resolutions
Up to 4K (4096x2160) 60Hz
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
UASP Support
Yes
General Specifications
Maximum Laptop Charging: 86W
Physical Characteristics
Color
Space Gray
Product Length
3.9 in [10.0 cm]
Product Width
1.9 in [4.8 cm]
Product Height
0.6 in [1.6 cm]
Weight of Product
3.7 oz [105.0 g]
Material
Plastic
Cable Length
13.8 in [35 cm]
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Power Delivery
100W
Power Consumption (In Watts)
14W
Software
OS Compatibility
Windows® 10, 11
macOS 10.15, 11.0, 12.0, 13.0
Android™
Linux® Ubuntu 18.04, 20.04
ChromeOS™ (Certified Works with Chromebook)
Special Notes / Requirements
System and Cable Requirements
A host device with an available USB-C port (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery 2.0 and DP alt mode).
Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode.
If the USB-C Host does not support USB Power Delivery, the PD Power Port will not supply power to the USB-C Host.
A 4K-capable display is required to achieve UHD resolution (4K is also known as 4K x 2K).
USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).
Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
What's in the Box
Included in Package
1 - USB-C Multiport Adapter
1 - Quick-Start Guide
