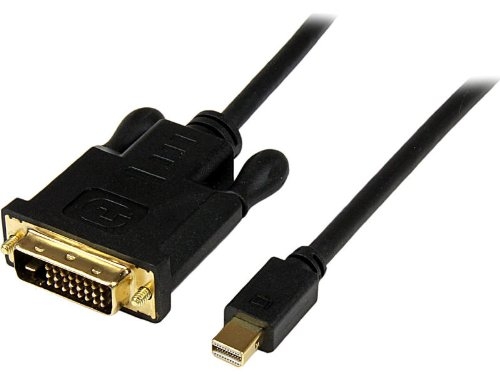

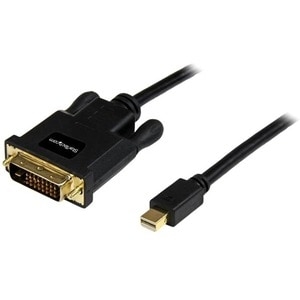

Startech 10 Ft Mini Displayport To Dvi Adapter Converter Cable - 10 Foot Mini Dp To Dvi Video Adapter 223607
QUICK OVERVIEW
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC over a longer 10 foot distance – Black
|
Applications
- Connect your existing DVI display device (monitor, projector) to a Mini DisplayPort output device
- Ideal for using your DVI monitor as a secondary display
Connector(s) | |
Connector A | Mini-DisplayPort (20 pin) Male |
Connector B | DVI-D (25 pin) Male |
Environmental | |
Humidity | 40%-85%RH |
Operating Temperature | 0?C to 60?C (32?F to 140?F) |
Storage Temperature | 0?C to 70?C (32?F to 158?F) |
Hardware | |
Active or Passive Adapter | Passive |
Adapter Style | Cable Adapters |
Audio | No |
Chipset ID | NXP - 3361 |
Converter Type | Cable Adapters |
Output Signal | DVI-D (DVI Digital) |
Packaging Information | |
Shipping (Package) Weight | 162 g [5.7 oz] |
Performance | |
Maximum Cable Length | 3 m [10 ft] |
Maximum Digital Resolutions | 1920x1200 / 1080p |
Wide Screen Supported | Yes |
Physical Characteristics | |
Cable Length | 3 m [10 ft] |
Color | Black |
Product Height | 15 mm [0.6 in] |
Product Length | 3050 mm [120.1 in] |
Product Weight | 153 g [5.4 oz] |
Product Width | 38 mm [1.5 in] |
Special Notes / Requirements | |
System and Cable Requirements | DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI? signal pass-through |
What's in the Box | |
Included in Package | Mini DisplayPort? to DVI Adapter |
The MDP2DVIMM10B Mini DisplayPort® to DVI Adapter Cable lets you directly connect your Mini DP video source (desktop PC, laptop, Ultrabook, etc.) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM10B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
