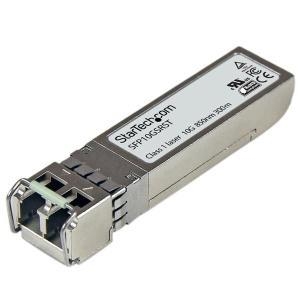

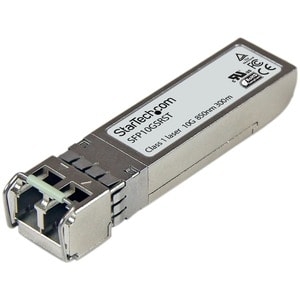

Startech 10gbase-sr Sfp+ Transceiver Mm Lc - 300m Sfp10gsrst
The SFP10GSRST Cisco Compatible 10GBase-SR SFP+ Fiber Transceiver Module 850nm MM LC w/DDM - 300m (984ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a 10Gb SFP+ Multimode LC port on your fiber networking equipment or fiber media converter.
Supporting data rates up to 11.1 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP+/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant 10GbE SFP+ port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 850nm multi-mode SFP+ module is compatible with the Cisco SFP-10G-SR transceiver.
Features:
- Maximum data rates up to 11.1Gbps
- Supports distances up to 300m (984ft)
- Complies with SFP Multi-Source Agreements standards (MSA)
- Compatible with Cisco equipment
- LC Fiber connector
- Fully Hot Pluggable
| Performance | |
| Max Transfer Distance | 300 m (984 ft) |
| Maximum Data Transfer Rate | 11.1 Gbps |
| MTBF | 1,967,709 hours |
| Wavelength | 850nm |
| Physical Characteristics | |
| Product Height | 10 mm [0.4 in] |
| Product Length | 60 mm [2.4 in] |
| Product Weight | 18 g [0.6 oz] |
| Product Width | 12 mm [0.5 in] |
| Special Notes / Requirements | |
| System and Cable Requirements | MSA or Cisco compliant SFP+ port |
| What's in the Box | |
| Included in Package | 10Gbps Multimode LC SFP+ Module |
| Performance | |
| Fiber Type | Multi Mode |
| Fiber Operating Mode | Full-Duplex |
| DDM | Yes |
| Compatible Networks | 10 Gbps |
| Packaging Information | |
| Shipping (Package) Weight | 95 g [3.4 oz] |
| Hardware | |
| WDM | No |
| Industry Standards | IEEE 802.3ae 10GBASE-SR |
| Compatible Brand | Cisco |
| Environmental | |
| Storage Temperature | -40?C to 85?C (-40?F to 85?F) |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Humidity | 30~70% RH |
| Connector(s) | |
| Local Unit Connectors | Fiber Optic LC Duplex Female |
The SFP10GSRST Cisco® Compatible 10GBase-SR SFP+ Fiber Transceiver Module 850nm MM LC w/DDM - 300m (984ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a 10Gb SFP+ Multimode LC port on your fiber networking equipment or fiber media converter.
Supporting data rates up to 11.1 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP+/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant 10GbE SFP+ port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 850nm multi-mode SFP+ module is compatible with the Cisco SFP-10G-SR transceiver.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
