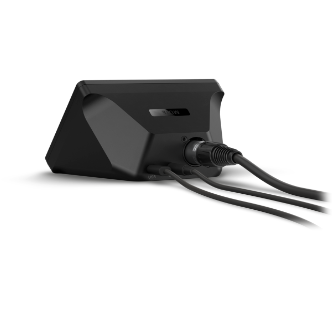

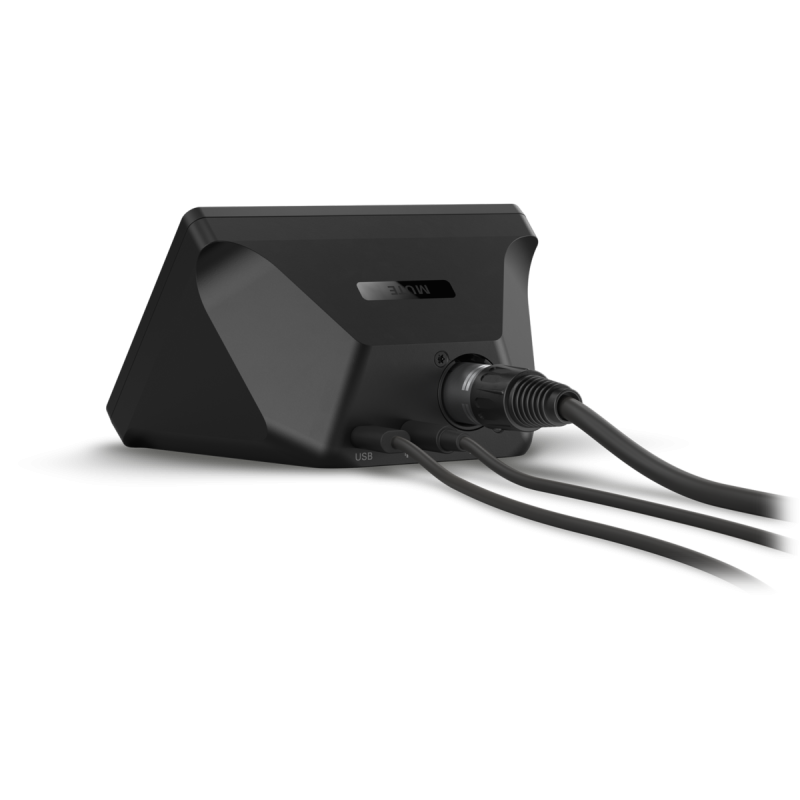

Wave XLR 10MAG9901(WAVE_XLR)

SKU
407999
Brand
MPN
10MAG9901
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$236.00
Buy Now And Earn 236 Reward Points!

Wave XLR does the work of multiple devices and packs features you won‘t find in conventional audio interfaces. Like proprietary Clipguard anti-distortion technology, a capacitive mute button, and integration with custom Wave Link mixing software. With up to 75 dB of ultra-low-noise gain, even notoriously insensitive dynamic mics sound loud and clear. 48 volts of phantom power bring condenser mics to life, and two switchable low-cut filters let you remove low frequencies for close and distant mic positions. You can even swap out the faceplate and control dial. Wave XLR — a compact USB interface that gives your mic superpowers.

FEATURES

• Premium XLR to USB-C connection

• Use the Wave Link app to mix Wave XLR with multiple audio sources, plus create two independent mixes

• Proprietary Clipguard technology prevents microphone distortion

• Up to 75 dB of ultra-low-noise gain amplifies insensitive mics

• 48 V phantom power drives condenser microphones

• Dual selectable filters remove low frequencies

• High-power 3.5 mm headphone jack for clear zero-latency monitoring

• Capacitive mute button silences your mic feed upon the lightest touch

• Multifunctional control dial for mic gain, headphone volume, and mic / PC mix

• Faceplate and control dial can be swapped for different designs

TECHNICAL SPECIFICATIONS

• Frequency Response: 20 Hz - 20 kHz

• Dynamic Range: 100 dB (120 dB Clipguard engaged)

• Equivalent Input Noise (EIN): -130 dBV @ 60 dB gain

• Gain Range: 0 - 75 dB

• Phantom Power: 48 VDC, 7mA

• Maximum Input Level: 10 V @ 0 dB gain (Clipguard engaged)

• Maximum Output Level: 77 mW

• Resolution: 24-bit

• Sample Rate: 48 / 96 kHz

• Interface: USB-C

SYSTEM REQUIREMENTS

• Windows 10 (64-bit)

• macOS 10.15 or newer

• USB 3.0 or higher

Specifications
Compatible/Used for Sound control
Dimensions 88 x 118 x 84 mm
Product Family
Product Type MICROPHONE INTERFACE
Warranty 2 Years
Weight 300 g
Interface USB-C
Wave XLR
