StarTech.com USB Type C Docking Station for Monitor/Notebook/Workstation - 100 W - Space Gray - Portable - 1 Displays Supported - 4K, 2K - 3840 x 2160, 4096 x 2160, 3440 x 1440 - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI P 127

SKU
395614
Brand
MPN
127B-USBC-MULTIPORT
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$158.00
Buy Now And Earn 158 Reward Points!

StarTech.com USB Type C Docking Station for Monitor/Notebook/Workstation - 100 W - Space Gray - Portable - 1 Displays Supported - 4K, 2K - 3840 x 2160, 4096 x 2160, 3440 x 1440 - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - DisplayPort - Thunderbolt - Wired - Gigabit Ethernet - Windows, macOS, Chrome OS, Android, Linux

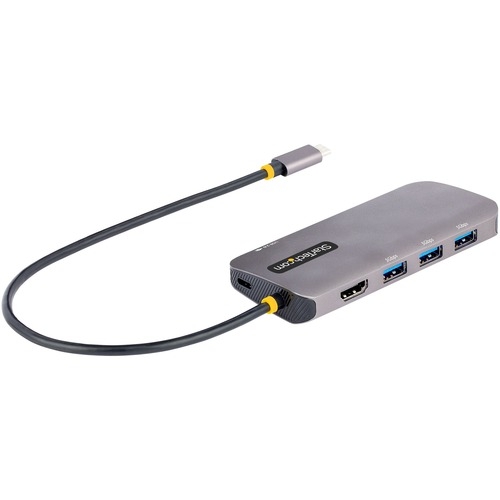

This USB-C™ Multiport Adapter with DP 1.4 Alt Mode supports 4K 60Hz HDMI® (HDR) and turns your MacBook, Dell XPS, or other USB-C laptop or tablet into a workstation, anywhere you go. The USB Type-C™ Multiport Adapter features one 4K HDMI video output, three USB 3.2 Gen 1 Type-A (5Gbps) ports, and a Gigabit Ethernet port, all through one connection to your laptop's USB-C, USB4, or Thunderbolt 3/4™ port. In addition, it offers advanced charging and flexibility through a shared USB-C Power Delivery 3.0 and Data port; this port can be used to connect peripherals, whenever a power source is not connected, at USB 2.0 data transfer speeds (480Mbps). The Multiport Adapter features an extra-long attached 12-inch (30 cm) host cable - for an extended reach, to offer more setup flexibility.

Enhance Productivity

The portable docking station enables the connection of a 4K 60Hz HDMI monitor (4096 x 2160p), or an ultrawide monitor, to your laptop, in order to create a powerful workstation.

DP Alt -Mode Maximum Resolution DP 1.2 Alternate Mode Up to 4K 30Hz DP 1.4 Alternate Mode Up to 4K 60Hz

Connect Your USB Devices

The USB-C to USB 3.2 Gen 1 hub features three USB-A (5Gbps) ports for connecting your USB devices.

Multiple Use Cases

A versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom, it is portable enough to be carried in your bag or backpack for mobile use. This lightweight USB-C Adapter can be bus-powered. Alternatively, connect your laptop's USB-C power adapter to charge your laptop and USB peripherals.

Charge Your Laptop

With support for USB Power Delivery 3.0 pass through (up to 100W), the USB Type-C Multiport Adapter allows you to power and charge your laptop, when connected to a USB-C power source. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

Reliable Network Connectivity

The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and WoL.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

  • Advanced Windows Layout Utility: Setup and save custom windows layouts.

  • MAC Address Pass-Through Utility: Improve network security.

  • USB Event Monitoring Utility: Track and log connected USB devices.

  • Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

Network & Communication
Ethernet TechnologyGigabit Ethernet
Power Description
Maximum Power Supply Wattage100 W
Physical Characteristics
Weight (Approximate)70.9 g
Form FactorPortable
Height12.7 mm
Width426.7 mm
Product ColorSpace Gray
Software
Operating System SupportedAndroid
Chrome OS
Linux
macOS
Windows
Interfaces/Ports
Host InterfaceUSB Type C
HDMIYes
HDMI Version2.0
Number of HDMI Ports1
Network (RJ-45)Yes
DisplayPortYes
ThunderboltYes
Number of RJ-45 Ports1
USB Type-CYes
USB Type-C Detail1 - USB Type-C (Power Delivery + Data, 24 Pin, 480Mbps)
DisplayPort Version1.4
Number of USB 3.2 Gen 1 Type-A Ports3
USB Type-AYes
General Information
Product TypeDocking Station
Manufacturer Part Number127B-USBC-MULTIPORT
Manufacturer Website Addresshttp://www.startech.com/au
Packaged Quantity1
ManufacturerStarTech.com
Product NameDocking Station
Brand NameStarTech.com
Miscellaneous
Compatibility

    Compatible Products:

    • Mini dock is compatible with USB-C laptops, Ultrabooks and Chromebooks, and Thunderbolt 3/4 laptops from HP, Dell, Lenovo; MacBooks (Intel & M1 Pro/Max processors) and Surface; works with Windows, macOS, iPadOS, Android, Linux & Chrome OS

Environmentally FriendlyYes
Brand CompatibilityLenovo
Intel
Dell
HP
Apple
Technical Information
Device SupportedMonitor/Notebook/Workstation
Connectivity TechnologyWired
Number of Displays Supported1
Supported Resolutions3840 x 2160
4096 x 2160
3440 x 1440
Screen Mode Supported4K
2K
