Startech 12in Sata To Left Angle Sata Serial Ata Cable Sata12la1

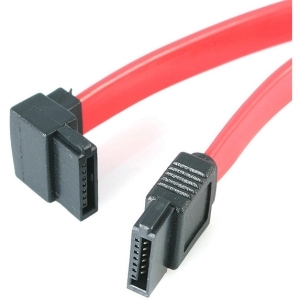

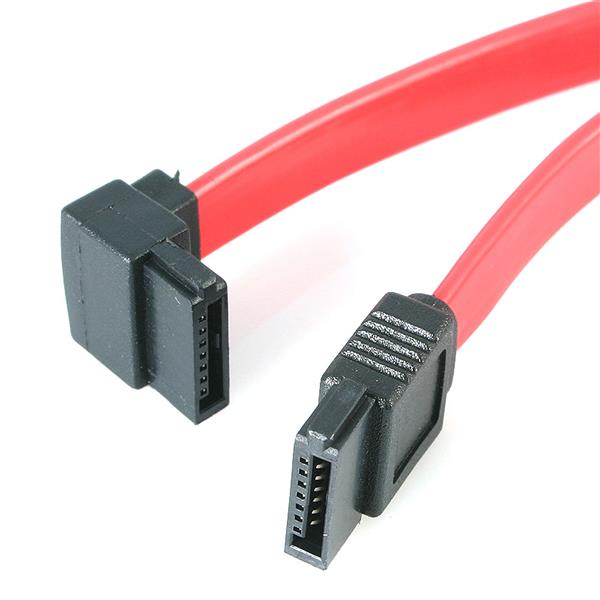

| Make a left-angled connection to your SATA drive, for installation in tight spaces. The SATA12LA1 Left Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a left-angled SATA receptacle, providing a simple 12-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives The left-angled SATA connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool. Constructed of only top quality materials and designed for optimum performance and reliability this 12" SATA cable is backed by our lifetime warranty. As an alternative, StarTech.com also offers a 12in Right Angle SATA cable (SATA12RA1), which provides the same simple installation as this left angled SATA cable, but allows the cable to connect to the SATA drive from the opposite direction. |
Features a thin cable design, which helps reduce clutter and increase airflowThe SATA12LA1 Left Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a left-angled SATA receptacle, providing a simple 12-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives. |  |
 | Left-angled SATA connector easily fits into hard to reach areas and tight spacesThe left-angled SATA connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool. |
Applications
- Installing Serial ATA hard drives, and DVD drives in Small Form Factor computer cases
- Server and storage subsystem applications
- High-end workstation drive installations
- Connections to SATA Drive Arrays
| Physical Characteristics | |
| Wire Gauge | 26 AWG |
| What's in the Box | |
| Included in Package | 12in SATA to Left Angle SATA Serial ATA Cable |
| Physical Characteristics | |
| Product Weight | 10.9 g [0.4 oz] |
| Product Length | 304.8 mm [12 in] |
| Connector Style | Straight to Left Angle |
| Color | Red |
| Cable Length | 304.8 mm [12 in] |
| Performance | |
| Type and Rate | SATA III (6 Gbps) |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0 lb] |
| Package Quantity | 1 |
| Hardware | |
| Number of Conductors | 7 |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Connector(s) | |
| Connector B | SATA (7 pin, Data) Receptacle |
| Connector A | SATA (7 pin, Data) Receptacle |
The SATA12LA1 Left Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a left-angled SATA receptacle, providing a simple 12-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives.
The left-angled SATA connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool.
Constructed of only top quality materials and designed for optimum performance and reliability this 12" SATA cable is backed by our lifetime warranty.
As an alternative, StarTech.com also offers a 12in Right Angle SATA cable (SATA12RA1), which provides the same simple installation as this left angled SATA cable, but allows the cable to connect to the SATA drive from the opposite direction.
