Startech Mount Your Server Or Networking Equipment Using This Adjustable 12u Wall-mount Network

4.2
(94 reviews)
SKU
257795
Brand
MPN
RK12WALLOA
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$320.00
Buy Now And Earn 320 Reward Points!

QUICK OVERVIEW

rack RK12WALLOA

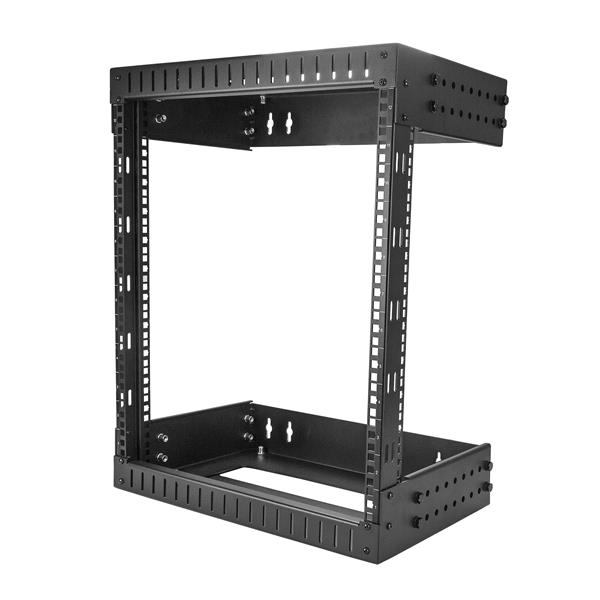

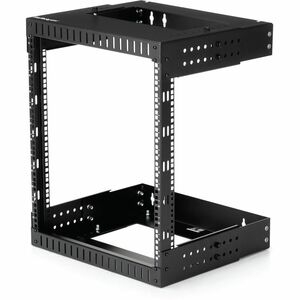

This open-frame wall-mount server rack provides 12U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb. (90 kg).

Easy, hassle-free installation

With adjustable depth to as low as 12 in. (30.4 cm) this network rack is perfect for smaller spaces. It’s easy to assemble and features wall-mounting holes that are spaced 12 and 16 in. apart, making it suitable for mounting on almost any wall, based on North American wall-frame stud-spacing standards. The wall-mount rack comes in a flat-pack, which makes it easy to transport and saves you money on shipping.

Accommodate larger devices

The open-frame rack adjusts from 12 to 20 in. (30.4 to 50.8 cm) to accommodate larger data, network, and telecommunication devices. The above-average depth also gives you the option to mount shelves and other accessories.

Free up space

When space is limited you can mount the open-frame rack on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.

Keep your equipment cool and accessible

The rack’s open frame design ensures passive cooling for your rack-mounted equipment. Additionally, the open frame provides easy access to your equipment and makes it easier to configure mounted devices, which saves you time.

The RK12WALLOA is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Hardware
Additional Required Tools13 mm socket wrench
Adjustable Mounting RailsYes
Cable ManagementNo
Fan(s)No
Frame TypeOpen Frame
Industry StandardsEIA RS310-D
Ladder TypeL-Shape
Mounting HolesSquare
Number and Type of Included Cage NutsM6
Rack Type2-Post
StyleWall-Mount
U Height12U
U MarkingsYes
WallmountableYes
Packaging Information
Shipping (Package) Weight17 kg [37.6 lb]
Performance
Weight Capacity (Stationary)90 kg [198.9 lb]
Physical Characteristics
ColorBlack
Enclosure TypeHeavy Duty Steel
External Depth30.5 cm [12 in]
External Height64.1 cm [25.2 in]
External Width50.4 cm [19.8 in]
Internal Depth48.4 cm [19.1 in]
Internal Height55.4 cm [21.8 in]
Internal Width45 cm [17.7 in]
Maximum Mounting Depth50.8 cm [20 in]
Minimum Mounting Depth30.5 cm [12 in]
Product Height65 cm [25.6 in]
Product Length51.4 cm [20.2 in]
Product Weight14.6 kg [32.3 lb]
Product Width50.8 cm [20 in]
What's in the Box
Included in Packageassembly screws
bolts
flat washers
front horizontal brackets
instruction manual
M6 cage nuts
M6 screws
plastic washers
rear horizontal brackets
vertical rails
Marketing TextThis open-frame wall-mount server rack provides 12U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb. (90 kg).
PI DateJan 2018
Brand NameStartech
Manufacturer Web Sitehttp://www.startech.com
Product TypeOpen Frame Rack
Rack Height12 U
Weight Capacity90Kg
MaterialSteel
Rack Type2-Post
ColorBlack
Width (mm)504.0
Height (mm)641.0
Depth (mm)305.0
Weight (Kg)16.0
Other Features* Ladder Type: L-Shape
* Number and Type of Included Cage Nuts: 48 - M6
Compliance Standrards* RoHS
Package Contents* 2 - vertical rails
* 2 - front horizontal brackets
* 2 - rear horizontal brackets
* 48 - M6 cage nuts
* 48 - M6 screws
* 48 - plastic washers
* 16 - assembly screws
* 24 - flat washers
* 24 - bolts
* 1 - instruction manual
Warranty5 Year
