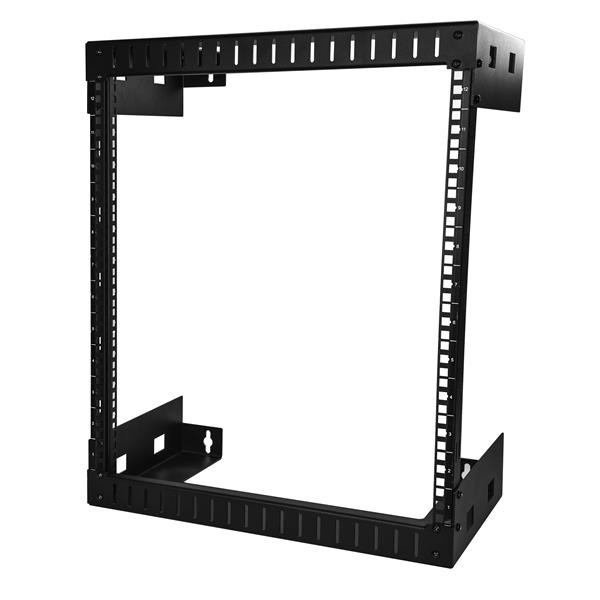

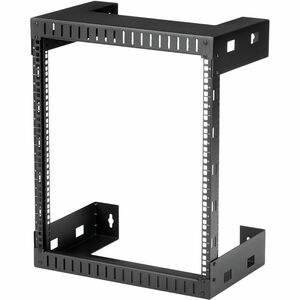

Startech Mount Your Server Or Networking Equipment Using This 12u Wall Mount Rack Rk12wallo
This open-frame wall-mount server rack provides 12U of storage, allowing you to save space and stay organized. The equipment rack can hold up to 198 lb. (90 kg).
Easy, hassle-free installation
The network rack is 12 in. (30.4 cm) deep, so it’s perfect for smaller spaces. It’s easy to assemble and features mounting holes that are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing. The wall-mount rack comes in a flat-pack which makes it easy to transport and reduces shipping costs.
Free up space
You can mount the open-frame rack where space is limited, such as on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.
Keep your equipment cool and accessible
By having an open frame the server rack provides passive cooling to equipment. Additionally, the open frame provides easy access and configurability to your equipment, allowing you to maximize productivity.
The RK12WALLO is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Hardware | |
Wallmountable | Yes |
Packaging Information | |
Shipping (Package) Weight | 11 kg [24.3 lb] |
Performance | |
Weight Capacity (Stationary) | 90 kg [198.9 lb] |
Physical Characteristics | |
Color | Black |
Enclosure Type | Heavy Duty Steel |
External Depth | 30.5 cm [12 in] |
External Height | 64.1 cm [25.2 in] |
External Width | 50.4 cm [19.8 in] |
Internal Depth | 29.2 cm [11.5 in] |
Internal Height | 53.4 cm [21 in] |
Internal Width | 45 cm [17.7 in] |
Maximum Mounting Depth | 30.5 cm [12 in] |
Product Height | 64.1 cm [25.2 in] |
Product Length | 30.5 cm [12 in] |
Product Weight | 8.7 kg [19.1 lb] |
Product Width | 50.4 cm [19.8 in] |
What's in the Box | |
Included in Package | assembly screws |
horizontal brackets | |
instruction manual | |
M6 cage nuts | |
M6 screws | |
vertical rails | |
washers | |
Hardware | |
U Markings | Yes |
U Height | 12U |
Style | Wall-Mount |
Rack Type | 2-Post |
Number and Type of Included Cage Nuts | M6 |
Mounting Holes | Square |
Ladder Type | G-Shape |
Industry Standards | EIA-310-D |
Frame Type | Open Frame |
Fan(s) | No |
Cable Management | No |
Adjustable Mounting Rails | No |
