Startech Mount Your Server Or Networking Equipment Using This Adjustable 15u Wall-mount Network

SKU
257796
Brand
MPN
RK15WALLOA
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$286.00
Buy Now And Earn 286 Reward Points!

QUICK OVERVIEW

rack RK15WALLOA

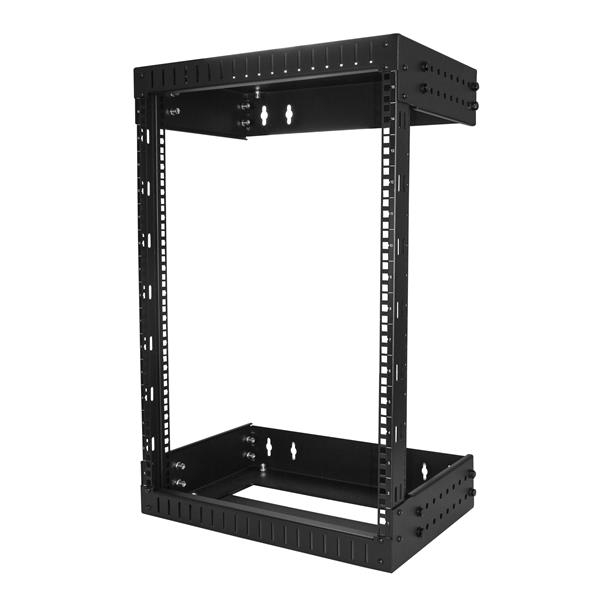

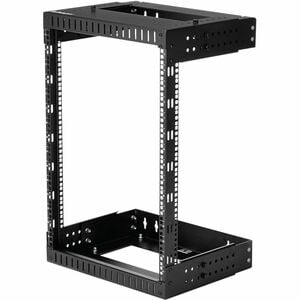

This open-frame wall-mount server rack provides 15U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb. (90 kg).

Easy, hassle-free installation

With adjustable depth to as low as 12 in. (30.4 cm) this network rack is perfect for smaller spaces. It’s easy to assemble and features wall-mounting holes that are spaced 12 and 16 in. apart, making it suitable for mounting on almost any wall, based on North American wall-frame stud-spacing standards. The wall-mount rack comes in a flat-pack, which makes it easy to transport and saves you money on shipping.

Accommodate larger devices

The open-frame rack adjusts from 12 to 20 in. (30.4 to 50.8 cm) to accommodate larger data, network, and telecommunication devices. The above-average depth also gives you the option to mount shelves and other accessories.

Free up space

When space is limited you can mount the open-frame rack on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.

Keep your equipment cool and accessible

The rack’s open frame design ensures passive cooling for your rack-mounted equipment. Additionally, the open frame provides easy access to your equipment and makes it easier to configure mounted devices, which saves you time.

The RK15WALLOA is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Hardware
U MarkingsYes
WallmountableYes
Packaging Information
Shipping (Package) Weight17.8 kg [39.3 lb]
Performance
External Depth RangeExternal Depth Range: 30.5 cm to 50.8 cm (12 inches to 20 inches)
Internal Depth RangeInternal Depth Range: 30 cm to 50.3 cm (11.8 inches to 19.8 inches)
Weight Capacity (Stationary)90 kg [198.9 lb]
Physical Characteristics
ColorBlack
Enclosure TypeHeavy Duty Steel
External Depth50.8 cm [20 in]
External Height78 cm [30.7 in]
External Width50.4 cm [19.8 in]
Internal Depth30 cm [11.8 in]
Internal Height68 cm [26.8 in]
Internal Width45 cm [17.7 in]
Maximum Mounting Depth50.3 cm [19.8 in]
Product Height78 cm [30.7 in]
Product Length50.8 cm [20 in]
Product Weight15.2 kg [33.5 lb]
Product Width50.4 cm [19.8 in]
What's in the Box
Included in Packageassembly screws
bolts
flat washers
front horizontal brackets
instruction manual
M6 cage nuts
M6 screws
plastic washers
rear horizontal brackets
vertical rails
Hardware
U Height15U
StyleWall-Mount
Rack Type2-Post
Number and Type of Included Cage NutsM6
Mounting HolesSquare
Ladder TypeL-Shape
Industry StandardsEIA-310-D
Frame TypeOpen Frame
Fan(s)No
Cable ManagementNo
Adjustable Mounting RailsNo
Additional Required Tools13 mm socket wrench
