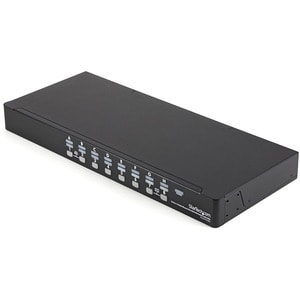

Startech 16 Port 1u Rackmount Usb Kvm Switch Kit With Osd And Cables Sv1631dusbuk
The SV1631DUSBUK 16 Port 1U Rack Mount USB KVM Switch Kit with OSD and Cables offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 16 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 16 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 16-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 136 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- For simple setup, the KVM cables to connect all 16 ports to servers and PCs are included in the box
- Maximum compatibility with USB keyboard and mouse combos, and wireless setups; this unique KVM extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
- Rugged rack mountable metal chassis allows for versatility and durability in almost any environment
Connector(s) | |
Console Interface(s) | USB Type-A (4 pin) USB 2.0 Female |
VGA (15 pin, High Density D-Sub) Female | |
Host Connectors | VGA (15 pin, High Density D-Sub) Female |
Environmental | |
Humidity | 0~80% RH |
Operating Temperature | 5°C to 40?C (41?F to 104?F) |
Storage Temperature | -20°C to 60?C (-4?F to 140?F) |
Hardware | |
Audio | No |
Cables Included | Yes |
Daisy-Chain | Yes |
KVM Ports | 16 |
Number of Monitors Supported | 1 |
PC Interface | USB |
PC Video Type | VGA |
Rack-Mountable | Yes |
Indicators | |
LED Indicators | Green - PC Online |
Green - Power | |
Red - PC Selected | |
Packaging Information | |
Shipping (Package) Weight | 6.7 kg [14.9 lb] |
Performance | |
Hot-Key Selection | Yes |
IP Control | No |
Maximum Analog Resolutions | 1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen) |
Maximum Cascaded Computers | 136 |
Maximum Number of Users | 1 |
On-Screen Display | Yes |
Port Selection Support | Push Button, Hotkeys, and OSD (On Screen Display) |
Wide Screen Supported | Yes |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel |
Product Depth | 190 mm [7.5 in] |
Product Height | 45 mm [1.8 in] |
Product Weight | 2390 g [84.4 oz] |
Product Width | 440 mm [17.3 in] |
Power | |
Center Tip Polarity | Positive |
Input Voltage | 110V-240V AC |
Output Current | 1A |
Output Voltage | 9 DC |
Power Consumption (In Watts) | 9 |
Power Source | AC Adapter Included |
Software | |
OS Compatibility | OS independent; No software or drivers required |
What's in the Box | |
Included in Package | 16-port USB KVM switch |
6ft 2-in-1 USB VGA KVM cables | |
foot pads | |
instruction manual | |
mounting brackets | |
screw kit | |
universal power adapter (NA/EU/UK/AU) |
