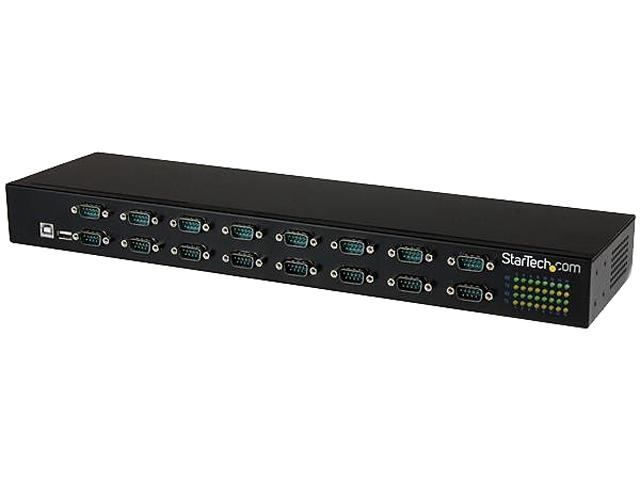

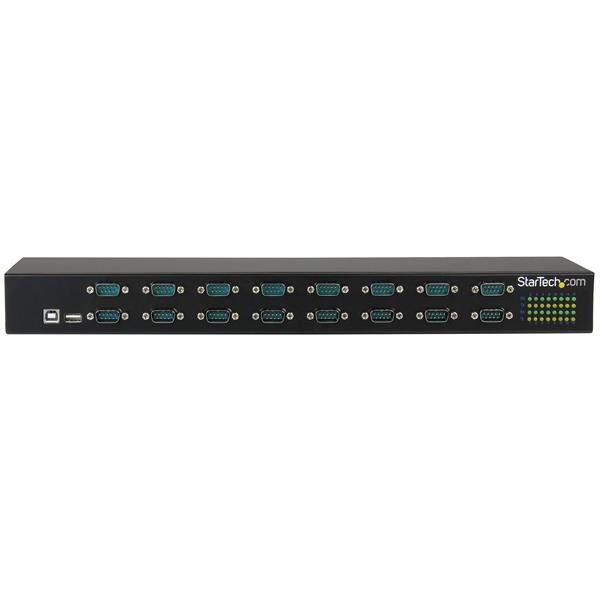

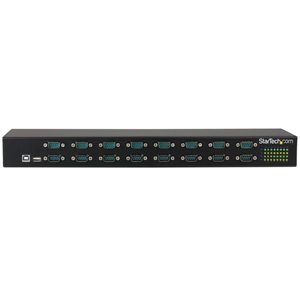

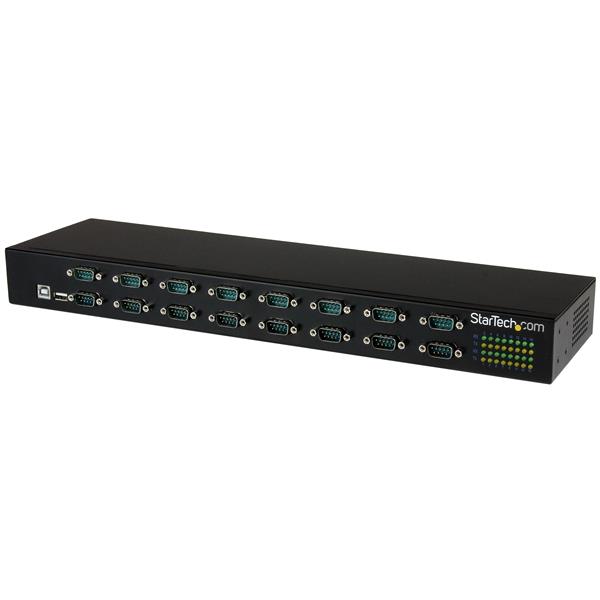

Startech 16 Port Usb To Serial Rs232 Adapter Hub Icusb23216fd
Convert a USB port into 16 RS232 serial ports in an industrial rack-mountable chassis - and daisy chain multiple hubs for a scalable solution
| .jpg) |
A scalable solution for changing needs This rack-mountable USB serial hub (FTDI) lets you add 16 serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a higher cost serial hub. Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including: industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems. |  |
 | Built-in convenience The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer. The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems. |
Meets the demands of industrial environments With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options. The ICUSB23216FD is backed by a StarTech.com 2-year warranty and free lifetime technical support. |  |
Applications
- Ideal for industrial automation on factory and manufacturing floors
- Provides full control of your server room serial components from a single device
- Control and monitoring of surveillance and security cameras and systems
- Self-service automated machines and kiosks (grocery, airport) to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- POS control of keyboards, cash drawers, receipt printers, card readers and card swipes, scales, and elevated displays on poles
- Bank teller workstations, in either full-profile or low-profile versions, to control serial devices such as cash drawers, card readers and card swipes, printers, keypads and pin pads, pen pads
| Connector(s) | |
| Connector Type(s) | DB-9 (9 pin, D-Sub) Male |
| USB B (4 pin) Female | |
| Environmental | |
| Humidity | 20~80% RH (Non-condensing) |
| Operating Temperature | -40?C to 85?C (-40?F to 185?F) |
| Storage Temperature | -65?C to 150?C (-85?F to 302?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | FTDI - FT232RL |
| Interface | Serial |
| Port Style | External Hub |
| Ports | 16 |
| Indicators | |
| LED Indicators | Data Receive |
| Data Transmit | |
| Packaging Information | |
| Shipping (Package) Weight | 2.3 kg [5.1 lb] |
| Performance | |
| Data Bits | 7, 8 |
| FIFO | 256 Bytes |
| Max Baud Rate | 921.6 Kbps |
| Maximum Data Transfer Rate | 480 Mbps |
| Parity | Odd, Even, Mark, Space, None |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 2 |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 45 mm [1.8 in] |
| Product Length | 430 mm [16.9 in] |
| Product Weight | 1550 g [54.7 oz] |
| Product Width | 120 mm [4.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.5 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 3 A |
| Output Voltage | 12 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 36 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows? CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 Linux 2.4.x to 4.11.x LTS Versions only |
| What's in the Box | |
| Included in Package | 16-port USB to RS232 hub |
| DIN rail mounting brackets | |
| DIN rail mounting screws | |
| driver CD | |
| nuts | |
| quick-start guide | |
| rack mounting brackets | |
| rack mounting screws | |
| terminal block plug | |
| universal power adapter (NA/JP, EU, UK, ANZ) | |
| USB cable | |
| washers | |
Here?s an easy and cost-efficient way to add RS232 serial capability to your industrial setting. This 16-port USB-to-serial adapter hub features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.
A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add 16 serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a higher cost serial hub.
Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including: industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.
The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.
Meets the demands of industrial environments
With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40?C to 85?C (-40?F to 185?F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.
The ICUSB23216FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
