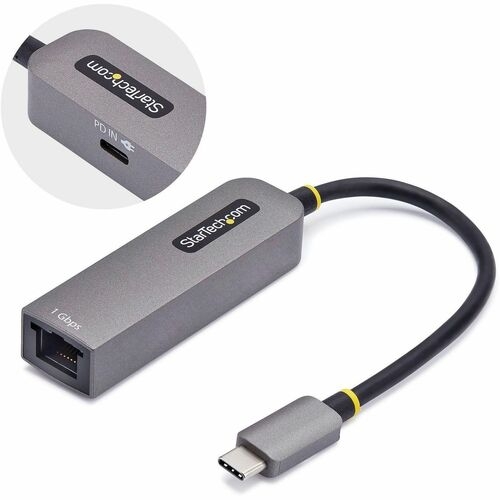

StarTech.com USB-C to Ethernet Adapter, 100W PD Pass-Through, NIC, USB 3.0 Type-C 1Gbps Multi Speed Network, USB 3.1 RJ45, Windows & Mac - USB-C to Ethernet Adapter securely connects to networks over CAT5e/RJ45/LAN; 100W PD pass-through; NIC; 10/100Mbps/
Add 1Gbps network access to laptops, tablets, and iPhones equipped with a USB-C port. This USB-C to Ethernet Adapter features a 100W PD pass-through port that allows you to connect a charger to the same USB-C port, enabling simultaneous Ethernet connection and device charging. Enable ethernet connection without losing access to the original USB-C port for charging or connecting additional peripherals; well-suited for devices with limited ports.
1 Gigabit Network Connection
This adapter supports both current and legacy Ethernet networks down to 10Mbps, making it ideal for providing a reliable network connection almost anywhere whether at home, work or while traveling. The Realtek chipset is broadly supported on new and older laptops enabling PXE capabilities to aid IT departments with provisioning and maintaining systems along with Wake-on-LAN (WoL) support. The adapter provides a wired connection that is faster and more secure than wireless, making it ideal for IT professionals.
Native Driver Support Makes Installation Easy
Simply plug this USB-C to Ethernet adapter into the USB port on a laptop and connect to a network. The network adapter Realtek chipset provides native driver support for Windows (10/11, ARM supported) Macbooks (macOS), Chromebooks (ChromeOS), Snapdragon, Linux, iPhones, and tablets. Any Windows operating systems without the driver will be automatically prompted to download the software directly from the adapter, ensuring quick and effective installation with no Internet access required.
- 100W CHARGING: 100W PD pass-through port allows you to connect a charger to the same USB-C port, enabling simultaneous Ethernet connection and device charging; Devices with limited USB-C ports can share a port without an additional hub
- BROAD COMPATIBILITY: Auto-installs on most operating systems including Windows 7 and up, Linux LTS Kernel 4.19+ and up, MacOS/iOS/ChromeOS; Works with MacBooks, Chromebooks and all hardware platforms, including Intel, AMD, ARM (Snapdragon) & Apple Silicon
- 1G OVER CAT5E: Add 1Gbps network access to laptops/tablets/iPhones with a Type-C port; Enables ethernet connection without losing access to the original USB-C port for charging/connecting additional peripherals; Ideal for devices with limited ports
- APPLICATIONS: Well-suited replacement for broken ethernet ports on laptops; Provides a wired connection that is faster and more secure than wireless for home, work and travel; Efficiently provision and maintain laptops with WoL & PXE
- TECH SPECS: USB-C 3.2 Gen 1 (5Gbps); 1x RJ45; 6in (15cm) Attached Cable; 10/100Mbps & 1Gbps; Realtek Chipset; 9K Jumbo Frames; WoL; VLAN; PXE Boot support; USB Bus Powered; Thunderbolt Compatible
Media & Performance | |
Media Type Supported | Twisted Pair |
Network & Communication | |
Network Technology | 10/100/1000Base-T |
Environmental Conditions | |
Minimum Operating Humidity (Non-condensing) | 10% |
Maximum Operating Humidity (Non-condensing) | 85% |
Interfaces/Ports | |
Host Interface | USB 3.2 (Gen 1) Type C |
Number of Network (RJ-45) Ports | 1 |
USB Standard | USB 3.2 (Gen 1) Type C |
Total Number of Ports | 1 |
General Information | |
Product Type | Gigabit Ethernet Adapter |
Manufacturer Part Number | 1GPD3-USB-C-ETHERNET |
Manufacturer Website Address | http://www.startech.com/au |
Packaged Quantity | 1 |
Manufacturer | StarTech.com |
Product Name | Gigabit Ethernet Adapter |
Brand Name | StarTech.com |
Physical Characteristics | |
Weight (Approximate) | 25.5 g |
Form Factor | Portable |
Height | 15.2 mm |
Width | 0 µm |
Depth | 20.3 mm |
Product Color | Space Gray |
Color Family | Grey |
Technical Information | |
Features | Jumbo Frames Support |
Promiscuous Mode | |
VLAN Support |
VLAN Tagging | |
Wake on LAN (WOL) | |
PXE Support | |
Chipset Manufacturer | Realtek |
Chipset Model | RTL8153B |
Miscellaneous | |
Application/Usage | Network |
Device Supported | iPhone |
Desktop Computer | |
Tablet | |
Notebook | |
Operating System Compatibility | Mac OS 12 Monterey |
Mac OS X 10.11 El Capitan | |
MacOS 10.13 High Sierra | |
MacOS 10.14 Mojave | |
macOS Big Sur 11.0 | |
macOS Sonoma 14.0 | |
macOS Ventura 13.0 | |
Windows | |
Windows 10 | |
Windows 11 | |
Windows 7 | |
Windows 8 | |
Windows Server 2008 R2 | |
Windows Server 2012 R2 | |
Windows Server 2016 | |
Windows Server 2019 | |
Windows Server 2022 | |
Mac OS | |
Linux Kernel 2.4.20 | |
Linux | |
ChromeOS | |
Apple iOS | |
Android | |
macOS 10.15 Catalina | |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Restriction of Hazardous Substances (RoHS) |
