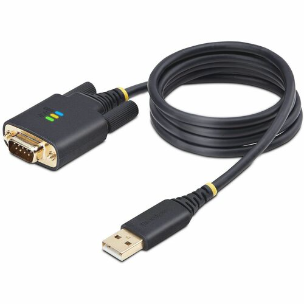

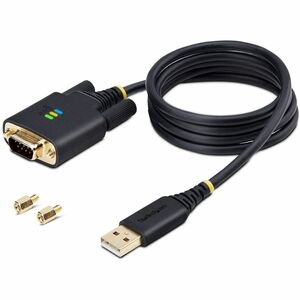

StarTech.com 3ft (1m) USB to Serial Adapter Cable, COM Retention, FTDI IC, DB9 RS232, Interchangeable DB9 Screws/Nuts, Windows/macOS/Linux - Add a DB9 RS-232 serial port to a desktop/laptop using a USB-A port; Interchangeable Screws/Nuts; DB9 screws p 1P3
StarTech.com 3ft (1m) USB to Serial Adapter Cable, COM Retention, FTDI IC, DB9 RS232, Interchangeable DB9 Screws/Nuts, Windows/macOS/Linux - Add a DB9 RS-232 serial port to a desktop/laptop using a USB-A port; Interchangeable Screws/Nuts; DB9 screws pre-installed; DB9 Nuts included for device/cable compatibility; Rugged TPE housing; Copper shielding; LED Indicators; Windows/macOS/Linux
Data transmission and reception LED indicators on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.
Seamless Connectivity
The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions and macOS 10.15 and above. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.
Built To Last
The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity.
- INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to a serial device using the pre-installed DB9 screws, or install the included DB9 Nuts for compatibility with serial peripheral devices/cables; Add a DB9 RS-232 port to a computer, using a USB-A port
- LED INDICATORS: Transmit and Receive LED indicators offer real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop
- COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign if the cable is disconnected/reconnected or if the system is rebooted
- BUILD QUALITY: Solid one-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance the serial adapters reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors
- TECH SPECS: 3.3ft (1m) Cable Length; FTDI FT232R Chipset; Max Baud Rate: 921.6Kbps; 128 Byte Rx and 256 Byte Tx FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
| Cable Length | 91.44 cm |
| Data Transfer Rate | 480 Mbit/s |
| Device Supported | Computer |
| Barcode Scanner | |
| Monitor | |
| Receipt Printer | |
| Sensor | |
| Desktop Computer | |
| Notebook | |
| Peripheral Device | |
| POS Device | |
| LED | |
| Digital Signage | |
| Shielding | Yes |
| Features | LED Indicator |
| ESD Protection | |
| EMI/RF Protection | |
| Rugged | |
| Molded | |
| Cable Type | Serial/USB |
| Connector Type on First End | USB 2.0 Type A - Male |
| Connector Type on Second End | DB-9 RS-232 - Male |
| Connector Plating | Gold |
| Connector on First End Details | 1 x USB 2.0 Type A - Male |
| Connector on Second End Details | 1 x 9-Pin DB-9 RS-232 - Male |
| Material Details | Thermoplastic Elastomer (TPE) - Housing |
| Weight (Approximate) | 53.9 g |
| Shielding Material | Copper |
| Product Color | Black |
| Color Family | Black |
| Product Material | Thermoplastic Elastomer (TPE) |
| Product Type | Data Transfer Cable |
| Manufacturer Part Number | 1P3FFCBUSBSERIAL |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Serial/USB Data Transfer Cable |
| Brand Name | StarTech.com |
