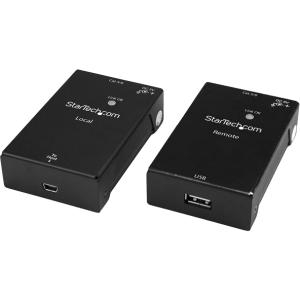

Startech 1 Port Usb 2.0 Over Cat5 Or Cat6 Extender Kit - 165ft (50m) - Usb Extender - Usb To Ethernet

SKU
242966
Brand
MPN
USB2001EXTV
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$254.00
Buy Now And Earn 254 Reward Points!

QUICK OVERVIEW

Extender - Cost-Effective USB 2.0 Extend USB2001EXTV

Connect a USB 2.0 device to your computer over long distances, using this single-port USB extender. Here's a versatile and cost-effective USB 2.0 extender. It gives you the freedom you need to place your USB device further away, making it perfect for the homes, offices, classrooms, and many other environments. Now, you can easily access and use your USB 2.0 device in a remote location, up to 165 ft. (50 m) away, using Cat5 or Cat6 cable.

Eliminate hassle and smash distance limitations

This USB extender overcomes the 16 ft. cable length limitations of traditional USB 2.0 cables, so you can create a more efficient, more flexible workspace.

It's an inexpensive USB-to-Ethernet solution that's ideal for virtually any USB 2.0 device. You can connect a webcam at the back of a classroom, or a printer in another room at the office, all up to 50 m away from your host computer.

Plus, with a power adapter included for the remote unit, you can connect power-hungry USB devices such as external hard drives.

Rugged durability and peace of mind

Unlike other USB extenders that feature a plastic housing, this extender offers a metal casing that offers rugged durability. Whether the extender is installed in a permanent location, or will be moved from place to place, it gives you the peace of mind that your USB peripheral remains connected and accessible, right where you need it.

Supports any operating system as well as older devices

The USB 2.0-over-Cat5-or-Cat6 extender is OS independent, so it supports a variety of operating systems. Setup is easy with no additional drivers or software required, and the extender is backward compatible with USB 1.1 and 1.0 peripherals.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connector(s)
Local Unit ConnectorsRJ-45 Female
USB Mini-B (5 pin) Female
Remote Unit ConnectorsRJ-45 Female
USB Type-A (4 pin) USB 2.0 Female
Environmental
Humidity0~80% RH (Non-condensing)
Operating Temperature0?C to 40?C (32?F to 104?F)
Storage Temperature-10?C to 60?C (14?F to 140?F)
Hardware
CablingCat 5 UTP or better
Ports1
Indicators
LED IndicatorsPower / Link
Packaging Information
Shipping (Package) Weight717 g [25.3 oz]
Performance
Max Distance50 m / 165 ft
Maximum Data Transfer Rate480Mbps
MTBF72,000 Hours
Physical Characteristics
ColorBlack
Enclosure TypeSteel
Product Height22 mm [0.9 in]
Product Length80 mm [3.1 in]
Product Weight304 g [10.7 oz]
Product Width52 mm [2 in]
Power
Center Tip PolarityPositive
Input Current0.6 A
Input Voltage100 ~ 240 AC
Output Current2 A
Output Voltage5 DC
Plug TypeN
Power Consumption (In Watts)10
Power SourceAC Adapter Included
Software
OS CompatibilityOS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable RequirementsA host computer with an available USB-A port (USB Type-A)
Terminated RJ45 Cat5e or better Ethernet cable
What's in the Box
Included in Package24 in [60 cm] USB 2.0 cable
63 in [160 cm] RJ45 cable
quick-start guide
rubber feet
universal power adapter (NA/JP, UK, EU, ANZ)
USB 2.0 extender local unit
USB 2.0 extender remote unit
