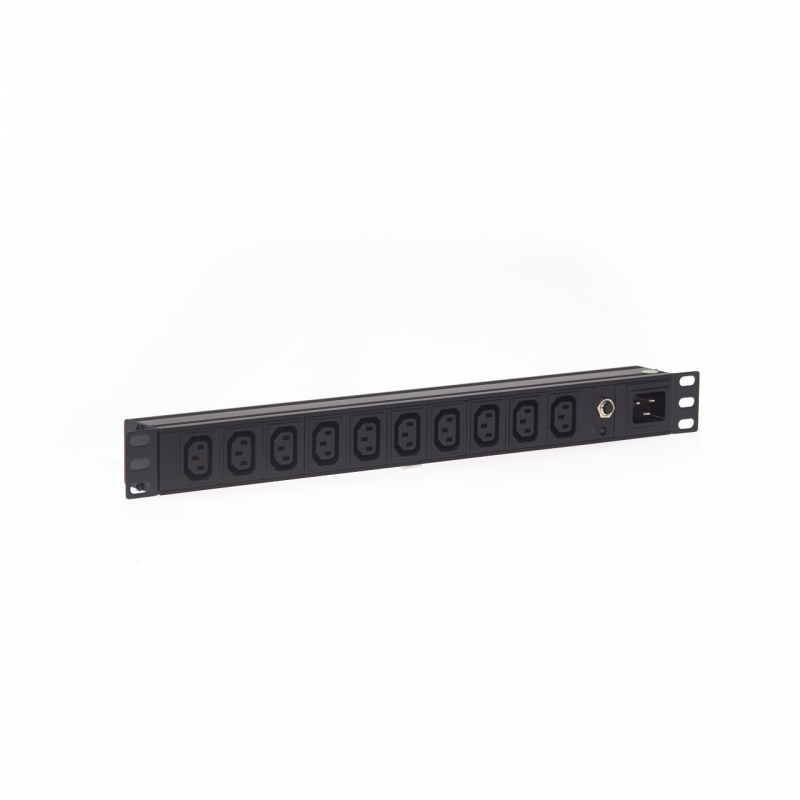

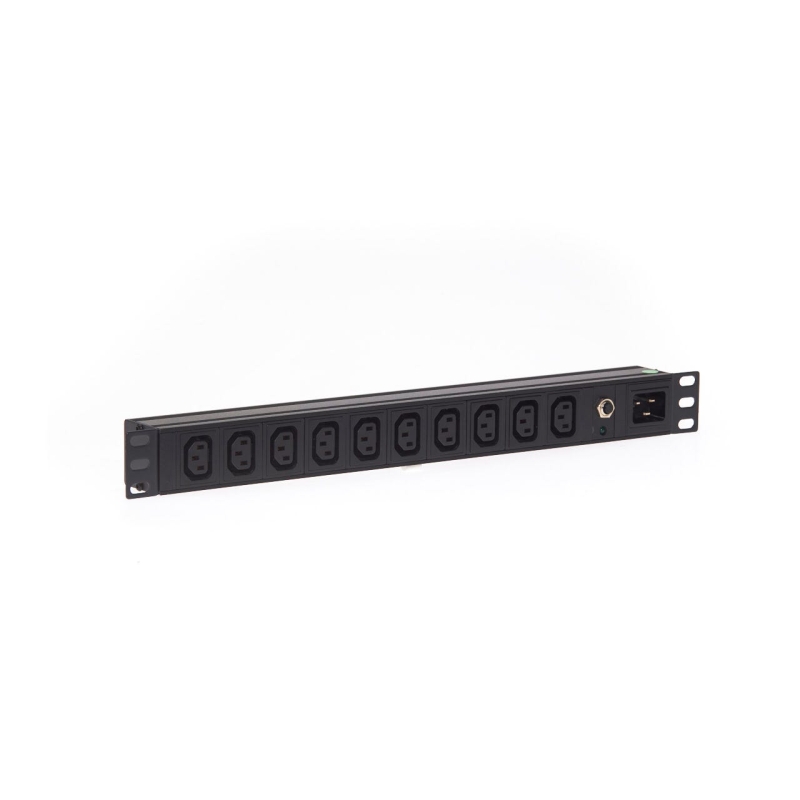

1RU 10 Way C13 Horizontal Rack Mounted PDU Power Rail with IEC C20 16A Inlet

Designed to manage power supply within 19-inch server racks, this PDU (Power Distribution Unit) conveniently provides up to 10 outlets for equipment within a network cabinet. Mounting holes are located on both ends of the unit making it suitable for horizontal mounting on the inside of the server cabinet. There are rear key hole mounting buttons giving you the option of vertical mounting when used in conjunction with 4Cabling's Vertical PDU Mounting Panel.

FEATURES

• Includes 2m C19 to Mains 10A Power Cord
• Rear vertical key hole mounting buttons
• Mounting holes at both ends of unit
• Can be mounted both horizontally, or vertically with the addition of a PDU Mounting Rail
• Overload protection
• Colour: Black
• Package includes: 4 x sets of cage nuts

SPECIFICATIONS

• Phase: Single Phase
• Max. Output Power: 4000W
• Amps: 16A
• Volts: 220-250V
• Frequency: 50-60Hz
• Plug type: IEC C20
• Outlets: 10 x C13
• Dimensions (mm): 482.6(w) x 45(h) x 45(d)
• Rack Size:1RU
• Cord length (m): 2m
• Warranty: 3-year Limited

APPLICATIONS

• Data Centres
• Industrial Environments
• Network Closets
• VoIP Phone Systems
