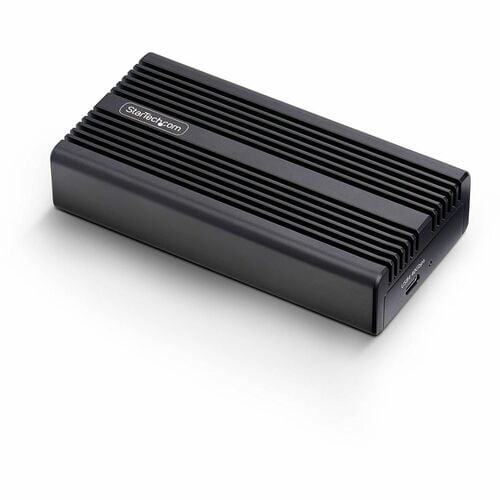

StarTech.com USB4 M.2 NVMe Enclosure, 40Gbps, External USB-C/Thunderbolt NVMe SSD Enclosure, B+M/M-Key - Ultra-fast USB4 NVMe Enclosure Supports Up To 40Gbps; Thunderbolt 5/4/3/USB-C Compatible; Heat-dissipating Aluminum Heatsink Case W/thermal Pad; Supp
SKU
434329
Brand
MPN
1USB4-NVME-ENCLOSURE
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $166.00 Regular Price $192.00
Buy Now And Earn 166 Reward Points!
QUICK OVERVIEW
1USB4-NVME-ENCLOSURE
Turn your PCIe M.2 NVMe SSD into a fast and highly portable USB-C external storage solution. This NVMe enclosure supports USB4 (40Gbps), delivering read/write speeds up to 3,800 MB/s. Ideal for power users handling large media files, managing data across devices, or performing OS imaging, data recovery, and disk management.
Versatile USB-C & Thunderbolt Support
Built for current and next-gen storage, this USB4 enclosure connects M-Key or B+M Key M.2 NVMe SSDs (2230/2242/2260/2280) to USB4, Thunderbolt 5/4/3, or USB 3.2 hosts. It supports PCIe Gen 4x4 NVMe drives and offers native, driverless compatibility with Windows, macOS, and Linux. Seamless interoperability with USB-C and Thunderbolt systems makes it ideal for fast backups and high-volume data transfers.
Robust Heat Dissipation
The anodized aluminum housing features a heatsink-style cover design with a high-efficiency thermal pad to enable passive cooling during sustained workloads. The fanless construction allows for silent operation while maintaining consistent transfer rates during intensive tasks such as disk imaging or data capture.
Compact and Durable
The USB4 NVMe Enclosure's compact footprint fits comfortably in a technician's toolkit or laptop bag. The rugged aluminum housing not only helps with heat dissipation but also protects the SSD from physical damage during transport or deployment in demanding environments.
Versatile USB-C & Thunderbolt Support
Built for current and next-gen storage, this USB4 enclosure connects M-Key or B+M Key M.2 NVMe SSDs (2230/2242/2260/2280) to USB4, Thunderbolt 5/4/3, or USB 3.2 hosts. It supports PCIe Gen 4x4 NVMe drives and offers native, driverless compatibility with Windows, macOS, and Linux. Seamless interoperability with USB-C and Thunderbolt systems makes it ideal for fast backups and high-volume data transfers.
Robust Heat Dissipation
The anodized aluminum housing features a heatsink-style cover design with a high-efficiency thermal pad to enable passive cooling during sustained workloads. The fanless construction allows for silent operation while maintaining consistent transfer rates during intensive tasks such as disk imaging or data capture.
Compact and Durable
The USB4 NVMe Enclosure's compact footprint fits comfortably in a technician's toolkit or laptop bag. The rugged aluminum housing not only helps with heat dissipation but also protects the SSD from physical damage during transport or deployment in demanding environments.
| Host Interface | USB4 |
| Product Type | Drive Enclosure |
| Form Factor | Portable |
| Brand Name | StarTech.com |
| Number of Total Expansion Bays | 1 |
| Drive Interface | PCI Express NVMe 4.0 x4, M.2, PCI Express NVMe 4.0 |
| TAA Compliant | Yes |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
| Indicators & Controls | • 1 - Solid LED: Drive detected • Quick-Flashing LED: Read/Write Activity |
| Manufacturer Part Number | 1USB4-NVME-ENCLOSURE |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | M.2 NVMe Enclosure |
| Number of USB Ports | 1 |
| Package Contents | • M.2 NVMe Enclosure • 1 x Thermal Pad (Pre-installed) • 1 x USB4 Cable • 1 x Philips Head Screwdriver • 1 x Quick-Start Guide |
| Country of Origin | Vietnam |
| UASP Support | Yes |
| Weight (Approximate) | 340 g |
| Height | 27.9 mm |
| Width | 66 mm |
| Depth | 124.5 mm |
| Cooling Fan | No |
| Product Material | Aluminium |
| Operating System Supported | Linux, Mac OS, Windows |
| Maximum Data Transfer Rate | 40 Gbit/s |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | 0 |
| Shipping Dimensions | Height 3.5, Width 11.5, Length 19.2, Shipping Weight 0.48 KG |
StarTech.com USB4 M.2 NVMe Enclosure, 40Gbps, External USB-C/Thunderbolt NVMe SSD Enclosure, B+M/M-Key - Ultra-fast USB4 NVMe enclosure supports up to 40Gbps; Thunderbolt 5/4/3/USB-C Compatible; Heat-dissipating aluminum heatsink case w/thermal pad; Supports B+M/M-Key 2230/2242/2260/2280 M.2 NVMe (PCIe 4.0 x4); NOTE: M.2 SATA is not supported
