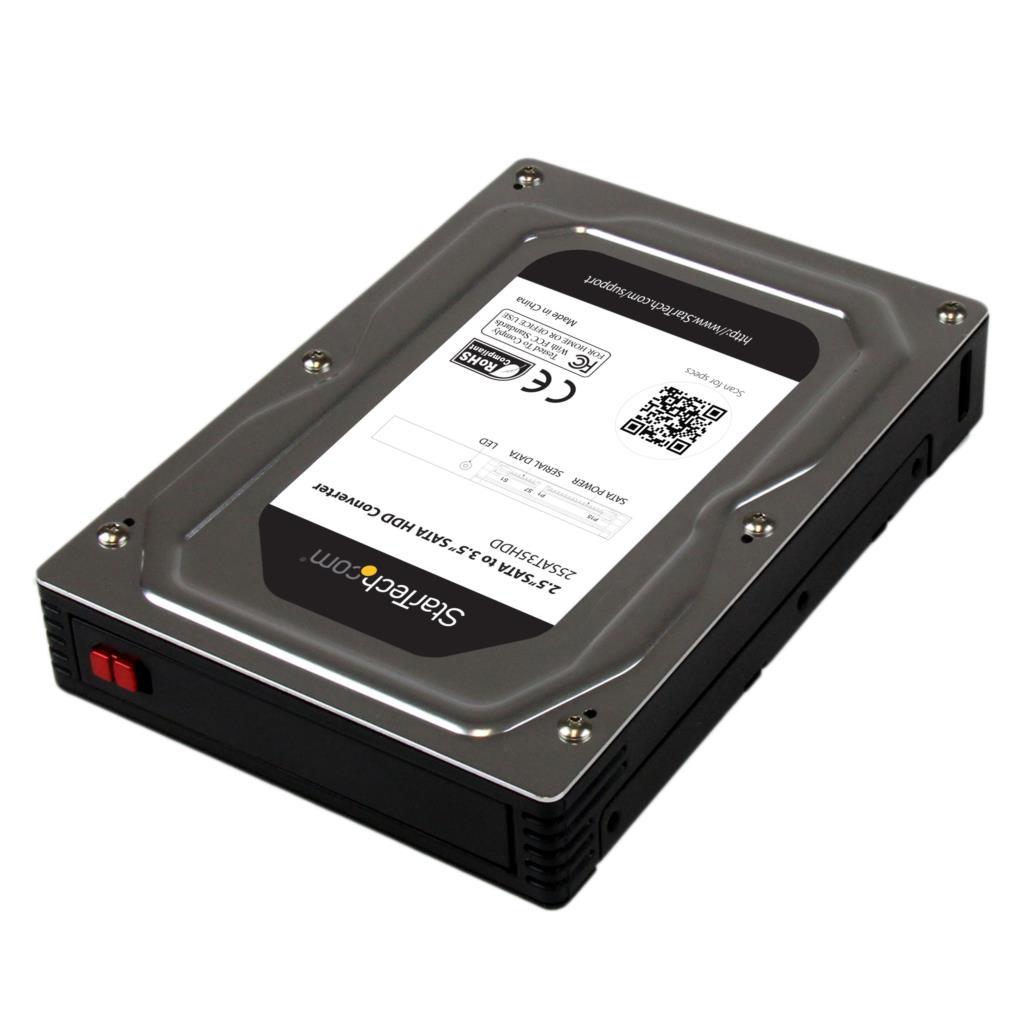

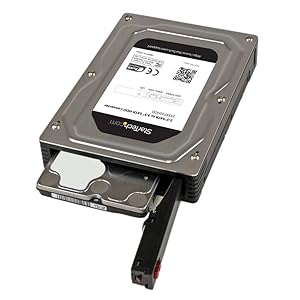

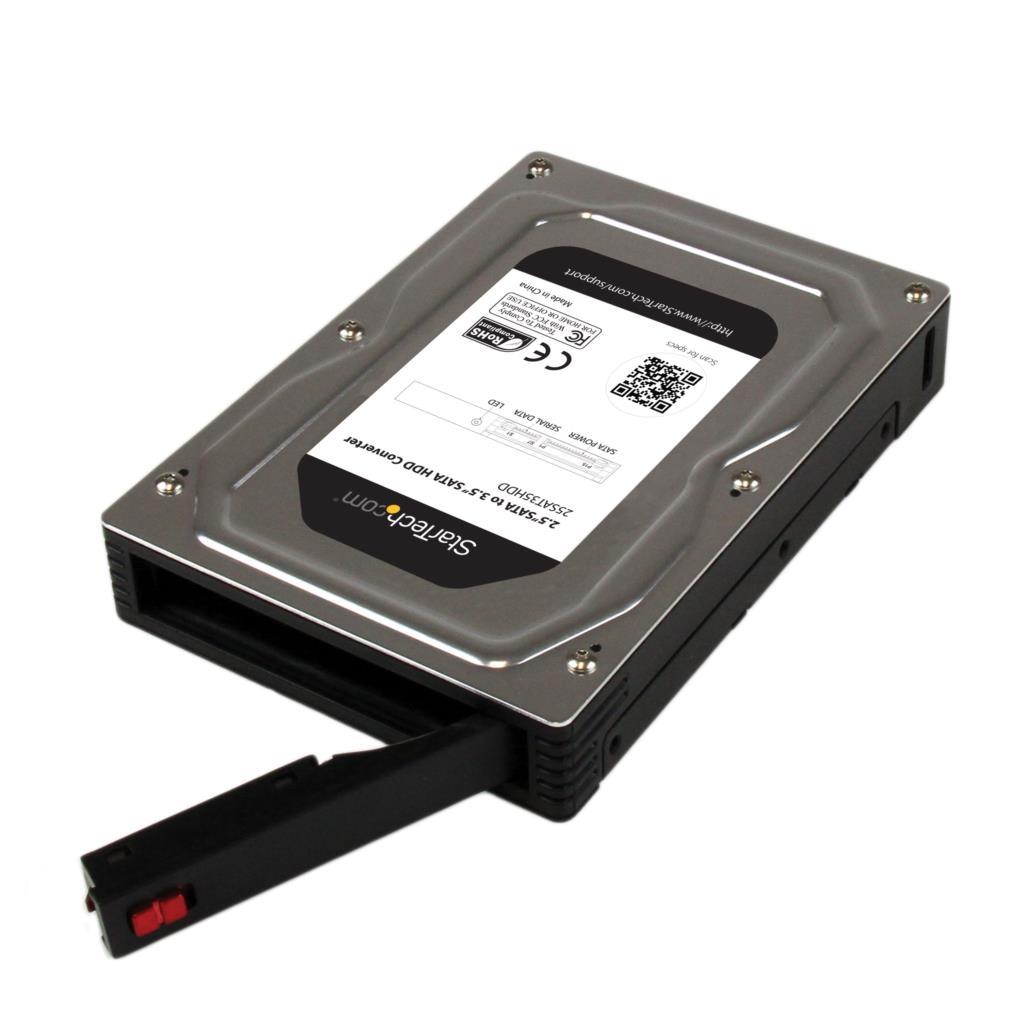

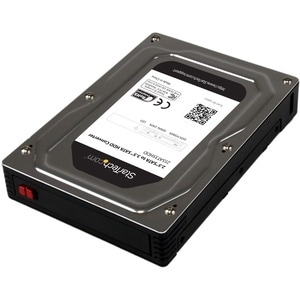

Startech 2.5 To 3.5 Sata Aluminum Hard Drive Adapter Enclosure With Ssd/ Hdd Height Up To 12.5mm
QUICK OVERVIEW
The adapter enclosure lets you substitute a 3.5" hard drive for a 2.5" SSD/HDD in any application that would typically require a 3.5" drive, such as desktop chassis, backplane, or docking station. The enclosure has the same dimensions as a standard 3.5" hard drive, including mounting points, and SATA connector locations.
With support for drives up to 12.5mm in height, and high-capacity SATA I/II/III drives (tested up to 1TB) this HDD adapter ensures compatibility with virtually any 2.5" SATA hard drive or solid state drive.
The 25SAT35HDD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Seamless 2.5" SSD/HDD integration with standard 3.5" hard drive dimensions
- Maximum drive compatibility with support for SSDs/HDDs up to 12.5mm in height
- Improve the performance speed of any 3.5" hard drive application by adapting a 2.5in solid state drive
Applications
- Replace your 3.5" hard drives with same-size SSDs
- Install a 2.5" SATA HDD/SSD into any 3.5" hard drive bay, such as a desktop chassis, backplane kit, or docking station
- Repurpose unused laptop hard drives to work with your desktop computer, or as a hot-swap storage solution
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) |
| Host Connectors | SATA Data & Power Combo (7+15 pin) |
| Environmental | |
| Humidity | 5% - 85% RH |
| Operating Temperature | 5?C to 55?C (32?F to 131?F) |
| Storage Temperature | 5?C to 55?C (32?F to 131?F) |
| Hardware | |
| Drive Installation | Removable |
| Drive Size | 2.5in |
| Interface | SATA |
| Number of 2.5 inch bays | 1 |
| Number of Drives | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0.3 kg [0.6 lb] |
| Performance | |
| Max Drive Capacity | Currently tested with up to 1TB 7200 RPM hard drives |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Enclosure Type | Aluminum and Plastic |
| Max Drive Height | 12.5 mm [0.5 in] |
| Product Height | 36 mm [1.4 in] |
| Product Length | 146 mm [5.7 in] |
| Product Weight | 260 g [9.2 oz] |
| Product Width | 101.5 mm [4 in] |

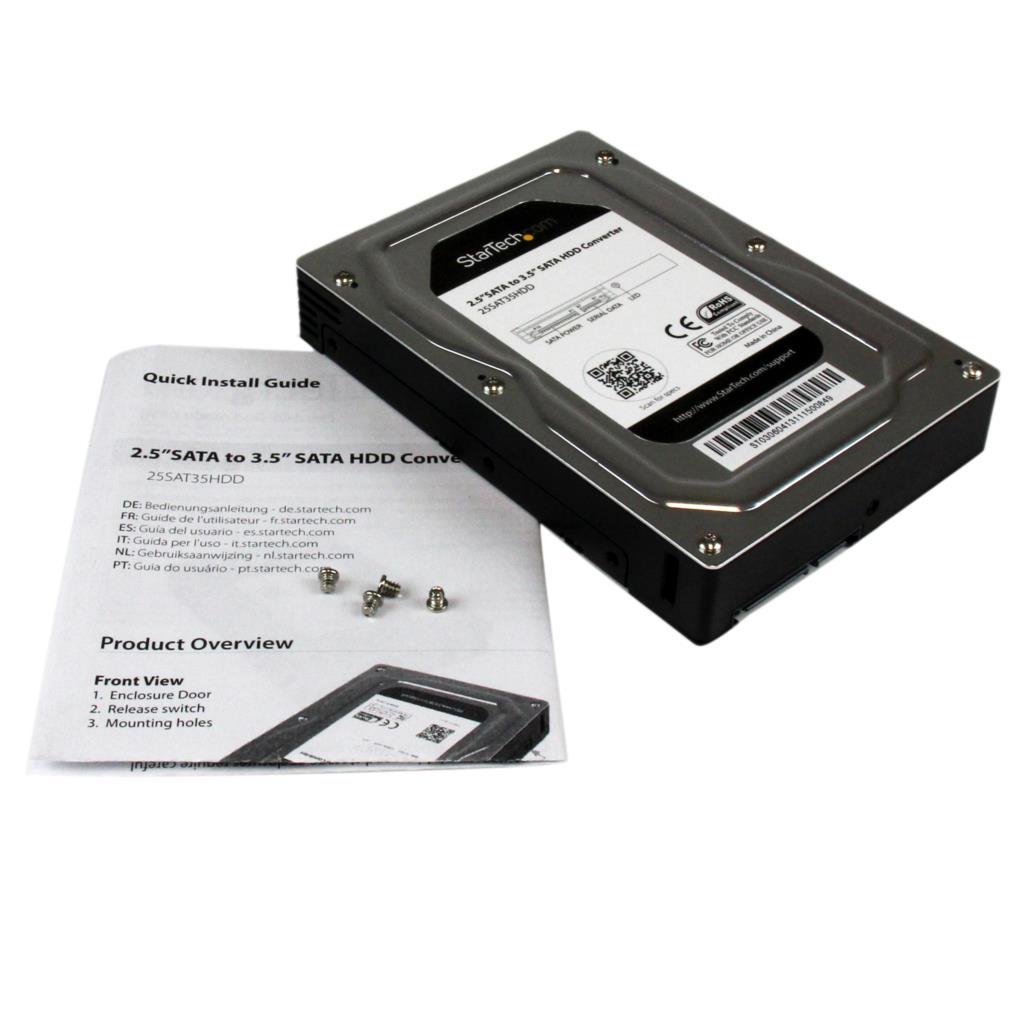

| What's in the Box | |
| Included in Package | 2.5? to 3.5? SATA HDD/SSD Enclosure |
| Install Guide | |
| Screw kit | |
The 25SAT35HDD 2.5" to 3.5" hard drive adapter enclosure turns a 2.5" SATA hard drive (HDD) or solid state drive (SSD) into a 3.5" drive.
The adapter enclosure lets you substitute a 3.5" hard drive for a 2.5" SSD/HDD in any application that would typically require a 3.5" drive, such as desktop chassis, backplane, or docking station. The enclosure has the same dimensions as a standard 3.5" hard drive, including mounting points, and SATA connector locations.
With support for drives up to 12.5mm in height, and high-capacity SATA I/II/III drives (tested up to 1TB) this HDD adapter ensures compatibility with virtually any 2.5" SATA hard drive or solid state drive.
The 25SAT35HDD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
