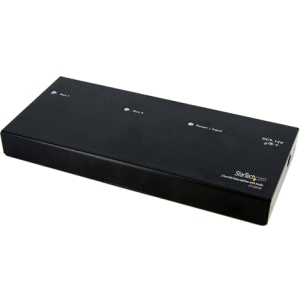

Startech 2 Port High Speed Hdmi Video Splitter And Signal Amplifier St122hdmi2
Split an HDMI audio and video signal to two displays simultaneously. The ST122HDMI2 2-Port High Speed HDMI Splitter and Signal Amplifier lets you share a single HDMI source signal with audio between two HDMI or DVI (using HDMI to DVI adapter - see Accessories) enabled displays simultaneously.
Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 50ft (15m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.
The HDMI splitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMI output devices such as Blu-ray players or desktop/laptop computers.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
| Performance | |
| Maximum Digital Resolutions | HDTV 1080p PC Resolution 1920x1200 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 25 mm [1 in] |
| Product Length | 183 mm [7.2 in] |
| Product Weight | 380 g [13.4 oz] |
| Product Width | 80 mm [3.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.6A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.5A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 13 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | HDMI splitter |
| instruction manual | |
| universal power adapter (NA / EU / UK / AU) | |
| Performance | |
| Maximum Cable Length | 15 m [49.2 ft] |
| Packaging Information | |
| Shipping (Package) Weight | 0.7 kg [1.5 lb] |
| Indicators | |
| LED Indicators | Port Power/Input - Green indicates connection, Blue indicates activity |
| Hardware | |
| Ports | 2 |
| Audio | Yes |
| Environmental | |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Humidity | 0~80% RH |
| Connector(s) | |
| Connector B | HDMI (19 pin) Female |
| 3.5 mm Mini-Jack (3 Position) Female | |
| Connector A | HDMI (19 pin) Female |
| 3.5 mm Mini-Jack (3 Position) Female | |
The ST122HDMI2 2-Port High Speed HDMI® Splitter and Signal Amplifier lets you share a single HDMI source signal with audio between two HDMI or DVI (using HDMI to DVI adapter - see Accessories) enabled displays simultaneously.
Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 50ft (15m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.
The HDMI splitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMI output devices such as Blu-ray players or desktop/laptop computers.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
