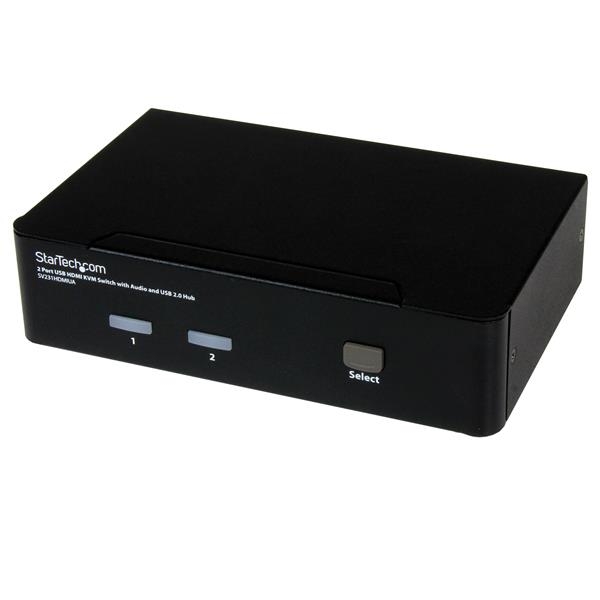

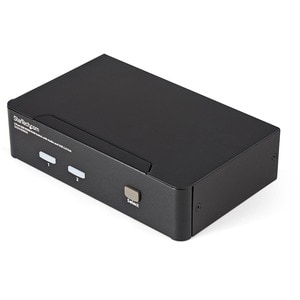

Startech 2 Port Usb Hdmi Kvm Switch With Audio And Usb 2.0 Hub Sv231hdmiua
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
| Connector(s) | |
| Console Interface(s) | 3.5 mm Mini-Jack (3 Position) Female |
| HDMI (19 pin) Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| Host Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| HDMI (19 pin) Female | |
| USB B (4 pin) Female | |
| Environmental | |
| Humidity | 0~80% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cables Included | No |
| Daisy-Chain | No |
| KVM Ports | 2 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | HDMI |
| Rack-Mountable | No |
| Indicators | |
| LED Indicators | Online/Active (Green - Connected PC is online, Red - PC is selected) |
| Packaging Information | |
| Shipping (Package) Weight | 1.1 kg [2.5 lb] |
| Performance | |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Digital Resolutions | 1920 x 1200 |
| Maximum Number of Users | 1 |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Depth | 70 mm [2.8 in] |
| Product Height | 40 mm [1.6 in] |
| Product Weight | 800 g [28.2 oz] |
| Product Width | 124.8 mm [4.9 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8A |
| Input Voltage | 110V-240V AC |
| Output Current | 1.5A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 2 Port HDMI KVM |
| Package of Rubber feet | |
| Power Adapter | |
| User Manual | |
| Marketing Text | The SV231HDMIUA 2-port USB HDMI KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone). |
| PI Date | Jul 2017 |
| Brand Name | Startech |
| Manufacturer Web Site | http://www.startech.com |
| Product Type | KVM Switch |
| No. of Users | 1 |
| No. of Ports | 2 |
| Graphics Resolution Supported | 1920 x 1200 |
| Enclosure | Steel |
| Depth (mm) | 70.0 |
| Height (mm) | 40.0 |
| Width (mm) | 124.8 |
| Weight (Kg) | 0.8 |
| Color | Black |
| Operating Temperature | 0 to 40°C |
| Power | 110 - 240Volt |
| Power Consumption | 18Watt |
| Product Includes | * 1 - 2 Port HDMI KVM * 1 - Package of Rubber feet * 1 - Power Adapter * 1 - User Manual |
| Compliance Standards | * RoHS |
| Other Features | * PC Interface- USB |
| Warranty Information | 3 Year |
