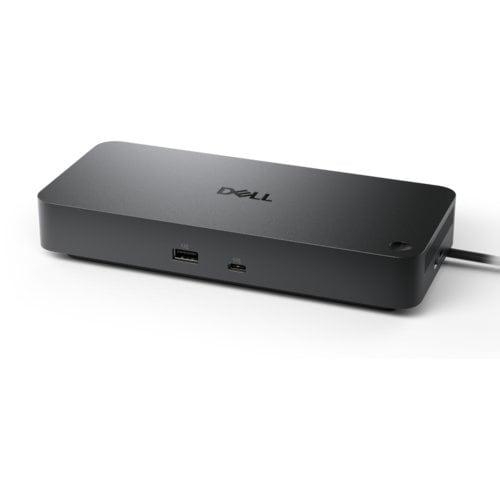

Dell Pro Dock WD25 - 100W Power Delivery - 2 x DP, 1 x HDMI, 4 x USB-A, 2 x USB-C - 2.5GbE RJ-45 - 3 Year Warranty 210-BRMB
Fuel your productivity
Gain the versatility to create your ideal workspace with a dock featuring 6 USB ports, support for 4 displays and driving up to 100W of power delivery to the latest Dell AI PCs for optimal productivity.
More manageable
Keep your dock up to date and work without interruption.
Improved manageability
Manage your dock from the Dell Device Management Console by utilising Dell Display and Peripheral Manager installed on your PC.
Simplify firmware updates
Reduce IT complexity by deploying a single firmware file across workspaces.
Minimise end-user disruption with silent firmware updates that are executed upon dock disconnection.
Work with confidence
Enhance your docking experience with universally compatible features including MAC Address Pass-Through and Power Button Sync, for a better docking experience across brands.
Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable[2] that can be routed left or right.
Designed for sustainability
The Dell Pro Dock is built with post-consumer recycled materials and packaged with recycled or renewable packaging, and offers less power consumption on standby mode.
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Miscellaneous | |
| Package Contents |
|
| Kensington Security Slot | Yes |
| Power Description | |
| Maximum Power Supply Wattage | 130 W |
| Power Source Type | Power Adapter |
| Physical Characteristics | |
| Weight (Approximate) | 550 g |
| Height | 205 mm |
| Width | 90 mm |
| Depth | 35.3 mm |
| Software | |
| Operating System Supported | Windows 11 |
| Windows 10 | |
| Ubuntu | |
| Red Hat Enterprise Linux | |
| macOS | |
| ChromeOS | |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | 210BRMB |
| Manufacturer Website Address | http://www.dell.com.au |
| Manufacturer | Dell Technologies |
| Product Model | WD25 |
| Product Name | Pro Dock - WD25 |
| Product Line | Pro Dock |
| Brand Name | Dell |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of HDMI Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of DisplayPorts | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4, 1 x USB-C 3.2 Gen 2 (10 Gbps) |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 3 |
| Number of USB Type-A Ports | 4 |
| USB Type-A | Yes |
| Technical Information | |
| Device Supported | Desktop PC |
| Notebook | |
| Connectivity Technology | Wired |
| Features | Power Delivery Pass-through |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Number of Displays Supported | 4 |
| Supported Resolutions | 1280 x 720 |
| 5120 x 2160 | |
| 6144 x 3456 | |
| 1920 x 1080 | |
| 3840 x 2160 | |
| 2560 x 1440 | |
| 3440 x 1440 | |
| Screen Mode Supported | FHD @ 60Hz |
| HD @ 60Hz | |
| QHD @ 60Hz | |
| 6K @ 60Hz | |
| WQHD @ 60Hz | |
| WQHD | |
| 5K @ 60Hz | |
| 4K @ 60Hz | |
| Management Features | WLAN to LAN Switch |
| Wake-on-LAN | |
| PXE Boot | |
| Port Disablement | |
| Kernel Direct Memory Access (DMA) Protection | |
| Dock Power Button Sync | |
| MAC Address Pass-through | |
| Power Delivery | 96W (non-Dell Systems) |
| 100W (Dell Systems) | |
| Security Slot Type | Kensington Security Slot |
