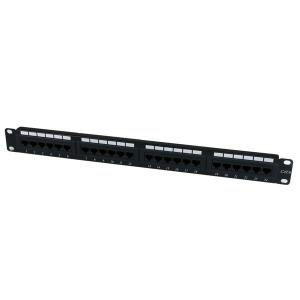

The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.
For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables. The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com’s 2-year warranty.
Environmental | |
Humidity | 10~65% |
Operating Temperature | -10~60? |
Packaging Information | |
Package Quantity | 1 |
Shipping (Package) Weight | 670 g [23.7 oz] |
Physical Characteristics | |
Color | Black |
Product Height | 44 mm [1.7 in] |
Product Length | 34 mm [1.3 in] |
Product Weight | 578 g [20.4 oz] |
Product Width | 483 mm [19 in] |
Special Notes / Requirements | |
Note | IDC Contact : 0.8mm Thickness Phosphor Bronze, Tin Plating Over Nickel |
What's in the Box | |
Included in Package | 24 Port 1U Rackmount Cat 6 110 Patch Panel |
M5 Screws | |
M6 Screws |
Marketing Text | The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application. |
PI Date | Jun 2017 |
Brand Name | Startech |
Manufacturer Web Site | http://www.startech.com |
Product Type | Patch Panel |
Rack Height | 1U |
Depth (mm) | 34.0 |
Height (mm) | 44.0 |
Width (mm) | 483.0 |
Weight (Grams) | 578.0 |
Color | Black |
Package Includes | * 1 - 24 Port 1U Rackmount Cat 6 110 Patch Panel * 4 - M6 Screws * 4 - M5 Screws |
Compliance Standards | * RoHS Compliant |
Other Features | * Color coded for both T568A and T568B installations * Terminated using 110-type punch tool * Supports both Cat5e and Cat6 cables |
Warranty Information | 2 Year |
