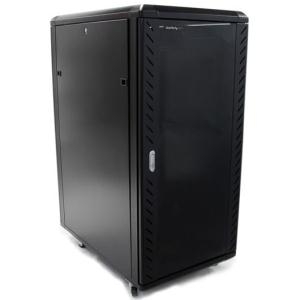

Startech 25u 36in Knock-down Server Rack Cabinet With Casters Rk2536bkf
Features
-
Increase visibility and security with a glass door
-
Easy equipment installation
-
Reduce the cost of your shipping with a flat packed rack
-
Keep your equipment at an optimal temperature with passive cooling
-
Built-in fan mounts for optional deployment of active cooling
-
Easy assembly at the point of installation for rapid deployment
-
Front and side mounting holes to accommodate different types of equipment
This server rack provides 25U of storage space in a sleek secure cabinet for storing EIA-310 compliant 19” rackmount devices such as Dell, HP and IBM servers along with telecommunication and A/V equipment. The rack creates a robust storage solution supporting a total load capacity of 800 kg. (1763.7 lbs.).
Hassle-free equipment installation
This rack has been engineered with different features that enable you to easily incorporate plenty of equipment.
With adjustable mounting rails you can easily change the rail depth to up to 32 in. (813 mm). These rails ensure the cabinet is widely compatible with your standard rackmountable equipment. The added depth also provides support for additional cable and power management behind your equipment.
The rack features brushed ports on the ceiling and floor panels that enable you to easily run cabling to the inside and outside of the cabinet, for discreet cable management. The floor and ceiling panels can also be removed enabling you to customize your setup, and the rack features grounding lugs that enable you to ground your equipment for added protection.
Securely protect your equipment while still being able to see it

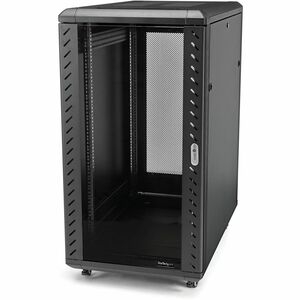

To ensure you have full visibility of your equipment while securely locking it up, this rack has a stylish glass window on the front door. The glass door looks great in any server room, and gives you the freedom to clearly monitor equipment without the hassle of opening your rack.
The rack also has removable side panels with independent locks quick-release mechanisms that enable you to easily access your equipment while still keeping it secure.
Save money, with a cost effective, compact shipping container
The cabinet comes in a flat packed box to reduce shipping volume, which significantly reduces your costs in shipping. Plus, because the rack is packaged efficiently, you can easily store the cabinet, for deployment at a later date.
Maximum Maneuverability, with casters included
The cabinet features casters ensuring hassle-free access to the rear mounted equipment, while providing ease of mobility around your office, studio or server room. Plus, the width and height of the rack fits through standard doorways, giving you the freedom to wheel your server rack into different rooms.
Ensure your equipment is running at an optimal temperature
The rear door on the rack is mesh, and the front glass door is vented, working together to increase airflow to provide passive cooling that’s cost effective and ensures your equipment runs at an optimal temperature.
The top ceiling panel features square venting holes that are cage nut compatible, which provide mounting points that enable you to add additional equipment at the top of your rack. The ceiling panel also features fan mounts that give you the freedom to add fans for equipment that requires active cooling.
Hardware | |
Back Door Construction | Steel Mesh |
Casters | Included |
Fan(s) | No |
Frame Type | Enclosed Cabinet |
Front Door Construction | Steel w/ Window |
Front Door Key Lock | Yes |
Industry Standards | DIN41491 Part I |
EIA RS310-D | |
IEC297-2 | |
Rack Type | 4-Post |
Side Panel Construction | Solid Steel |
U Height | 25U |
Wallmountable | No |
Packaging Information | |
Flat Pack (Assembly Required) | Yes |
Shipping (Package) Weight | 75 kg [165.8 lb] |
Performance | |
Weight Capacity (Stationary) | 800 kg [1768 lb] |
Physical Characteristics | |
Color | Black |
External Depth | 1000 mm [39.4 in] |
External Height | 1216 mm [47.9 in] |
External Width | 600 mm [23.6 in] |
Height with Casters | 1303 mm [51.3 in] |
Internal Depth | 877.9 mm [34.6 in] |
Internal Height | 1116 mm [43.9 in] |
Internal Width | 465 mm [18.3 in] |
Maximum Mounting Depth | 813 mm [32 in] |
Product Weight | 72 kg [159.1 lb] |
What's in the Box | |
Included in Package | Adjustable Feet |
Allen Wrench | |
Assembly Screw Kit | |
Bag M6 Cab Screws and Nuts | |
Bottom Panel | |
Casters | |
Cross Brace | |
installation guide | |
Plastic Corner Caps | |
Sets of Keys | |
Side Panel and Frame | |
Top Panel |
This server rack provides 25U of storage space in a sleek secure cabinet for storing EIA-310 compliant 19? rackmount devices such as Dell, HP and IBM servers along with telecommunication and A/V equipment. The rack creates a robust storage solution supporting a total load capacity of 800 kg. (1760 lbs.).
Hassle-free equipment installation
This rack has been engineered with different features that enable you to easily incorporate plenty of equipment.
With adjustable mounting rails you can easily change the rail depth to up to 39.4 in. (1000mm). These rails ensure the cabinet is widely compatible with your standard rackmountable equipment. The added depth also provides support for additional cable and power management behind your equipment.
The rack features brushed ports on the ceiling and floor panels that enable you to easily run cabling to the inside and outside of the cabinet, for discreet cable management. The floor and ceiling panels can also be removed enabling you to customize your setup, and the rack features grounding lugs that enable you to ground your equipment for added protection.
Securely protect your equipment while still being able to see it
To ensure you have full visibility of your equipment while securely locking it up, this rack has a stylish glass window on the front door. The glass door looks great in any server room, and gives you the freedom to clearly monitor equipment without the hassle of opening your rack.
The rack also has removable side panels with independent locks quick-release mechanisms that enable you to easily access your equipment while still keeping it secure.
Save money, with a cost effective, compact shipping container
The cabinet comes in a flat packed box to reduce shipping volume, which significantly reduces your costs in shipping. Plus, because the rack is packaged efficiently, you can easily store the cabinet, for deployment at a later date.
Maximum Maneuverability, with casters included
The cabinet features casters ensuring hassle-free access to the rear mounted equipment, while providing ease of mobility around your office, studio or server room. Plus, the width and height of the rack fits through standard doorways, giving you the freedom to wheel your server rack into different rooms.
Ensure your equipment is running at an optimal temperature
The rear door on the rack is mesh, and the front glass door is vented, working together to increase airflow to provide passive cooling that?s cost effective and ensures your equipment runs at an optimal temperature.
The top ceiling panel features square venting holes that are cage nut compatible, which provide mounting points that enable you to add additional equipment at the top of your rack. The ceiling panel also features fan mounts that give you the freedom to add fans for equipment that requires active cooling.
The RK2536BKF is backed by a lifetime StarTech.com warranty with free technical support.
