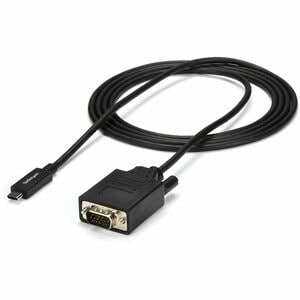

Startech Usb-c To Vga Adapter Cable - 2m (6 Ft.) - 1920x1200 Cdp2vgamm2mb

SKU
237554
Brand
MPN
CDP2VGAMM2MB
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$52.00
Buy Now And Earn 52 Reward Points!

Eliminate clutter by connecting your USB Type-C computer directly to a VGA display without additional adapters. This USB-C™ to VGA adapter cable offers a convenient solution for directly connecting your DisplayPort over USB Type-C™ device to your VGA monitor, television or projector.

The adapter supports a connection distance of up to 2 m (6 ft.) and works with USB-C devices that support DP alt mode, such as the MacBook, ChromeBook Pixel™ and Dell™ XPS™ models 15 and 13. It's also compatible with Thunderbolt™ 3 ports.

Clutter-free installation

At 2 m (6 ft.) in length, the adapter cable delivers a direct connection between your USB-C device and your VGA monitor. This means you don't have to use additional adapters or cabling, which helps ensure a tidy and professional installation. For shorter installations, we also offer a 1 m (3 ft.) USB-C to VGA cable, enabling you to choose the right cable length for your custom installation needs.

Hassle-free connection with USB Type-C

The USB-C to VGA adapter cable is easy to connect, through the versatility and convenience of the USB Type-C port on your device. USB-C is a reversible connector, so it doesn't matter which way you plug it in, the adapter will always connect. This saves you the frustration of trying to insert it correctly when you're docking your computer to your workstation or office hot desk.

Crystal-clear picture quality

The adapter harnesses the video capabilities that are built into your USB Type-C connector to deliver video resolutions up to 1920x1200 and 1080p, providing full high-definition support for your high-resolution VGA monitors. it's a great accessory for multitasking on high-resolution VGA displays at home, in the office or other HD work environments.

The CDP2VGAMM2MB is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Note:

Your USB-C equipped device must support video (DP alt mode) to work with this adapter.




Connector(s)
Connector AUSB-C (24 pin) DisplayPort Alt Mode Male Input
Connector BVGA (15 pin, High Density D-Sub) Male Output
Environmental
Humidity5~90% RH (Non-condensing)
Operating Temperature0?C to 70?C (32?F to 158?F)
Storage Temperature-10?C to 80?C (14?F to 176?F)
Hardware
Chipset IDNXP - PTN5100
Converter TypeCable Adapters
Output SignalVGA
Ports1
Packaging Information
Shipping (Package) Weight0.1 kg [0.3 lb]
Performance
Maximum Analog Resolutions1920x1200 or 1080p
Supported Resolutions1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
Wide Screen SupportedYes
Physical Characteristics
Accent ColorBlack
Cable Length2 m [6.6 ft]
ColorBlack
Product Height15 mm [0.6 in]
Product Length2000 mm [78.7 in]
Product Weight132 g [4.7 oz]
Product Width34 mm [1.3 in]
Special Notes / Requirements
NoteYour USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
What's in the Box
Included in PackageUSB-C to VGA adapter cable
