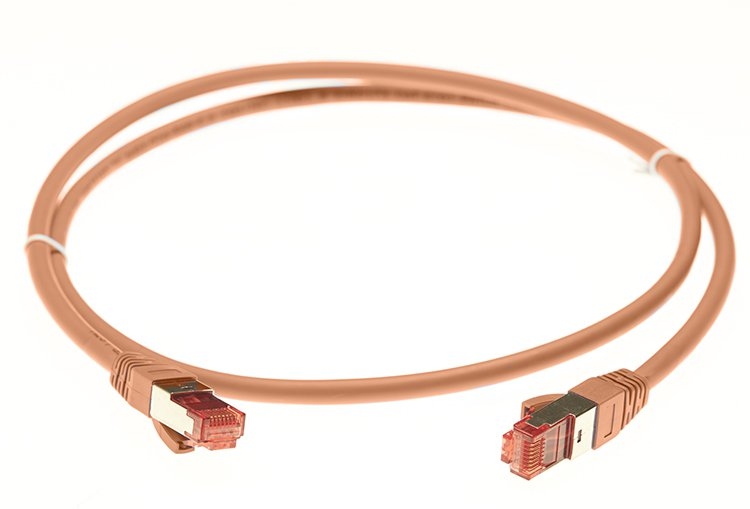

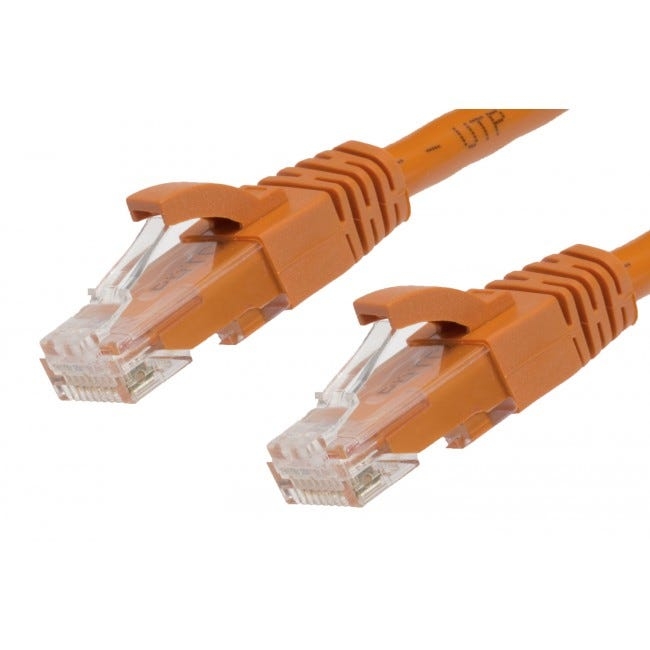

The 4Cabling's range of quality category 5E Ethernet Patch Leads are made from 100% Bare Copper. CAT5E cables are designed to be used in mission-critical situations where data integrity is of the utmost importance.

CAT5E or Category 5 enhanced ethernet cable has the capability to support up to 1000Mbps (1Gbps). It also reduces the amount of crosstalk between the wires within the cable, resulting in a greater overall transmission speed.

4Cabling stock and sell a wide range of CAT5E ethernet cables in 10 colours and lengths varying from 0.25m up to 10m. If you require longer cables we have CAT6 cables available in up to 50m. CAT6 cables support speeds of up to 10Gbs but are also backward compatible with CAT5E standards. 4Cabling is set to provide the best connection for your telecommunication and data network.

FEATURES
RJ-45 connectors
UTP stranded conductor CAT5E patch cords with 4 twisted pairs using T568A colour code
Impedance Matched - Wire and connectors are carefully matched to virtually eliminate echoing and cancellation, providing high speed, error free transmission
Gold Plated Contacts - Gold plating eliminates corrosion and provides maximum conductivity to ensure data integrity
Unique PVC Jacket - Exclusive polymer technology provides unsurpassed durability and flexibility
Snag Free Boots - Prevent cable kinks and bent pins when removing them from patch panels
Strain Relief - Increases strength while sustaining maximum flexibility even under extreme conditions
SPECIFICATIONS
Cable Type: CAT5E
Connectors: RJ45-RJ45
Length: 2m
Colour: Orange
Insulation Material: PE
Jacket Material: Flame Retardant PVC
Diameter: 5.5mm ±0.2mm
APPLICATIONS
Structured cabling for computer networks such as Ethernet
Equipment to equipment patching
Cross-connect patching
CERTIFICATIONS
ETL, UL Verification
Flame test: comply with IEC 60332-1-2
ISO/IEC11801:2011(Ed. 2.2)
ANSI/TIA/EIA-568-C.2
EN 50173-1:2011
EN 50173-2:2007 including amendment A1:2010
IEC61935-2:2010(Ed.3.0) (transmission requirements)
WARRANTY

3-years limited warranty
