4cabling 2m Lc-lc Om1 Multimode Fibre Optic Cable: Salmon Pink Fl.om1lclc2mp
SKU
260332
Brand
MPN
FL.OM1LCLC2MP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$16.00
Buy Now And Earn 16 Reward Points!
Details

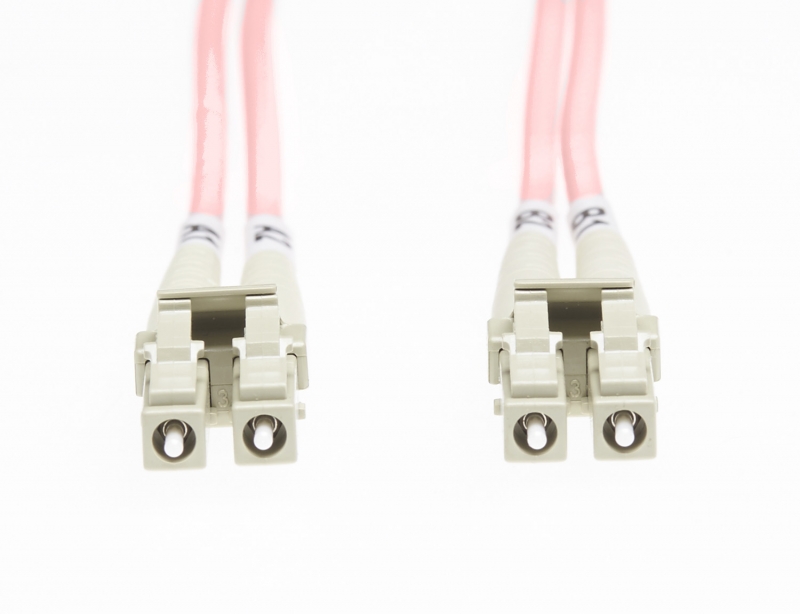

2m LC-LC OM1 Multimode Fibre Optic Cable: Salmon Pink - 2mm
Fibre optic cables are the thin, flexible fibres of glass that carry telephone conversations and emails all over the world in a matter of seconds with much less interference than copper cables. Fibre-Optic cables need less amplification to boost signals so they travel better over longer distances.
4Cabling's LC-LC OM1 Multimode Fibre Optic Patch Leads provide connection for 10Gb high speed and legacy networks like Gigabit Ethernet, Fast Ethernet and Ethernet and are immune to EMI/RFI. They are mainly used on patch panels for the connection between outlets and terminal equipment. The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telecordia standards.
Applications include:
- Termination enclosure to equipment patching
- Equipment to equipment patching
- Cross-connect patching
FEATURES
- OM1, OM3, OM4 & OS1 fibre patch leads conform to ITU-651, TIA/EIA492AAAD
- Individually labelled for lead tracing
- Low smoke zero halogen (LSZH) cable
- Manufactured with stringent quality control
- All leads are supplied with a factory test report
- Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads
- All ends are polished and individually inspected for correct polishing
- Supports high speed multi-channel data, voice & video applications
- Conforms to ISO/ IEC 11801
FIBRE SPECIFICATIONS
- Mode: OM1 Multimode
- Fibre Terminations: LC-LC
- Length: 2m
- Colour: Salmon Pink
- Oversleeving: 2mm
WARRANTY
3 year limited warranty.
Specifications
| Crush (N) | 1000 |
| Simplex/Duplex | Duplex |
| Strength Member | Aramid |
| Typical Insertion Loss | <0.20 dB |
| Max. Insertion Loss | <0.25 dB |
| Tensile Load | 7.0kg |
| Bend Radius | 3.8cm |
| Operating Temperature (C°) | minus 20° to 60° |
| Attenuation (dB) | 2.8 @ 850nm/0.8 @ 1310nm |
| Bandwidth OFL (MHz x km) | 1500 @ 850nm/500 @ 1310nm/2000 @ 1310nm |
| IL | RL<0.25dB |
| UPC Singlemode | >55dB |
| UPC Multimode | RL>36dB |
| APC | RL>60 |
2m LC-LC OM1 Multimode Fibre Optic Cable Salmon Pink.Fibre patch cables are the thin, flexible fibres of glass that carry data, telephone conversations and emails high speed all over the world in a matter of seconds with much less interference than copper patch lead. Fibre Optic cables need less amplification to boost signals so they travel better over longer distances.4Cablingâs OM1 Multimode Fibre optic cables provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads. 4Cabling fibre optic cable is immune to EMI/ RFI frequency, mainly used on patch panels for the connection between outlets and terminal equipment. The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telcordia standards.4Cabling Multimode Fibre Optics leads is the cost-effective way of your cabling solution. 2mm OVERSLEEVING. WARRANTY 3 YEARS Application:Cross-connect patchingBackbone application in buildingTermination enclosure for equipment patchingEquipment to equipment patching Features:Conforms to ISO/ IEC 11801Individually labelled for lead tracingLow smoke zero halogen (LSZH) cableManufactured with stringent quality controlAll leads are supplied with a factory test reportFibre Optic Cables conform to ITU-651, TIA/EIA492AAADDuplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leadsAll ends are polished and individually inspected for correct polishingSupports high-speed multi-channel data, voice & video applications Fibre Specifications:OM1 MultimodeLC-LC Fibre TerminationLength: 2mColour: Salmon Pink2mm OversleevingWarranty 3 Years Why 4Cabling?Expert adviceAustralian owned & operatedSecure online shopping 24/7Lightning fast delivery nationwideWarranty & peace of mind return policyOver 3000 quality products in stock ready to goAll products are approved as per local Australian standardsISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplierA loyal customer base of 100k+ who trust us for their data & electrical needsAustraliaâs leading importer & wholesaler of 19â server racks, copper, fibre & structured networking products
