Apc - Schneider 2U Horizontal Cable Manager 6In Fingers Ar8606
SKU
287323
Brand
MPN
AR8606
Warranty
Standard Manufacturer's Warranty
$163.00
Buy Now And Earn 163 Reward Points!
AR8606 Features

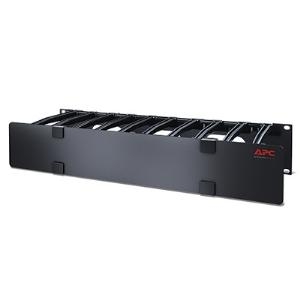

Horizontal Cable Manager, 2U x 6" Deep, Single-Sided with Cover
High density 2U, 6-in (150-mm) deep, horizontal cable manager with
cover. Features cable tie-off and cable access slots in the
backplate for front to back cable pass-through.
Includes: Double-sided Cable Manager configuration
hardware, Installation guide, Mounting hardware
-
Cable protectionSmooth plastic fingers provide proper bend radius.
-
Double-sided capableHorizontal cable managers include double-sided configuration hardware to install (2) alike horizontal cable managers back-to-back for double-sided applications.
-
High capacity cable finger designCable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
-
Rear pass-through cable slotsCable access slots in the backplane provide improved accessibility from the front to the rear of the enclosure for cable routing.
-
Trouble-free accessCovers with snap hinges provide trouble-free access to cables.
| Basic | |
|---|---|
| Brand Name: | APC by Schneider Electric |
| Colour: | Black |
| Product Type: | Cable Manager |
| Rack Height: | 2U |
| General Information | |
|---|---|
| Brand Name: | APC by Schneider Electric |
| Manufacturer Part Number: | AR8606 |
| Manufacturer Website Address: | http://www.schneider-electric.com.au |
| Manufacturer: | Schneider Electric SA |
| Product Name: | Horizontal Cable Manager |
| Product Type: | Cable Manager |
| Miscellaneous | |
|---|---|
| Additional Information: | |
| Physical Characteristics | |
|---|---|
| Colour: | Black |
| Depth: | 165.1 mm |
| Height: | 88.9 mm |
| Rack Height: | 2U |
| Weight (Approximate): | 997.9 g |
| Width: | 482.6 mm |
| Marketing Text | Horizontal cable manager with cover. Features cable tie-off and cable access slots in the backplate for front to back cable pass-through |
| PI Date | Feb 2014 |
| Brand Name | APC |
| Manufacturer Web Site | http://www.apc.com |
| Product Type | Cable Manager |
| Rack Height | 2U |
| Depth (mm) | 165.0 |
| Height (mm) | 88.0 |
| Width (mm) | 482.0 |
| Weight (Grams) | 1.0 Kg |
| Color | Black |
| Package Includes | * Double-sided Cable Manager configuration hardware, Installation guide, Mounting Hardware |
| Compliance Standards | * RoHS |
| Other Features | * High density 2U * Horizontal Cable Manager, 2U x 6" Deep, Single-Sided with Cover |
| Warranty Information | 2- Years |
