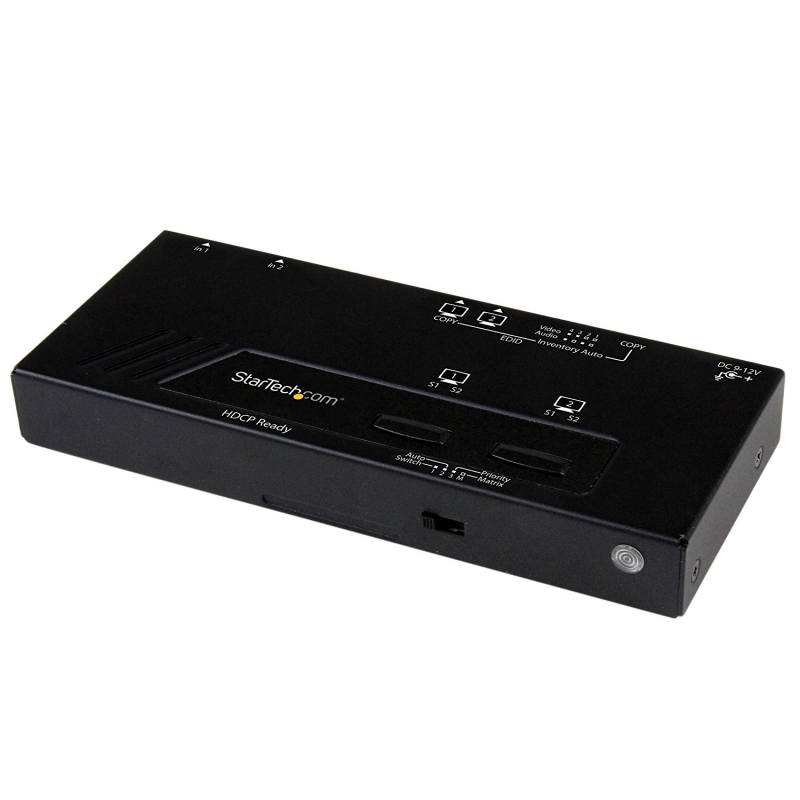

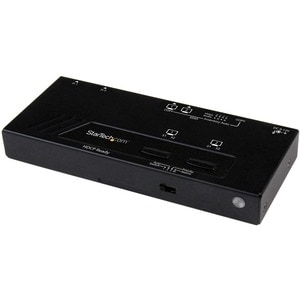

Startech 2x2 Hdmi Matrix Switch With Automatic And Priority Switching 2 In 2 Out Hdmi Matrix Splitter
QUICK OVERVIEW
Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS222HDQ 2X2 HDMI Matrix Switcher. This easy-to-use HDMI Matrix switch ensures seamless transition while switching video and display sources, with EDID copy maintaining your video resolution.
Seamless Signal Selection
Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.
Effortless Control
Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.
Versatile Switching Options
Enjoy hassle-free operation with four different switching modes:
Automatic port selection: Enables your most recently activated video source to be displayed automatically.
Priority port selection: Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.
Matrix port selection: Independently switch two displays between two video sources.
Manual port selection: Enables you to manually select your HDMI source with easy-to-use front panel buttons.
The StarTech.com Advantage
- Save your time, by conveniently accessing multiple HDMI source devices with 2 independent HDMI displays
- Hassle-free operation, with four video selection modes including automatic, priority, matrix and manual
- Worry-free switching, with EDID copy video and connection emulation ensuring no signal loss
| Indicators | |
| LED Indicators | Display #2 - source #1 activated |
| Display #2 - source #2 activated | |
| Packaging Information | |
| Shipping (Package) Weight | 545 g [19.2 oz] |
| Performance | |
| Audio Specifications | 7.1 surround sound |
| Max Distance | 10 m / 33 ft |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| Supported Resolutions | 1920x1200 1920x1080 (1080p) 1280x720 (720p) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum and Plastic |
| Product Height | 20 mm [0.8 in] |
| Product Length | 157 mm [6.2 in] |
| Product Weight | 290 g [10.2 oz] |
| Product Width | 65 mm [2.6 in] |
| Power | |
| Input Current | 0.6 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.5 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | foot pad set |
| HDMI matrix switch | |
| instruction manual | |
| mounting kit | |
| remote control | |
| universal power adapter (NA, EU, UK, AU) | |
| Indicators | |
| LED Indicators | Display #1 - source #2 activated |
| Display #1 - source #1 activated | |
| Hardware | |
| Rack-Mountable | Yes |
| Ports | 2 |
| Output Signal | HDMI |
| Cabling | HDMI |
| Audio | Yes |
| Environmental | |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Humidity | 0%~80% |
| Connector(s) | |
| Connector B | HDMI (19 pin) Female |
| Connector A | HDMI (19 pin) Female |
