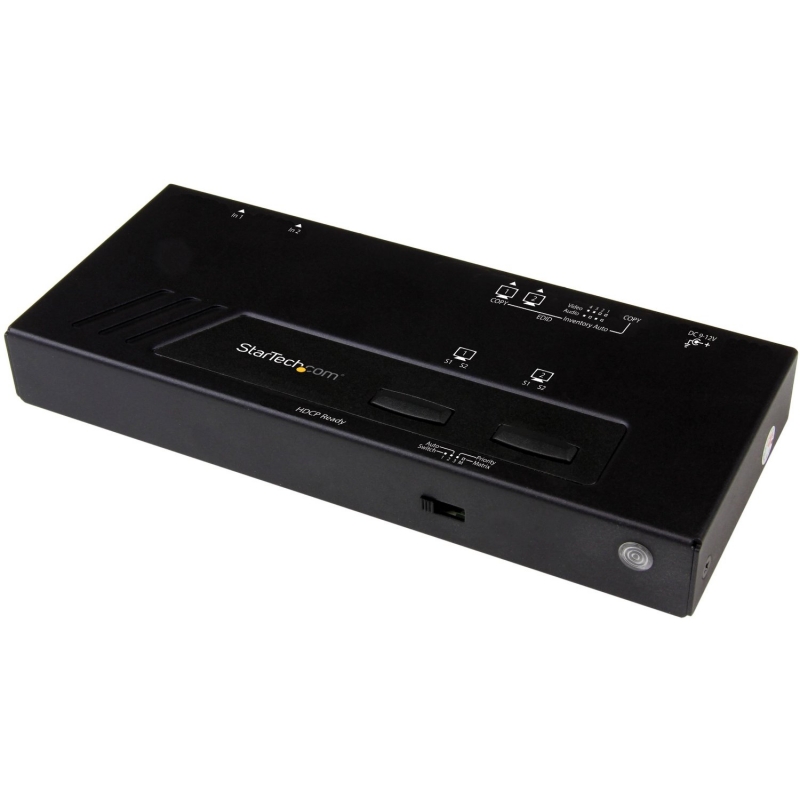

Startech 2x2 Hdmi Matrix Switch - Ultra Hd 4k Vs222hd4k

SKU
220290
Brand
MPN
VS222HD4K
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $304.00 Regular Price $354.00
Buy Now And Earn 304 Reward Points!

Automatically switch between two 4K video sources on two displays, utilizing fast-switching technology. Save time and hassle by automatically switching between your HDMI audio/video sources. This 2x2 HDMI® matrix switcher provides the ultimate viewing experience, with support for Ultra HD 4K. It lets you connect two HDMI sources to two HDMI displays, with exceptional 4K resolution, while switching seamlessly between your video sources.

Impressive image quality with 4K support

The matrix switch supports Ultra HD 4K picture quality on two monitors while switching between content from HDMI source devices - including Blu-ray™ players or DVD players, computer systems, video game consoles, digital cable or satellite boxes, and A/V receivers.

4K support ensures a higher level of image clarity and visibility, delivering four times the resolution of 1080p - 8.29 million pixels versus 2.07 million pixels. It provides a more engaging visual experience for audiences in a wide range of venues including conference centers, boardrooms, educational facilities, and commercial settings. With its exceptional image quality, 4K resolution is also ideal for bringing your digital signage to life.

Fast and versatile switching options

Enjoy hassle-free operation with four different switching modes:


Matrix switching: lets you route either HDMI source (Input 1 or Input 2) to either monitor (Output 2 or Output 3) - and independently switch two displays between two video sources.

Fast auto switching: ensures minimal time for switching between HDMI sources. The switch provides effortless operation with advanced auto-sensing - it detects the latest connected HDMI source and automatically switches both outputs to that device.

Priority switching: identifies the first port to have first priority for HDMI sources, which will be output on both displays.

Manual switching: enables you to manually select your HDMI source with front-panel buttons that are easy to use.


An IR remote control is included in the box, enabling you to easily select your desired input source remotely.

Hassle-free setup with plug-and-play installation

The matrix switch is easy to install. EDID emulation saves you time during setup by ensuring all of your display settings, such as native resolution and refresh rate, are communicated between your display and video source devices. The built-in EDID copy feature maximizes compatibility with your 4K display, to ensure a convenient plug-and-play installation and the sharpest image quality.

The VS222HD4K is backed by a 2-year StarTech.com warranty and free lifetime technical support.


Packaging Information
Shipping (Package) Weight850 g [30 oz]
Performance
Audio Specifications7.1 Surround sound
Max Distance10 m / 33 ft
Maximum Cable Length10000 mm [393.7 in]
Maximum Digital Resolutions4K @ 30 Hz
Supported Resolutions3840x2160 (4K)
2560x1600
1920x1200
1920x1080 (1080p)
1280x720 (720p)
Wide Screen SupportedYes
Physical Characteristics
ColorBlack
Product Height20 mm [0.8 in]
Product Length156 mm [6.1 in]
Product Weight298 g [10.5 oz]
Product Width65 mm [2.6 in]
Power
Input Voltage100 ~ 240 AC
Output Current1.5
Output Voltage12 DC
Power Consumption (In Watts)18
Power SourceAC Adapter Included
What's in the Box
Included in Package2x2 HDMI matrix switch
mounting kit
quick start guide
remote control
RJ11 cable (1200mm)
RJ11 to DB-9 serial adapter
universal power adapter (NA/EU/UK/AU)
Indicators
LED IndicatorsPower LED
Active port LED
Hardware
Ports2
Output SignalHDMI
Industry StandardsHDMI 1.4
AudioYes
Environmental
Storage Temperature-20?C to 70?C (-4?F to 158?F)
Operating Temperature0?C to 50?C (32?F to 122?F)
Humidity0% ~ 80%
Connector(s)
Connector BRJ-11 Female
HDMI (19 pin) Female
Connector AHDMI (19 pin) Female

Save time and hassle by automatically switching between your HDMI audio/video sources. This 2x2 HDMI® matrix switcher provides the ultimate viewing experience, with support for Ultra HD 4K. It lets you connect two HDMI sources to two HDMI displays, with exceptional 4K resolution, while switching seamlessly between your video sources.

Impressive image quality with 4K support

The matrix switch supports Ultra HD 4K picture quality on two monitors while switching between content from HDMI source devices - including Blu-ray™ players or DVD players, computer systems, video game consoles, digital cable or satellite boxes, and A/V receivers.

4K support ensures a higher level of image clarity and visibility, delivering four times the resolution of 1080p - 8.29 million pixels versus 2.07 million pixels. It provides a more engaging visual experience for audiences in a wide range of venues including conference centers, boardrooms, educational facilities, and commercial settings. With its exceptional image quality, 4K resolution is also ideal for bringing your digital signage to life.

Fast and versatile switching options

Enjoy hassle-free operation with four different switching modes:

  • Matrix switching: lets you route either HDMI source (Input 1 or Input 2) to either monitor (Output 2 or Output 3) - and independently switch two displays between two video sources.

  • Fast auto-switching: ensures minimal time for switching between HDMI sources. The switch provides effortless operation with advanced auto-sensing - it detects the latest connected HDMI source and automatically switches both outputs to that device. It also ensures no downtime in a digital signage application if a source signal is accidentally powered off or fails.

  • Priority switching: identifies the first port to have first priority for HDMI sources, which will be output on both displays.

  • Manual switching: enables you to manually select your HDMI source with front-panel buttons that are easy to use.

An IR remote control is included in the box, enabling you to select your desired input source remotely. The RS-232 serial control interface ensures easy remote operation with serial control enabled devices.

Hassle-free setup with plug-and-play installation

The matrix switch is easy to install. EDID emulation saves you time during setup by ensuring all of your display settings, such as native resolution and refresh rate, are communicated between your display and video source devices. The built-in EDID copy feature maximizes compatibility with your 4K display, to ensure a convenient plug-and-play installation and the sharpest image quality.

The VS222HD4K is backed by a 2-year StarTech.com warranty and free lifetime technical support.
