Startech Usb-c Multiport Adapter - Usb C To Hdmi - Usb-c To Dvi - Usb-c Vga Multiport Adapter -

SKU
254010
Brand
MPN
CDPVGDVHDBP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$90.00
Buy Now And Earn 90 Reward Points!

QUICK OVERVIEW

Keep this USB C adapter with your laptop while CDPVGDVHDBP

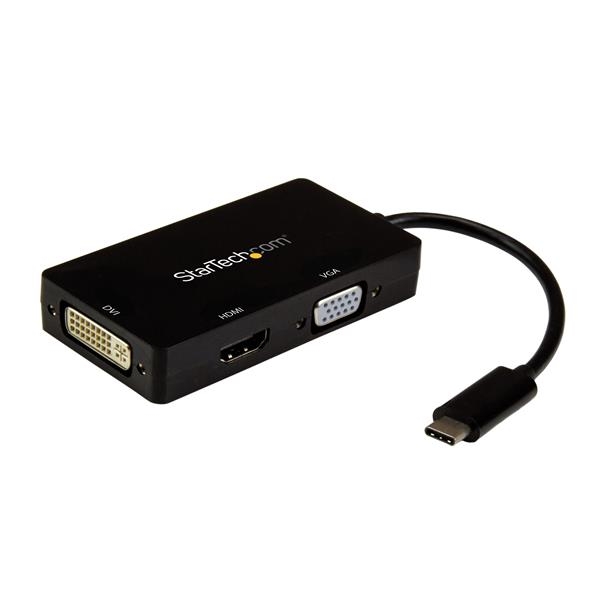

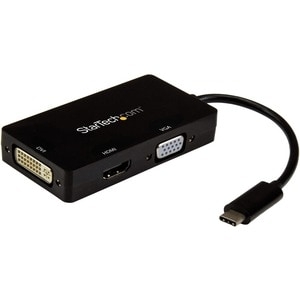

This USB-C™ multiport adapter offers a portable solution for connecting your USB-C computer to a VGA, DVI or HDMI display. The adapter combines multiple video outputs into a single adapter, for an all-in-one connectivity solution. This adapter only connects to one display at a time.

The multiport travel adapter is compatible with your DP Alt Mode computer. DP Alt Mode means your computer can pass a DisplayPort video signal through its USB-C port. The adapter is also compatible with Thunderbolt™ 3 ports.

All-in-one video connectivity

This USB-C adapter gives you all the video outputs you'll need, in a single adapter. The adapter makes your laptop compatible with virtually any display, by letting you connect a VGA, DVI or HDMI monitor through USB-C. This adapter gives you the confidence to walk into any boardroom ready to present, making a great first impression, and saving you the embarrassment and hassle of assessing the room’s connectivity and then having to rummage through your bag looking for the right connector.

Maximize portability

The portable A/V adapter features a small footprint and lightweight design that makes it easy to carry along with your laptop. You can take this adapter with you when you're on road, to ensure you can connect to virtually any display or projector you come across.

Astonishing picture quality

The HDMI output on this travel adapter supports Ultra HD 4K resolutions at 30Hz, providing four times the picture quality of high-definition 1080p. The USB-C to HDMI output is also backward compatible with lower resolutions, such as 1080p and 720p, so you can use the adapter with legacy video equipment. The VGA and DVI outputs also support resolutions of up to 1920 x 1200 or 1080p HD, so you can still enjoy excellent video quality.

The CDPVGDVHDBP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connector(s)
Connector AUSB-C (24 pin) DisplayPort Alt Mode Male Input
Connector BDVI-I (29 pin) Female Output
HDMI (19 pin) Female Output
VGA (15 pin, High Density D-Sub) Female Output
Environmental
HumidityStorage: 5% ~ 90 % RH (no condensation)
Operating: 10% ~ 85 % RH (no condensation)
Operating Temperature0?C to 45?C (32?F to 113?F)
Storage Temperature-10?C to 70?C (14?F to 158?F)
Hardware
Active or Passive AdapterActive
Adapter StyleAdapters
Converter TypeTravel A/V Adapters
Output SignalDVI-D (DVI Digital)
HDMI
VGA
Packaging Information
Shipping (Package) Weight55 g [1.9 oz]
Performance
Audio SpecificationsHDMI output - 7.1 surround sound
DVI output - 2-channel stereo audio
General SpecificationsOnly one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
Maximum Analog Resolutions1920 x 1200 @ 60Hz
Maximum Digital Resolutions3840 x 2160 @ 30Hz
Supported ResolutionsHDMI output: 3840 x 2160 (@ 30 Hz), 2560 x 1600, 2048 x 1280 (@ 60 Hz), 1920 x 1200, 1920 x 1080, 1280 x 720

VGA and DVI output: 1920 x 1200 (@ 60 Hz), 1920 x 1080, 1280 x 720
Video RevisionDisplayPort 1.2
Wide Screen SupportedYes
Physical Characteristics
ColorBlack
Product Height15 mm [0.6 in]
Product Length85 mm [3.3 in]
Product Weight51 g [1.8 oz]
Product Width45 mm [1.8 in]
Special Notes / Requirements
System and Cable RequirementsYour USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
What's in the Box
Included in PackageUSB-C travel adapter
