StarTech.com Crossbar Triple Monitor Desk Mount For Up To 3x 27in Screens, Vesa 75x75/100x100, Tool-Less Arm Adjustments, C-Clamp/Grommet - Crossbar Triple Monitor Desk Mount For 27in Displays, Vesa 75x75/100x100; Spring-assisted Arm W/multiple Toolless
SKU
424504
Brand
MPN
3M1A3SG-MONITOR-ARM
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $417.00 Regular Price $480.00
Buy Now And Earn 417 Reward Points!
QUICK OVERVIEW
Adjustments +/-180deg Swivel; +/-90deg Tilt; Vesa Plate +/-90deg For Landscape/portrait; C-clamp/grommet; Max Desk Thickness 3.1in 3M1A3SG-MONITOR-ARM

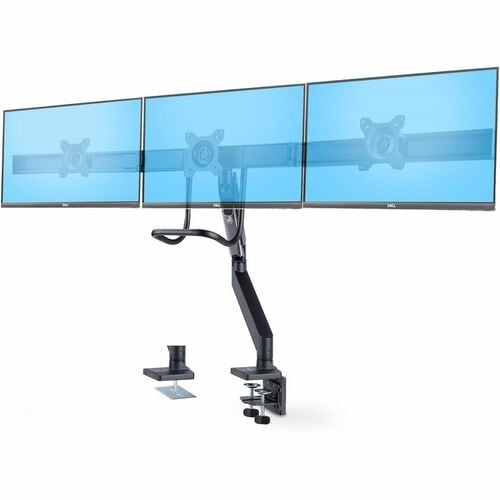

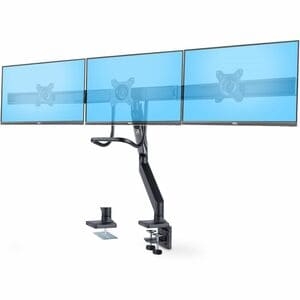

This crossbar monitor desk mount is designed to support up to three 27-inch displays, creating an ergonomic multi-monitor setup that provides an extensive viewing area for productivity. A built-in handle enables moving all monitors simultaneously, while the spring-assisted arm allows multiple adjustments to suit different ergonomic needs.
Height Adjustment with One Smooth Motion
The spring arm enables toolless height adjustment of up to 13in (330mm) with effortless one-touch motion. The max arm extension is 20.7in (526mm), and the weight capacity is 13.2lb (6kg) per monitor.
Visual Experience
This triple monitor mount features micro height adjustment screws on the VESA plate that enable perfect alignment of all three monitors. This is ideal for bezel-less or slim bezel displays, helping to create a more extensive and seamless viewing area. The outer displays' VESA mounts slide along the crossbar, allowing further adjustments.
Range of Motion
The monitor crossbar allows toolless adjustments of +/-15° horizontal swivel of the outer displays. The monitors' VESA mounts enable +/-10° horizontal swivel, +5/-15° tilt, and 360° screen rotation for portrait or landscape orientations.
Cable Management
To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip at the base maintains an organized workspace.
Height Adjustment with One Smooth Motion
The spring arm enables toolless height adjustment of up to 13in (330mm) with effortless one-touch motion. The max arm extension is 20.7in (526mm), and the weight capacity is 13.2lb (6kg) per monitor.
Visual Experience
This triple monitor mount features micro height adjustment screws on the VESA plate that enable perfect alignment of all three monitors. This is ideal for bezel-less or slim bezel displays, helping to create a more extensive and seamless viewing area. The outer displays' VESA mounts slide along the crossbar, allowing further adjustments.
Range of Motion
The monitor crossbar allows toolless adjustments of +/-15° horizontal swivel of the outer displays. The monitors' VESA mounts enable +/-10° horizontal swivel, +5/-15° tilt, and 360° screen rotation for portrait or landscape orientations.
Cable Management
To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip at the base maintains an organized workspace.
| Application/Usage | Workspace |
| Product Type | Mounting Arm |
| Device Supported | Display, Monitor |
| Features | Spring Arm, Swivel, Tilt, Tool-less Adjustment, Pivot, Rotate, Micro Adjustment, Handle, Adjustable, Articulating Arm, Cable Clip, Cable Management, Ergonomic, Grommet |
| Maximum Load Capacity | 18 kg |
| Brand Name | StarTech.com |
| Minimum Screen Size Supported | 43.2 cm |
| Maximum Screen Size Supported | 68.6 cm (27") |
| VESA Mount Compatible | Yes |
| Number of Displays Supported | 3 |
| Mounting Pattern | 100 x 100, 75 x 75 |
| Product Color | Black |
| Color Family | Black |
| Product Material | Plastic, Aluminium, Steel |
| Minimum Load Capacity | 6 kg |
| Manufacturer Part Number | 3M1A3SG-MONITOR-ARM |
| Manufacturer Website Address | http://www.startech.com/au |
| Manufacturer | StarTech.com |
| Product Name | Mounting Arm |
| Package Contents | • 1 x Base Mount • 1 x Base Pad • 1 x Swivel Arm • 1 x Spring Arm • 1 x Crossbar Left • 1 x Crossbar, Right • 1 x Crossbar, Center • 3 x VESA Monitor Mount • 1 x Grab Handle • 4 x Flat Head Screws • 1 x Grommet Base Plate • 1 x Grommet Screw • 1 x Grommet Plate • 1 x Tool Holder • 2 x Desk Clamping Discs • 1 x Desk Clamp, Lower • 1 x Desk Clamp, Upper • 2 x Hand Knobs • 10 x Countersunk Screws • 4 x Button Head Screws • 1 x 3mm Hex Key • 1 x 4mm Hex key • 1 x 6mm Hex Key • 2 x M4x10mm Screws • 2 x M5x8mm Screws • 12 x M4x12mm Screws • 12 x M5x12mm Screws • 12 x Washers • 2 x Small Washers • 6 x Hook and Loop Straps (Crossbar) • 2 x Hook and Loop Straps (Spring Arm) • 6 x Cable Management Clips (Crossbar) • 1 x User Manual |
| Weight (Approximate) | 8.44 kg |
| Form Factor | Desk |
| Length | 143.3 cm |
| Height | 59.4 cm |
| Width | 63 cm |
| Orientation | Landscape/Portrait |
| Height Adjustment Type | Gas Spring |
| Minimum Swivel Angle | 10° |
| Maximum Swivel Angle | 15° |
| Minimum Tilt Angle | 5° |
| Maximum Tilt Angle | 15° |
| Height Adjustable | Yes |
| Maximum Rotate Angle | 360° |
| Shipping Dimensions | Height 16.5, Width 34, Length 60, Shipping Weight 10.08 KG |
StarTech.com Crossbar Triple Monitor Desk Mount For Up To 3x 27in Screens, VESA 75x75/100x100, Tool-Less Arm Adjustments, C-Clamp/Grommet - Crossbar triple monitor desk mount for 27in displays, VESA 75x75/100x100; Spring-assisted arm w/multiple toolless adjustments +/-180deg swivel; +/-90deg tilt; VESA plate +/-90deg for landscape/portrait; C-clamp/grommet; Max desk thickness 3.1in
