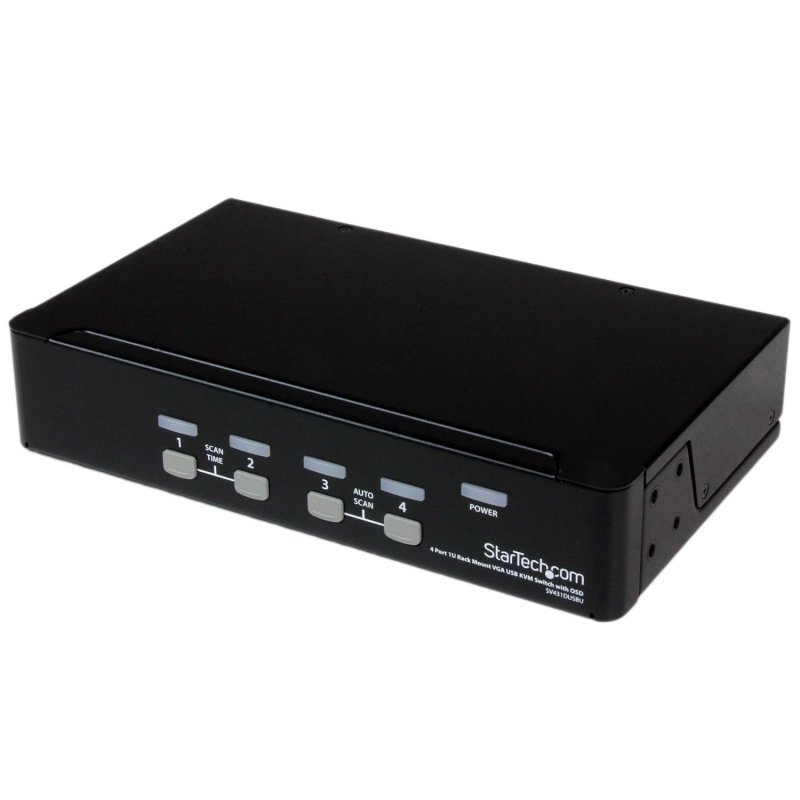

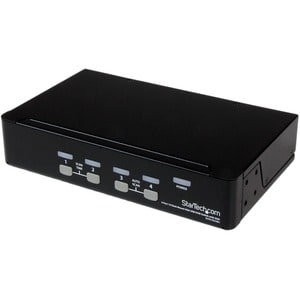

Startech 4 Port 1u Rackmount Usb Kvm Switch With Osd Sv431dusbu
This 4-port USB KVM Switch lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, and monitor). The versatile USB KVM switch features convenient push-button and hot-key control for quick, reliable switching between connected computers. A convenient and straight-forward control solution, the USB KVM switch supports both manual and auto-scan modes and simple configuration through the built-in OSD. Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles.
| Connector(s) | |
| Console Interface(s) | USB Type-A (4 pin) USB 2.0 Female |
| VGA (15 pin, High Density D-Sub) Female | |
| Host Connectors | VGA (15 pin, High Density D-Sub) Female |
| Environmental | |
| Humidity | 80% RH |
| Operating Temperature | 5?C to 40?C (41?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Audio | No |
| Cables Included | No |
| Daisy-Chain | Yes |
| KVM Ports | 4 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | VGA |
| Rack-Mountable | Optional |
| Indicators | |
| LED Indicators | Green - Online PC |
| Green - Power | |
| Red - Selected PC | |
| Packaging Information | |
| Shipping (Package) Weight | 1.6 kg [3.6 lb] |
| Performance | |
| DVI Support | No |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Analog Resolutions | 1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen) |
| Maximum Number of Users | 1 |
| On-Screen Display | Yes |
| Port Selection Support | Push Button, Hotkeys, and OSD (On Screen Display) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Depth | 130 mm [5.1 in] |
| Product Height | 43 mm [1.7 in] |
| Product Weight | 1500 g [52.9 oz] |
| Product Width | 220 mm [8.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.2A |
| Input Voltage | 110V-240V AC |
| Output Current | 0.6A |
| Output Voltage | 9 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 5.4 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 4-port KVM switch |
| foot pads | |
| instruction manual | |
| universal power adapter (NA/EU/UK/AU) | |
The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you?d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
