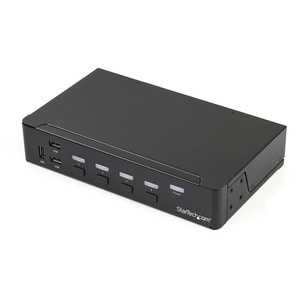

Startech 4-port Displayport Kvm Switch - Built-in Usb 3.0 Hub For Peripheral Devices - 4k - Control
QUICK OVERVIEW
This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.
Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals.
With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.
Astonishing picture quality
Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.
Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.
The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

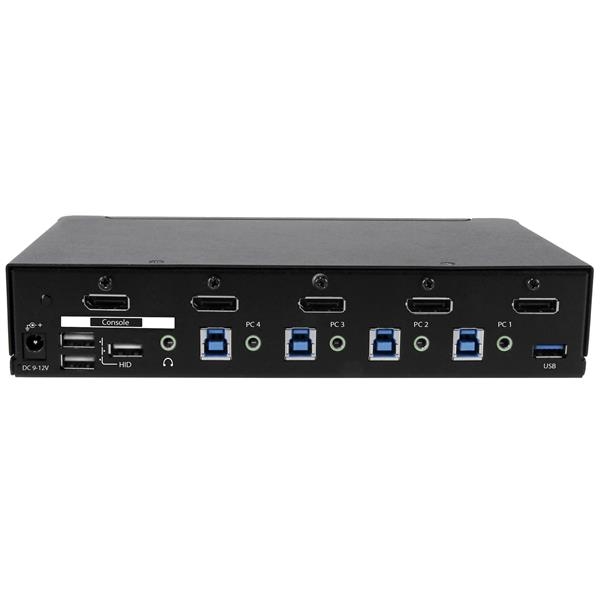

| Connector(s) | |
| Console Interface(s) | 3.5 mm Mini-Jack (3 Position) Female Output |
| DisplayPort (20 pin) Female Output | |
| USB Type-A (9 pin) USB 3.0 Female | |
| Host Connectors | 3.5 mm Mini-Jack (3 Position) Female Input |
| DisplayPort (20 pin) Female Input | |
| USB Type-B (9 pin) USB 3.0 Female | |
| Other Interface(s) | USB Type-A (9 pin) USB 3.0 Female |
| Environmental | |
| Humidity | 0~80% RH Non-Condensing |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cables Included | No |
| Daisy-Chain | No |
| Industry Standards | HDCP 2.2 |
| KVM Ports | 4 |
| Number of Monitors Supported | 1 |
| PC Interface | USB 3.0 |
| PC Video Type | DisplayPort |
| Rack-Mountable | Optional |
| Indicators | |
| LED Indicators | port selection/link LEDs |
| power LED | |
| Packaging Information | |
| Shipping (Package) Weight | 1.6 kg [3.6 lb] |
| Performance | |
| Audio Specifications | 2-Channel Stereo supported |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Cable Length | 10 m [32.8 ft] |
| Maximum Digital Resolutions | 3840x2160 @ 30 Hz |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Supported Resolutions | 1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1440 2560x1600 3840x2160 (Ultra HD 4K) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Product Height | 43 mm [1.7 in] |
| Product Length | 220 mm [8.7 in] |
| Product Weight | 1062 g [37.5 oz] |
| Product Width | 130 mm [5.1 in] |
| Power | |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.5 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Special Notes / Requirements | |
| Note | About video adapters If you use a video adapter with this KVM switch, you must use an active video adapter.If you use a passive video adapter, you might encounter performance issues. Check with the manufacturer to determine if the video adapter that you want to use isan active adapter. |
| What's in the Box | |
| Included in Package | 4-port DisplayPort KVM switch |
| quick start guide | |
| rubber feet | |
| universal power adapter (NA, EU, UK, ANZ) | |
This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.
Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals.
With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.
Astonishing picture quality
Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.
Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.
The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you?d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
