Startech 4-port Pci Express Gigabit Network Adapter Card - Quad-port Gigabit Nic - Network Card
QUICK OVERVIEW

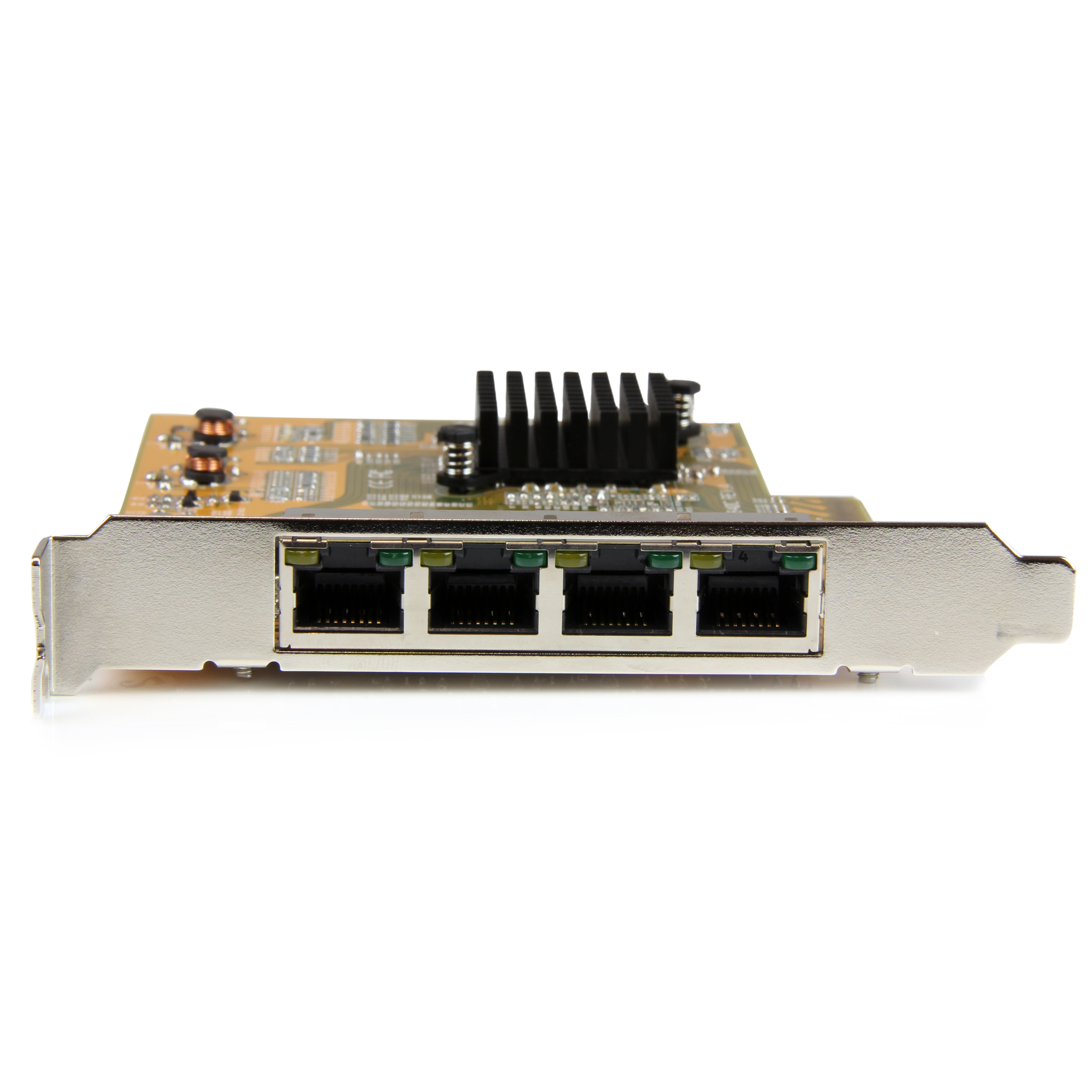

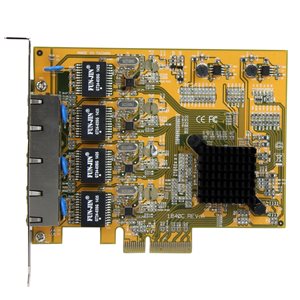

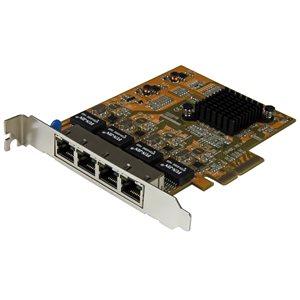

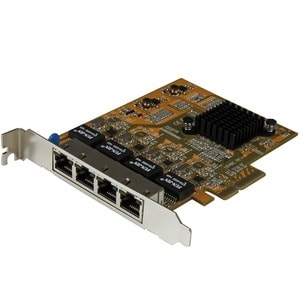

Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot
| .jpg) |
Features
Reliable connectivity to multiple networksNow you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget. This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111G chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer. |  |
 | A versatile and cost-effective solutionThis versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility). The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support. |
Applications
- Provides simultaneous access to multiple networks for desktop PC clients, servers, and workstations that have a limited number of PCI Express slots available
- Maximizes the number of RJ45 ports within a system or high-end workstations and servers
- Ideal for VM environments with multiple operating systems, requiring shared or dedicated NICs
- Provides redundant connectivity to ensure an uninterrupted network connection
| Connector(s) | |
| Connector Type(s) | PCI Express x4 Male |
| External Ports | RJ-45 Female |
| Environmental | |
| Humidity | 5% ~ 95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -40?C to 75?C (-40?F to 167?F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile |
| Chipset ID | Realtek - RTL8111G |
| Industry Standards | Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Interface | RJ45 (Gigabit Ethernet) |
| Ports | 4 |
| Indicators | |
| LED Indicators | Activity |
| Link | |
| Packaging Information | |
| Shipping (Package) Weight | 180 g [6.4 oz] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Data Transfer Rate | 2000Mbps (Full Duplex) |
| Promiscuous Mode | Yes |
| Physical Characteristics | |
| Color | Yellow |
| Product Height | 18 mm [0.7 in] |
| Product Length | 138 mm [5.4 in] |
| Product Weight | 100 g [3.5 oz] |
| Product Width | 120 mm [4.7 in] |
| Software | |
| OS Compatibility | Windows? XP, 7, 8, 8.1, 10 Windows Server? 2003, 2012, 2016 Linux Kernel 2.4.x to 4.11.x LTS Versions only |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express x4 or higher (x8, x16) slot |
| What's in the Box | |
| Included in Package | PCIe Gigabit network card - 4 port |
Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.
Reliable connectivity to multiple networks
This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111G chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.
A versatile and cost-effective solution
This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).
The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.
