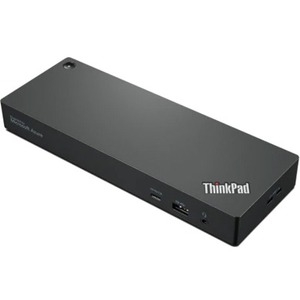

Lenovo THINKPAD THUNDERBOLT 4 SMART DOCK 40B10135AU

SKU
388064
Brand
MPN
40B10135AU
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$509.00
Buy Now And Earn 509 Reward Points!

THINKPAD THUNDERBOLT 4 SMART DOCK

A SMARTER WAY TO WORK.
The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it's all powered by Microsoft Azure Sphere.

Features include:

  • One Cable For All Your Needs: The ThinkPad Universal Thunderbolt™ 4 Smart Dock adds 11+ productivity-enhancing ports to your PC in a single cable. With support for one 8K monitor or up to four 4K monitors, 40 Gbps data speeds via Thunderbolt™ 4,
    and 10 Gbps via USB-A, and rapid-charging for up to 100W laptops, you can drastically expand the potential of your workspace with ease.
  • Universal Dock Compatibility: Get more longevity from your dock with the forward-thinking universal design of the ThinkPad Universal Thunderbolt™ 4 Smart Dock that supports Thunderbolt™ 3 and 4, USB 4™, USB-C, and extended compatibility with a wide range of brands and Multi-OS notebooks.
  • Innovative Remote Management: Enter a new age of dock management with efficiency-enhancing innovations such as remote firmware updates without a PC connected, remote port management, data analytics reporting, diagnostic tools, and Microsoft Azure Sphere security solution that aim to streamline the workflow of IT managers and boosts their productivity.

Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Maximum Power Supply Wattage 100 W
Interfaces/Ports
Host Interface USB Type C
Thunderbolt 4
HDMI Yes
HDMI Version 2.1
Number of HDMI Ports 1
Network (RJ-45) Yes
DisplayPort Yes
Number of DisplayPort Outputs 2
Number of HDMI Outputs 1
Total Number of USB Ports 5
Thunderbolt Yes
Headphone/Microphone Combo Port Yes
Number of RJ-45 Ports 1
USB Type-C Yes
DisplayPort Version 1.4
Number of USB Type-C Ports 1
Number of USB Type-A Ports 4
Thunderbolt Ports Quantity 2
USB Type-A Yes
Software
Operating System Supported Windows
Miscellaneous
Compatibility

Lenovo ThinkPad Notebook

Brand Compatibility Lenovo
Physical Characteristics
Weight (Approximate) 460 g
Height 30 mm
Depth 80 mm
Product Color Red
Black
General Information
Product Type Docking Station
Manufacturer Part Number 40B10135AU
Manufacturer Website Address http://www3.lenovo.com/au/en
Manufacturer Lenovo Group Limited
Product Name ThinkPad Universal Thunderbolt 4 Smart Dock
Brand Name Lenovo
Technical Information
Device Supported Notebook/Desktop PC
Connectivity Technology Wired
Number of Displays Supported 4
Supported Resolutions 3840 x 2160
7680 x 4320
Screen Mode Supported 4K
8K
