Details

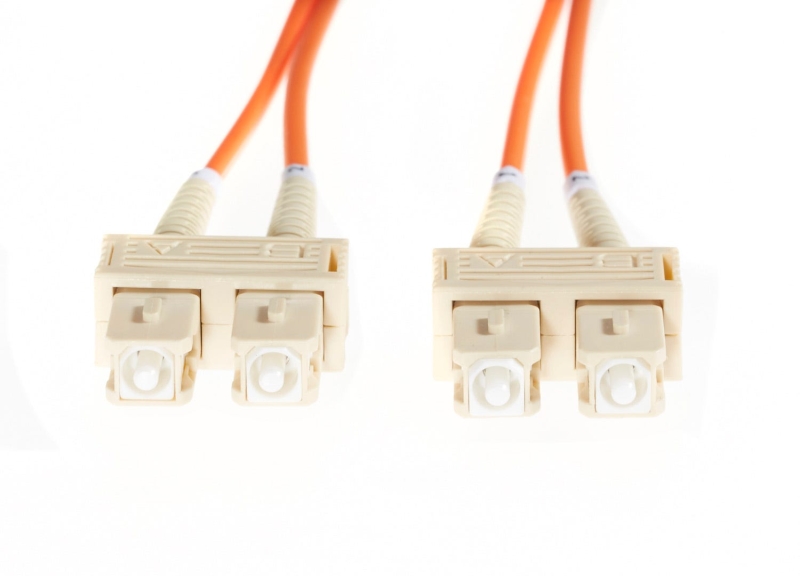

4Cabling OM1 SC-SC Multimode Fibre Optic Cable.Orange.
Fibre patch cables are the thin, flexible fibres of glass that carry data, telephone conversations and emails high speed all over the world in a matter of seconds with much less interference than copper patch lead. Fibre Optic cables need less amplification to boost signals so they travel better over longer distances.
4Cabling’s OM1 Multimode Fibre optic cables provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads. 4Cabling fibre optic cable is immune to EMI/ RFI frequency, mainly used on patch panels for the connection between outlets and terminal equipment. The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telcordia standards.
4Cabling Multimode Fibre Optics leads is the cost-effective way of your cabling solution.
2mm OVERSLEEVING. WARRANTY 3 YEARS
Application:
- Cross-connect patching
- Backbone application in building
- Termination enclosure for equipment patching
- Equipment to equipment patching
Features:
- Conforms to ISO/ IEC 11801
- Individually labelled for lead tracing
- Low smoke zero halogen (LSZH) cable
- Manufactured with stringent quality control
- All leads are supplied with a factory test report
- Fibre Optic Cables conform to ITU-651, TIA/EIA492AAAD
- Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads
- All ends are polished and individually inspected for correct polishing
- Supports high-speed multi-channel data, voice & video applications
Fibre Specifications:
- OM1 Multimode
- SC-SC Fibre Termination
- Colour: Orange
- 2mm Oversleeving
- Warranty 3 Years
Specifications
Crush (N) | 1000 |
Simplex/Duplex | Duplex |
Strength Member | Aramid |
Typical Insertion Loss | <0.20 dB |
Max. Insertion Loss | <0.25 dB |
Bend Radius | 3.8cm |
Operating Temperature (C°) | minus 20° to 60° |
Attenuation (dB) | 2.8 @ 850nm/0.8 @ 1310nm |
Bandwidth OFL (MHz x km) | 1500 @ 850nm/500 @ 1310nm/2000 @ 1310nm |
IL | RL<0.25dB |
UPC Singlemode | >55dB |
UPC Multimode | RL>36dB |
APC | RL>60 |
4Cabling OM1 SC-SC Multimode Fibre Optic Cable. 20M. Orange. Fibre patch cables are the thin, flexible fibres of glass that carry data, telephone conversations and emails high speed all over the world in a matter of seconds with much less interference than copper patch lead. Fibre Optic cables need less amplification to boost signals so they travel better over longer distances. 4Cablingâs OM1 Multimode Fibre optic cables provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads. 4Cabling fibre optic cable is immune to EMI/ RFI frequency, mainly used on patch panels for the connection between outlets and terminal equipment. The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telcordia standards. 4Cabling Multimode Fibre Optics leads is the cost-effective way of your cabling solution.  2mm OVERSLEEVING. WARRANTY 3 YEARS  Application: Cross-connect patching Backbone application in building Termination enclosure for equipment patching Equipment to equipment patching  Features: Conforms to ISO/ IEC 11801 Individually labelled for lead tracing Low smoke zero halogen (LSZH) cable Manufactured with stringent quality control All leads are supplied with a factory test report Fibre Optic Cables conform to ITU-651, TIA/EIA492AAAD Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads All ends are polished and individually inspected for correct polishing Supports high-speed multi-channel data, voice & video applications  Fibre Specifications: OM1 Multimode SC-SC Fibre Termination Length: 20m Colour: Orange 2mm Oversleeving Warranty 3 Years  Why 4Cabling? Expert advice Australian owned & operated Secure online shopping 24/7 Lightning fast delivery nationwide Warranty & peace of mind return policy Over 3000 quality products in stock ready to go All products are approved as per local Australian standards ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier A loyal customer base of 100k+ who trust us for their data & electrical needs Australiaâs leading importer & wholesaler of 19â server racks, copper, fibre & structured networking products
