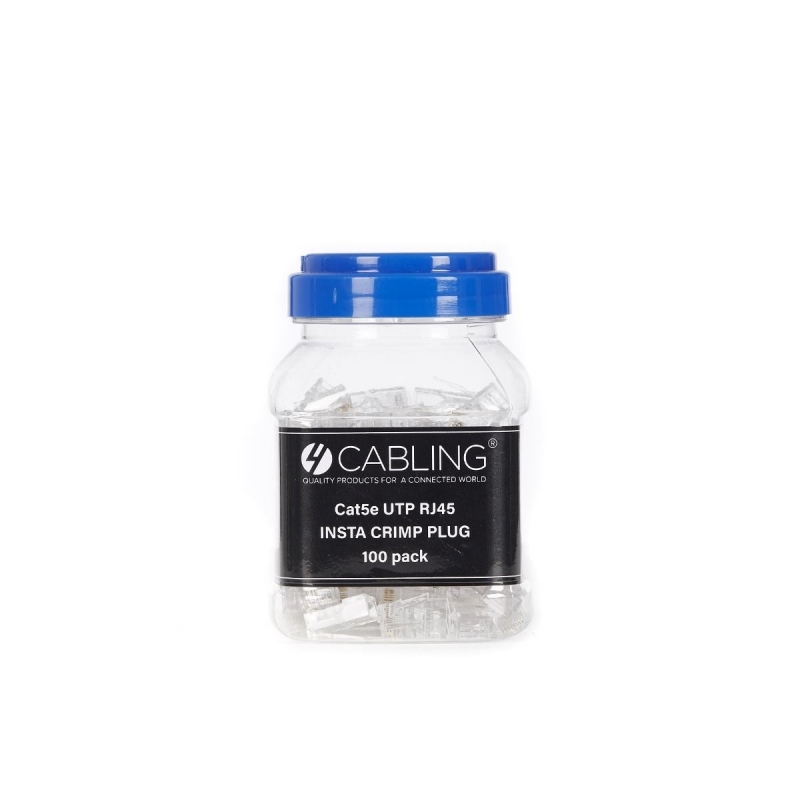

4Cabling CAT5e UTP RJ45 Insta Crimp Plug. 100 pack

WORKS ONLY WITH 4Cabling Insta Crimp Tool 001.006.0520

4Cabling Insta Crimp Plugs. Simplifies twisted pairs termination by allowing the wires to be inserted through the connector and out the front. This feature allows the technician to verify the proper wiring order.

Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!

4Cabling Insta Crimp Tool Required.

Features & Spec:
RoHS compliant
50-micron gold plated contacts
Suitable for both solid and stranded core cables
Certification: UL, IEC 60603-7
UL applications: Max.250V, AT 2Amps
Dielectric Withstanding Voltage: 1000V AC
Insulation Resistance: 100MΩ
Termination: Max. Resistance 20mΩ
Instructions:
Strip the outer cable sheath approx. 30mm
Cut off any separator or nylon string flush with cable sheath being careful not to nick conductors
Fan out 8 wires and arrange in colour code 568A. The 8 wires should be flat and neatly lined up next to one another.
Insert through crimp tool with excess wire protruding out the front
Insert plug into the correct position on the crimping tool
Squeeze the tool firmly, this will terminate the wires and cut off any excess cable length

Warranty:

3-year limited warranty
