Lenovo THINKSYSTEM BROADCOM 5719 1GBE RJ45 4-PO 4XC7A08235
SKU
395594
Brand
MPN
4XC7A08235
Warranty
Standard Manufacturer's Warranty
$153.00
Buy Now And Earn 153 Reward Points!

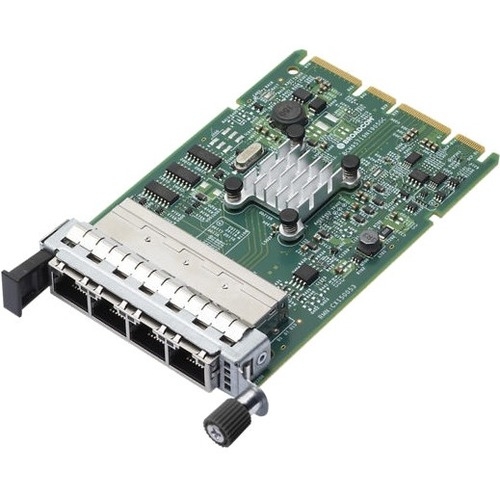

THINKSYSTEM BROADCOM 5719 1GBE RJ45 4-PO
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCIe and OCP adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.Did you know?
The NetXtreme Quad Port Ethernet Adapter is an ideal way to implement a virtualization solution using your existing Gigabit Ethernet network. With four copper-based Gigabit ports on a single PCI Express 2.0 x4 interface, the adapter provides the density and capacity you need to support large numbers of virtualized systems on one server.
Media & Performance
| Media Type Supported | Twisted Pair |
General Information
| Product Type | Gigabit Ethernet Card |
| Manufacturer Part Number | 4XC7A08235 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 5719 |
| Product Name | ThinkSystem Broadcom 5719 1GbE RJ45 4-port OCP Ethernet Adapter |
| Product Line | NetXtreme |
| Brand Name | Lenovo |
Miscellaneous
| Device Supported | Server |
Network & Communication
| Network Technology | 10/100/1000Base-T |
Interfaces/Ports
| Host Interface | PCI Express 2.0 x4 |
| Number of Network (RJ-45) Ports | 4 |
| Total Number of Ports | 4 |
Physical Characteristics
| Form Factor | Plug-in Card |
| Height | 69 mm |
| Width | 132 mm |
| Depth | 19 mm |
