Raid 940-8I 4GB Flash 4Y37A09728
SKU
385723
Brand
MPN
4Y37A09728
Warranty
Standard Manufacturer's Warranty
$3,202.00
Buy Now And Earn 3202 Reward Points!

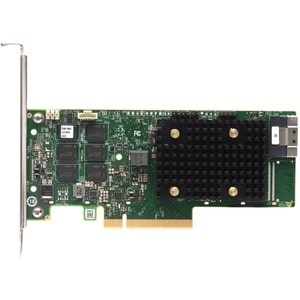

The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
| Host Interface | PCI Express 4.0 x8 |
| Product Type | SAS Controller |
| Device Supported | Server |
| Form Factor | Plug-in Card |
| Product Model | RAID 940-8i |
| RAID Levels | 60, JBOD, 0, 1, 10, 5, 6, 50 |
| Controller Type | 12Gb/s SAS |
| Brand Name | Lenovo |
| RAID Supported | Yes |
| Data Backup Type | Flash Backed Cache |
| Total Number of SAS Ports | 8 |
| SATA Connector Details | One x8 SFF-8654 |
| Manufacturer Part Number | 4Y37A09728 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem RAID 940-8i 4GB Flash PCIe Gen4 12Gb Adapter |
| Number of SAS Ports (Internal) | 8 |
| Cache Memory | 4 GB |
| Platform Supported | PC, Linux |
| Operating System Supported | Red Hat Enterprise Linux 8.7, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.1, SUSE Linux Enterprise Server 12 SP3, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP5, SuSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP4, Ubuntu 18.04.5 LTS, Ubuntu 20.04 LTS, VMware ESXi 7.0 U2, VMware ESXi 7.0 U3, VMware ESXi 8.0, Windows 10, Windows 11, Windows Server 2016, Windows Server 2019, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.5, Windows Server 2022, Red Hat Enterprise Linux 9.0, VMware ESXi 7.0 U1, Red Hat Enterprise linux 7.5, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Ubuntu 20.04.5 LTS, Ubuntu 22.04 LTS, VMware ESXi 6.7, VMware ESXi 6.7 U1, VMware ESXi 6.7 U2, VMware ESXi 6.7 U3, VMware ESXi 7.0 |
| Shipping Dimensions | Height 5.4, Width 14.8, Length 24, Shipping Weight 0.3 KG |
RAID 940-8I 4GB FLASH
