Raid 940-16I 8GB Flash 4Y37A09730
SKU
390584
Brand
MPN
4Y37A09730
Warranty
Standard Manufacturer's Warranty
$6,591.00
Buy Now And Earn 6591 Reward Points!

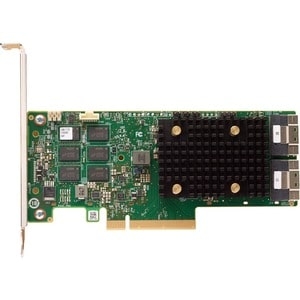

The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
| Host Interface | PCI Express 4.0 x8 |
| Product Type | SAS Controller |
| Device Supported | Server |
| Form Factor | Plug-in Card |
| Product Model | RAID 940-16i |
| RAID Levels | 0, 1, 10, 5, 50, 6, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| Brand Name | Lenovo |
| RAID Supported | Yes |
| Data Backup Type | Flash Backed Cache |
| Total Number of SAS Ports | 16 |
| Manufacturer Part Number | 4Y37A09730 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter |
| Number of SAS Ports (Internal) | 16 |
| SAS Connector Details | Two x8 SFF-8654 |
| Cache Memory | 8 GB |
| Platform Supported | PC |
| Operating System Supported | Windows Server 2022, VMware ESXi 7.0 U3, VMware ESXi 7.0 U2, VMware ESXi 7.0 U1, Windows Server 2019, SUSE Linux Enterprise Server 15 SP3, VMware ESXi 6.7 U3, VMware ESXi 6.7 U2, VMware ESXi 6.7 U1, VMware ESXi 6.7, Ubuntu 20.04 LTS, Ubuntu 18.04 LTS, Windows Server 2016, SUSE Linux Enterprise Server 15 SP2, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, SUSE Linux Enterprise Server 12 SP3, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP5, SuSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1 |
| Shipping Dimensions | Height 5.6, Width 14.8, Length 24, Shipping Weight 0.3 KG |
RAID 940-16I 8GB FLASH
