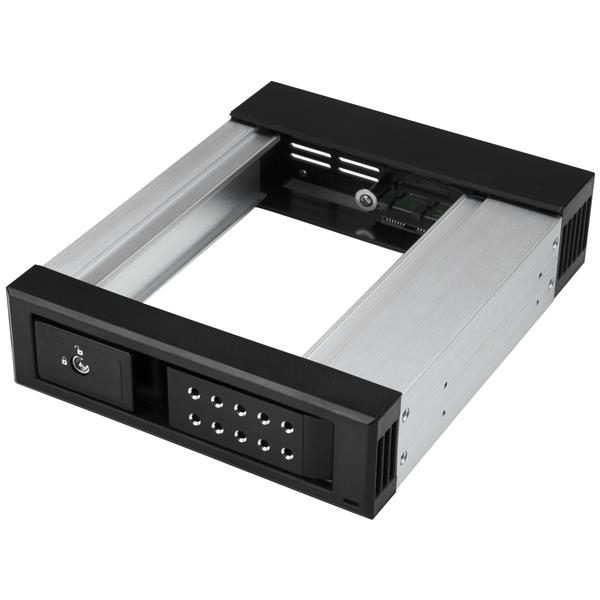

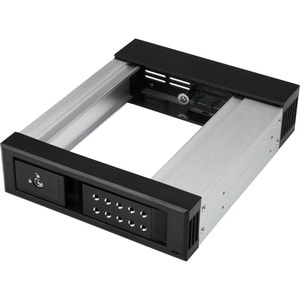

Startech 5.25 To 3.5 Hard Drive Hot Swap Bay - Trayless - For 3.5in Sata/sas Drives - Front Mount

SKU
254068
Brand
MPN
HSB1SATSASBA
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$75.00
Buy Now And Earn 75 Reward Points!

QUICK OVERVIEW

- Hard Drive Bay - SAS Backplane HSB1SATSASBA

This removable hard drive hot-swap bay makes it easy to swap 3.5” SATA or SAS drives in and out of your server or desktop computer, using an available 5.25” front drive bay. It features a trayless design that saves you installation time and enables you to insert or remove drives as needed, creating a convenient solution for drive maintenance and interchangeability of data between multiple systems.

Hot-swap drives easily

This hot-swap bay/mobile rack is ideal for IT professionals, such as system administrators or computer operators, for quickly swapping, replacing, or transporting drives between various systems and locations. With support for both SATA and SAS 3.5” drives, it saves valuable time in environments where storage drives need to be replaced or removed regularly, such as in server rooms and data centers.

Valuable drive protection

The hot-swap bay provides a protective backplane with a durable aluminum housing that offers ventilation to ensure proper air flow and heat dissipation. To safeguard your data, you can lock the drive bay door to prevent unauthorized access to your drive.

Fast data transfers

To maximize the speed and performance of your drives, the mobile rack supports SAS I and II and SATA I, II and III, providing data transfer speeds up to 6Gbps when paired with a compatible controller.

The HSB1SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Indicators
LED IndicatorsDrive Power/Activity
Packaging Information
Shipping (Package) Weight412 g [14.5 oz]
Performance
Hot Swap CapabilityYes
Max Drive CapacityCurrently tested with up to 10TB 7200 RPM hard drive
Maximum Data Transfer Rate6 Gbps
Temperature AlarmNo
Type and RateSATA/SAS 6 Gbps
Physical Characteristics
ColorBlack
Enclosure TypeAluminum
Max Drive Height26.1 mm [1 in]
Product Height39 mm [1.5 in]
Product Length179.4 mm [7.1 in]
Product Weight336 g [11.9 oz]
Product Width146 mm [5.7 in]
Software
OS CompatibilityOS independent; No software or drivers required
What's in the Box
Included in Packagebackplane
keys
quick-start guide
SATA data cable
screws
Hardware
Number of Drives1
InterfaceSATA
Front Door Key LockYes
Fan(s)No
Drive Size3.5in
Drive InstallationRemovable
Compatible Drive TypesSAS & SATA
Environmental
Storage Temperature-20?C to 60?C(-4?F to 140?F)
Operating Temperature0?C to 50?C (32?F to 122?F)
HumidityOperating - 5~85% RH Non-condensing
Storage - 5~95%
Connector(s)
Host Connectors22 pin SATA DATA and Power Combo Male Male
Drive Connectors29 pin SAS SFF-8482 Female Female
