Startech 50cm Internal Serial Attached Scsi Mini Sas Cable - Sff8087 To 4x Sff8482 - Internal Mini
QUICK OVERVIEW

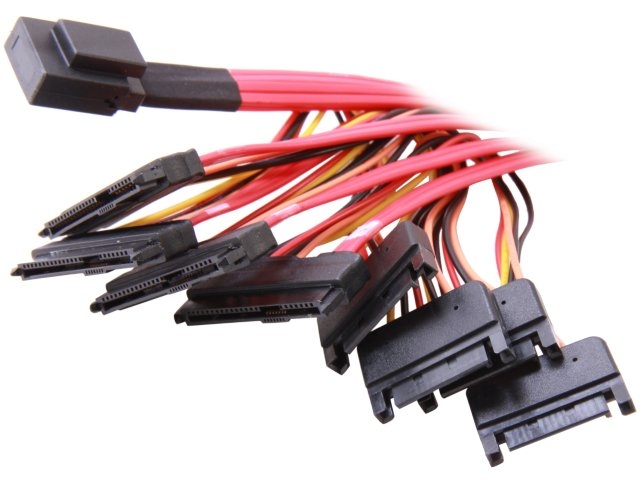

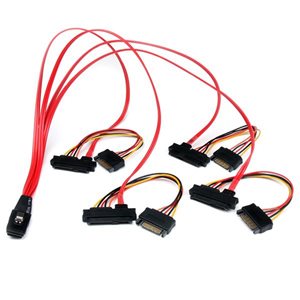

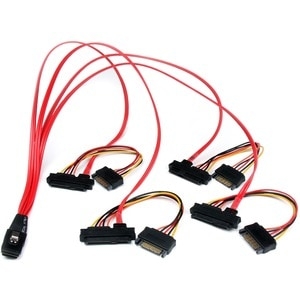

Connect a SAS Controller to 4 SAS drives. The SAS808782P50 Mini SAS to SAS cable (50cm) features one 36-pin SFF-8087 plug, which fans out to four individual 29-pin SFF-8482 receptacles, providing a reliable solution for connecting multiple SAS HDD drives (with both data and power) to a single mini SAS controller connection.This high quality internal Mini SAS to SAS cable is designed for long-lasting dependability and reliable performance and is backed by our lifetime warranty.
Connect a SAS Controller to 4 SAS drives
| .jpg) |
Provides reliable, high-performance drive and Mini SAS controller connectivityThe SAS808782P50 Mini SAS to SAS cable (50cm) features one 36-pin SFF-8087 plug, which fans out to four individual 29-pin SFF-8482 receptacles, providing a reliable solution for connecting multiple SAS HDD drives (with both data and power) to a single mini SAS controller connection. |  |
 | Guaranteed ReliabilityThis high quality internal Mini SAS to SAS cable is designed for long-lasting dependability and reliable performance and is backed by our lifetime warranty. |
Applications
- Connects four SAS hard drives to a SAS controller
- SFF-8482 Connector will support SAS and SATA Hard Drives
| Connector(s) | |
| Connector A | SFF-8087 (36 Pin, Internal Mini-SAS) Plug |
| Connector B | SATA Power (15 pin) Plug |
| SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle | |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Physical Characteristics | |
| Cable Length | 0.5 m [1.6 ft] |
| Color | Red |
| Product Height | 15 mm [0.6 in] |
| Product Length | 0.5 m [1.6 ft] |
| Product Weight | 0.1 kg [0.2 lb] |
| Product Width | 50 mm [2 in] |
| Wire Gauge | 30 AWG |
| What's in the Box | |
| Included in Package | 50cm Serial Attached SCSI SAS Cable - SFF8087 to 4x SFF8482 |
The SAS808782P50 Mini SAS to SAS cable (50cm) features one 36-pin SFF-8087 plug, which fans out to four individual 29-pin SFF-8482 receptacles, providing a reliable solution for connecting multiple SAS HDD drives (with both data and power) to a single mini SAS controller connection.
This high quality internal Mini SAS to SAS cable is designed for long-lasting dependability and reliable performance and is backed by our lifetime warranty.
