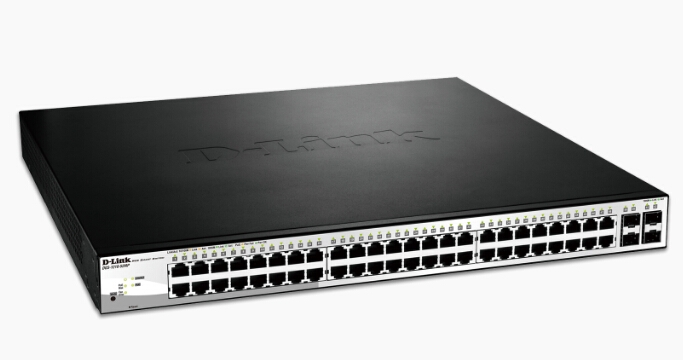

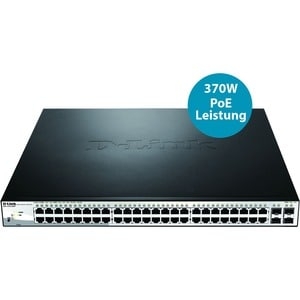

D-LINK DGS-1210-52MP 52-PORT GIGABIT POE WEBSMART SWITCH DGS-1210-52MP

SKU: 234305

Brand: D-LINK

Manufacturer Link

MPN: DGS-1210-52MP

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: Preorder 2-3 weeks

Freight Estimate:

$1,055.00
Qty:

Overview

The DGS-1210 Series is the latest generation of D-Link® Gigabit Web Smart Switches featuring D-Link Green 3.0 technology. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configuration features ensures your network remains protected after an upgrade from IPv4 to IPv6. By offering multiple management options, these switches allow quick deployment, infrastructure expansion, and seamless upgrades. Targeting small and medium sized businesses, the DGS-1210 Web Smart switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.

The DGS-1210 Series switches support 8, 16, 24, or 48 10/100/1000BASE-T ports. In addition, each switch supports 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.

PoE Support

Several models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-28P and DGS-1210-52MP. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet. The switches also support time-based PoE – an option that allows administrators to set a time window that determines when each port’s PoE power is turned on and off.

Energy Saving

The DGS-1210 Series Switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low. For environments not fully supporting the standard, these switches offer advanced powersaving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the PoE switches so that unnecessary power consumption can be saved during off hours. The switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.

Easy Management

The D-Link Web Smart Switch series is designed for easy management. All configuration can be performed through an intuitive browser-based Graphical User Interface regardless of the host PC’s operating system. The DGS-1210 Series switches also support a D-Link Network Assistant Utility that enables administrators to remotely control their network down to the port level. This utility allows customers to easily discover multiple D-Link Web Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC. It also simplifies the initial setup by taking switches, within the same L2 network segment, that are connected to the user’s PC, and displaying them on screen for instant access. This allows extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades. In addition, the DGS-1210 Series supports D-View® 6.0 and Compact Command Line Interface (CLI) through Telnet. D-View 6.0 is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security.

Auto Surveillance VLAN and Voice VLAN

The D-Link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of realtime video by grouping IP surveillance devices on a single high priority VLAN.  This ensures that surveillance video streams will not be affected when ordinary data traffic is at a high level. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication.

Extensive Layer 2 Features

Equipped with a complete lineup of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.

Secure your Network

D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

Limited Lifetime Warranty

D-Link offers a Limited Lifetime Warranty on the DGS-1210 Series WebSmart switches to further its commitment to product quality and long-term customer confidence.

Basic
Brand Name: D-Link
Ethernet Technology: Gigabit Ethernet
Expansion Slot Type: SFP
Form Factor: Desktop
  Rack-mountable
Layer Supported: 2
Manageable: Yes
Media Type Supported: Twisted Pair
Network Technology: 10/100/1000Base-T
  1000Base-X
Number of Total Expansion Slots: 4
PoE (RJ-45) Port: No
Port/Expansion Slot Details: Gigabit Ethernet
Power Source: Power Supply
Product Family: DGS-1210
Product Type: Ethernet Switch
Stack Port: No
Total Number of Network Ports: 52
General Information
Brand Name: D-Link
Manufacturer Part Number: DGS-1210-52MP
Manufacturer Website Address: http://www.dlink.com.au
Manufacturer: D-Link Systems, Inc
Product Model: DGS-1210-52MP
Product Name: DGS-1210-52MP Ethernet Switch
Product Series: DGS-1210
Product Type: Ethernet Switch
I/O Expansions
Expansion Slot Type: SFP
Number of SFP Slots: 4
Number of Total Expansion Slots: 4
Interfaces/Ports
LRE Port: No
Management Port: No
Number of Network (RJ-45) Ports: 48
Number of PoE (RJ-45) Ports: 48
Port/Expansion Slot Details: Gigabit Ethernet
Stack Port: No
Token Ring Port: No
Total Number of Network Ports: 52
USB: No
Management & Protocols
Manageable: Yes
Management:
  • Web Based Management
  • CLI
  • Telnet
  • TFTP Client
  • SNMP v1/v2c/v3
  • RMON
  • DHCP
  • MIB
  • SSH
Media & Performance
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Optical Fiber
  Twisted Pair
Network Technology: 10/100/1000Base-T
  1000Base-X
Twisted Pair Cable Standard: Category 5e
Memory
Flash Memory: 16 MB
Memory Technology: DDR3 SDRAM
Standard Memory: 128 MB
Miscellaneous
Certifications & Standards:
  • CE Class A
  • VCCI Class A
  • FCC Class A
  • BSMI
  • CCC
  • C-Tick
  • cUL
  • CE (LVD)
  • CCC
IEEE Standards:

  • 802.3 10BASE-T Ethernet (twisted-pair copper)
  • 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
  • 802.3az compliance Auto-negotiation
  • 802.3x Flow Control
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.3az
  • 802.3z
Network & Communication
Layer Supported: 2
Physical Characteristics
Compatible Rack Unit: 1U
Depth: 429.3 mm
Form Factor: Desktop
  Rack-mountable
Height: 43.9 mm
Weight (Approximate): 5.78 kg
Width: 439.9 mm
Power Description
Input Voltage: 120 V AC
PoE (RJ-45) Port: No
Power Source: Power Supply
Reliability
MTBF: 318616 Hour
Warranty
Limited Warranty: Lifetime
Marketing TextThe DGS-1210 Series is the latest generation of D-Link Gigabit Web Smart Switches featuring D-Link Green 3.0 technology. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configuration features ensures your network remains protected after an upgrade from IPv4 to IPv6. By offering multiple management options, these switches allow quick deployment, infrastructure expansion, and seamless upgrades.
PI DateMay 2015
Brand NameD-Link
Manufacturer Web Sitehttp://www.dlink.com
Form Factor1U
Product ModelDGS-1210-52MP
Product TypeSwitch
Mac Address16kentries
Forwarding Rate77.4Mpps
Packet Buffer3MB
Switching Fabric104Gbps
Jumbo Frame Size9216Bytes
Expansion Ports4 x SFP
Gigabit Ethernet PortYes
No. of Ports48
Type10/100/1000 PoE
Virtual LAN* VLAN Group: Max. 256 static VLAN groups
* Asymmetric VLAN
* Auto Voice VLAN: Max. 10 user-defined OUI, Max. 8 default OUI
* Auto Surveillance VLAN
Management Features* Web-based GUI
* Compact CLI
* Telnet Server
* TFTP Client
* Configurable MDI/MDIX
Security Features* Broadcast/Multicast/Unicast Storm Control
* DHCP Server Screening
* IP-MAC-Port Binding
* 802.1X Port-based Access Control
* ARP Spoofing Prevention
* Traffic Segmentation
Standards* IEEE 802.3 10BASE-T Ethernet
* IEEE 802.3u 100BASE-TX (Fast Ethernet)
* IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
* IEEE 802.3x Flow Control for Full-Duplex Mode
Quality of Service (QoS)* 802.1p Quality of Service
* 8 queues per port
* Queue Handling
* Bandwidth Control
Input Voltage100 - 240Volt
Output Power483.1Watt
Depth (mm)430.0
Height (mm)44.0
Width (mm)440.0
Weight (Kg)5.8
Layer Support2 -3
ManagementManaged
Network Technology10/100/1000 PoE
Other Features* PoE Support
* Energy Saving
* Easy Management
* Auto Surveillance VLAN and Voice VLAN
PoE EnabledYes
Cabling TypeUTP CAT 5/5e
