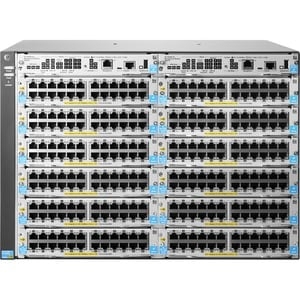

Hpe Aruba 5412r Zl2 Switch Chassis L3 12 Open Zl Slots 4 Open Psu Slots Managed Life Wty J9822a
SKU
264496
Brand
MPN
J9822A
Warranty
Standard Manufacturer's Warranty
$9,166.00
Buy Now And Earn 9166 Reward Points!
The HP 5400R zl2 Switch Series is the next-generation modular switch designed for enterprise edge and SMB and branch office core deployments. With enterprise-class resiliency and unprecedented flexibility, scalability and ease of use, the 5400R supports demanding network features such as hitless failover, power supply redundancy, QoS and security with full L3 features. Robust virtualization with HP AllianceOne solutions and flexible connectivity including 10 Gigabit Ethernet and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | Management Module |
| Switching Module | |
| Number of Total Expansion Slots: | 12 |
| Interfaces/Ports | |
|---|---|
| LRE Port: | No |
| Management Port: | Yes |
| Modular: | Yes |
| Port/Expansion Slot Details: | 12 x Expansion Slot |
| Stack Port: | No |
| Token Ring Port: | No |
| Management & Protocols | |
|---|---|
| Manageable: | Yes |
| Management: |
|
| Memory | |
|---|---|
| Flash Memory: | 16 MB |
| Memory Technology: | DDR3 SDRAM |
| Standard Memory: | 4 GB |
| Network & Communication | |
|---|---|
| Layer Supported: | 3 |
| Physical Characteristics | |
|---|---|
| Compatible Rack Unit: | 7U |
| Depth: | 450.9 mm |
| Form Factor: | Rack-mountable |
| Height: | 307.3 mm |
| Weight (Approximate): | 17.28 kg |
| Width: | 444.5 mm |
| Power Description | |
|---|---|
| Input Voltage: | 120 V AC |
| PoE (RJ-45) Port: | No |
| Power Source: | Power Supply |
| Redundant Power Supply Supported: | Yes |
| Marketing Text | The HP 5400R zl2 Switch Series is the next-generation modular switch designed for enterprise edge and SMB and branch office core deployments. With enterprise-class resiliency and unprecedented flexibility, scalability and ease of use, the 5400R supports demanding network features such as hitless failover, power supply and management redundancy, QoS and security with full L3 features. |
| PI Date | Jan 2015 |
| Brand Name | HP |
| Manufacturer Web Site | http://www.hp.com |
| Form Factor | 7U |
| Product Type | Ethernet Switch |
| Switching Capacity | 1Tbps |
| Throughput | 785.7Mpps |
| Fabric Speed | 2Tbps |
| Autosensing | Yes |
| No. of Expansion Slots | 12 |
| Ports | 96 x 10/100/1000 |
| MAC address control | Yes |
| Security Features | * Access control lists (ACLs) * Virus throttling * Secure management access * Switch CPU protection * Identity-driven ACL * STP BPDU port protection * Detection of malicious attacks |
| Manufacturer | Freescale |
| Model | P2020 |
| Speed | 1.2GHz |
| Installed Flash memory | 16MB |
| Installed RAM | 4GB |
| Management Protocol | SNMP |
| Power over Ethernet | Yes |
| QoS | Yes |
| Layer Support | L3 |
| Other Features | * 1 GB SD Card * Latency : 1000 Mb Latency: |
| Management Features | * IMC - Intelligent Management Center * Command-line interface * Web browser * Configuration menu * Out-of-band management (RJ-45 Ethernet) * SNMP Manager * Out-of-band management (serial RS-232C or Micro USB) |
| Depth (mm) | 450.9 |
| Height (mm) | 307.3 |
| Width (mm) | 444.5 |
| Weight (Kg) | 17.3 |
