Eaton 5E UPS 2200VA/1200W 3 X Anz Outlets, Fan 5E2200UIAU
SKU
404225
Brand
MPN
5E2200UIAU
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$446.00
Buy Now And Earn 446 Reward Points!
Eaton 5E UPS 2200VA/1200W 3 x ANZ OUTLETS, Fan
| SKU | 5E2200UIAU |
|---|---|
| Brand | Eaton |
| Color | Black |
| Model | 5E Gen2 (5E2200UIAU) |
| Weight | 9.8 kg |
| Outlets | 3 x ANZ/AU outlets (C13) |
| Wattage | 1200 W |
| Category | Power and Rack Equipment |
| Topology | Line-interactive |
| Warranty | 2 years (manufacturer) |
| VA Rating | 2200 VA |

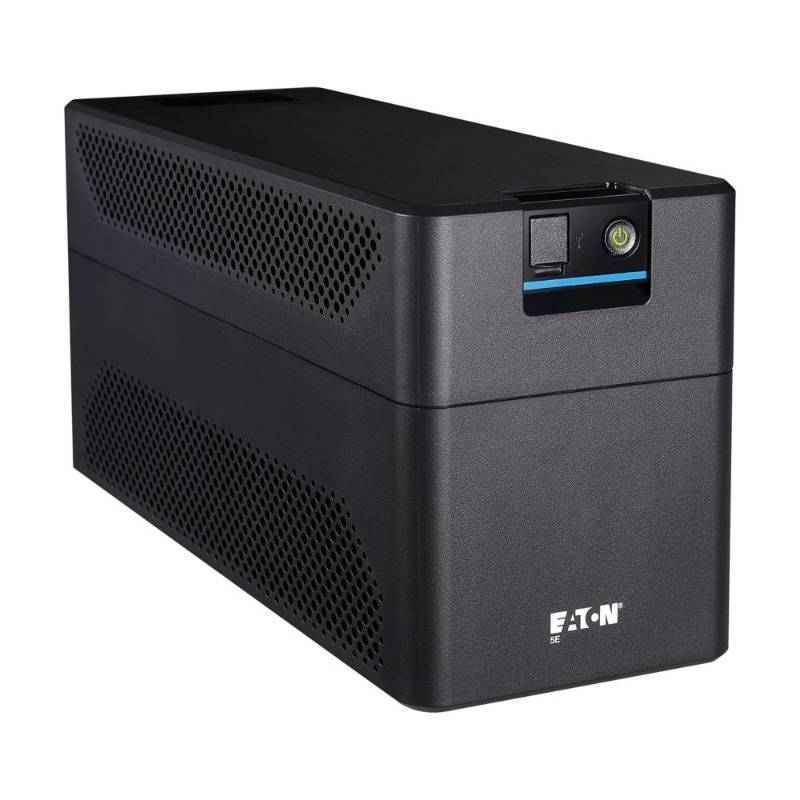

| Description | Eaton 5E Gen2 (5E2200UIAU) is a compact, line-interactive tower UPS delivering 2200 VA / 1200 W of protection for home and small-business equipment. Features double-boost Automatic Voltage Regulation (AVR) to correct under- and over-voltage without using the battery, HID-compliant USB communication for automatic OS integration, surge protection, and automatic shutdown via Eaton UPS Companion software. The unit uses sealed lead-acid batteries (12 V / 9 Ah x2) with cold-start and auto-restart capability, and provides three ANZ/AU outlets (C13) for connected equipment. Typical backup times (approx.): 1 PC ~52 min, 2 PCs ~32 min, 3 PCs ~17 min, 4 PCs ~10 min. 95% efficient, black tower design, 2-year manufacturer warranty. |
| Form Factor | Tower (free-standing) |
| Noise level | <40 dB at 1 meter |
| Battery type | Sealed, lead-acid |
| Sub-Category | Power Equipment |
| Communication | USB port (HID-compliant) |
| Fan / Cooling | Internal fan |
| Product Title | Eaton 5E Gen2 2200VA/1200W Line-Interactive Tower UPS (5E2200UIAU) |
| Battery rating | 12 V / 9 Ah |
| Hot swap power | No |
| User interface | LEDs |
| Internal bypass | No |
| Additional notes | Designed for ANZ/AU region outlets; includes HID USB for seamless OS integration. |
| Battery quantity | 2 |
| GTIN/EAN/Barcode | EAN: 3553340704376 GTIN: 3553340704437 Barcode (listed): 03553340704437 |
| Input connection | AU mains plug (regional ANZ version) |
| Output frequency | 50/60 Hz |
| Package contents | Quick start guide Safety instructions (Listings indicate IEC-IEC output cables included on some packages) |
| Runtime examples | 1 PC (typical): ≈52 minutes 2 PCs (typical): ≈32 minutes 3 PCs (typical): ≈17 minutes 4 PCs (typical): ≈10 minutes |
| Surge protection | Yes |
| Rack mounting kit | No |
| Relative humidity | 0-85% non-condensing |
| Battery management | Automatic battery test, deep-discharge protection, cold-start capable, auto-restart |
| Ethernet interface | No |
| Input voltage - max | 300 V |
| Input voltage - min | 140 V |
| Input voltage range | 140-300 V |
| Output voltage - max | 257 V |
| Output voltage - min | 195 V |
| Output voltage range | 195-257 V |
| Phase (input/output) | Single-phase (1) |
| Input frequency range | 45-65 Hz (nominal 50/60 Hz) |
| Input nominal voltage | 220-240 V (230 V default) |
| Auto shutdown function | Yes |
| Dimensions (D x H x W) | 330 x 180 x 133 mm |
| Efficiency at max load | 95% |
| Output nominal voltage | 230 V |
| Software compatibility | Eaton UPS Companion (safe shutdown, energy metering, UPS configuration) |
| Extended battery capability | No |
| Operating temperature range | 0° to 40° C (32° to 104° F) |
| Certifications and Compliance | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE EAC UKCA CB RoHS Directive WEEE Directive Batteries Directive EMC Directive Packaging Directive |
| Manufacturer part number / MPN | 5E2200UIAU |
| Auto-restart after mains return | Yes |
Eaton 5E UPS 2200VA/1200W 3 x ANZ OUTLETS, Fan
