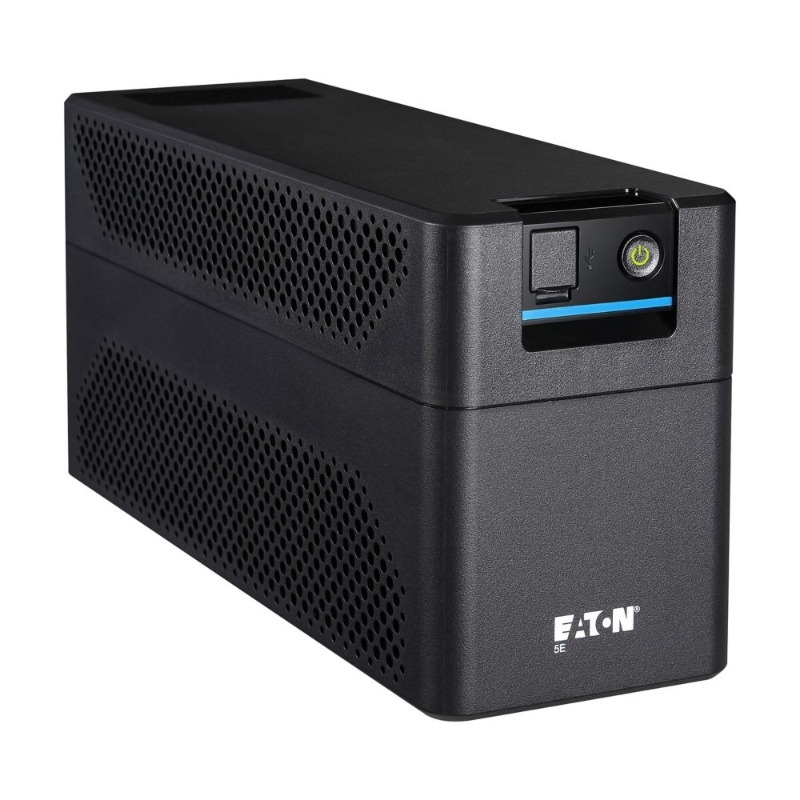

Eaton 5E UPS 700VA/360W 2 x ANZ OUTLETS, no Fan 5E700UIAU
SKU
404223
Brand
MPN
5E700UIAU
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $129.00 Regular Price $148.00
Buy Now And Earn 129 Reward Points!
Eaton 5E UPS 700VA/360W 2 x ANZ OUTLETS, no Fan
GENERAL SPECIFICATIONS
PRODUCT NAME
Eaton 5E Gen2 UPS
CATALOG NUMBER
5E700UIAU
PRODUCT LENGTH/DEPTH
288 mm
PRODUCT HEIGHT
148 mm
PRODUCT WIDTH
100 mm
PRODUCT WEIGHT
4.28 kg
WARRANTY
2 year
COMPLIANCES
LVD Directive
EMC Directive
RoHS Directive
Packaging Directive
WEEE Directive
Batteries Directive
CB
EMC Directive
RoHS Directive
Packaging Directive
WEEE Directive
Batteries Directive
CB
CERTIFICATIONS
IEC/EN 62040-3
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UKCA
Cm
Ukr
RCM
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UKCA
Cm
Ukr
RCM
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY - MAX
60 Hz
WATTAGE
360 W
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
AU plug
INPUT VOLTAGE - MIN
140 V
OUTPUT VOLTAGE - MAX
257 V
SECONDARY FREQUENCY - MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
95
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Saves space with a compact tower design
HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
Saves space with a compact tower design
HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE - MIN
195 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
195-257 V
TOPOLOGY
Line-interactive
SURGE PROTECTION
Yes
INPUT NOMINAL VOLTAGE
240V
INPUT FREQUENCY RANGE
45-65 Hz
INTERNAL BYPASS
No
INPUT VOLTAGE - MAX
300 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
2
OPERATING TEMPERATURE - MIN
0 °C
VA RATING
700 VA
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(2) AU
PHASE (INPUT)
1
PACKAGE CONTENTS
Quick start
Safety instructions
Safety instructions
NOISE LEVEL
<25 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LEDs
BATTERY QUANTITY
1
OPERATING TEMPERATURE - MAX
40 °C
VOLTAGE
240V
HOT SWAP POWER
No
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
RELATIVE HUMIDITY
0-85% non-condensing
OUTPUT APPARENT POWER
700 VA
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
TYPE OF INTERFACE
USB
PRIMARY FREQUENCY - MIN
45 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
240V
INPUT VOLTAGE RANGE
140-300 V
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY - MAX
65 Hz
