SKU	5PX2200IRT2UAUG2
Brand	Eaton
Model	5PX2200IRT2UAUG2
Markets	United States Switzerland Taiwan Japan Canada
Topology	Line Interactive
Power (W)	2200
Depth (mm)	603
Power (VA)	2200
Width (mm)	438
Description	Eaton 5PX series 2U rack-mount UPS providing 2200 VA / 2200 W output with line-interactive topology. High-efficiency design (typical 98.3%) and ENERGY STAR certification reduce energy consumption. Integrated valve-regulated lead-acid battery in a separate enclosure delivers approximately 3 minutes runtime at 100% load and 10 minutes at 50% load (battery warranty: 2 years). Rack-mountable (2U) compact chassis (H 86 mm x W 438 mm x D 603 mm). Designed for data center, commercial and consumer applications; includes Eaton communication protocol "Eaton Shut". Tested at 230 V / 50 Hz.
Height (mm)	86
Modular UPS	No
Applications	Data Center Consumer Commercial

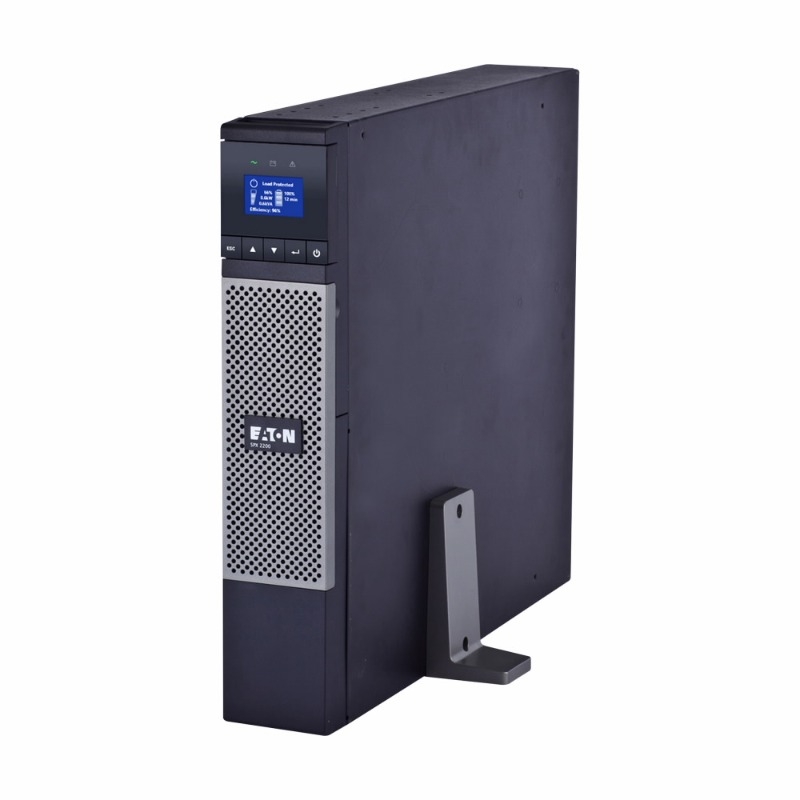

Product Title	Eaton 5PX 2200VA / 2200W 2U Rack UPS - Line-Interactive
Date Certified	06/17/2021
Efficiency (%)	98.3
Rack Mountable	Yes
Battery Chemistry	Valve Regulated Lead-acid Battery
Default Normal Mode	Voltage Independent
ENERGY STAR Certified	Yes
Rack Mount Height (U)	2
Additional Model Names	5PX2200HRTG2 5PX2200IRT2UG2 5PX2200IRT2UTHG2 5PX2200IRTNG2 5PX2200IRT2UAUG2
Number of Normal Modes	Single-normal-mode
Communication Protocols	Other
No-load Input Power (W)	12.85
Test Output Voltage (V)	230
Date Available on Market	01/09/2021
Energy Storage Mechanism	Battery
Rated Output Voltage (V)	200-240
Runtime at 50% Load (min)	10
Test Input Frequency (Hz)	50
Efficiency at 50% Load (%)	98.2
Efficiency at 75% Load (%)	98.4
Power Conversion Mechanism	Static
Rated Input Frequency (Hz)	50-60
Runtime at 100% Load (min)	3
Test Input Voltage (V rms)	230
Test Output Frequency (Hz)	50
Efficiency at 100% Load (%)	98.3
Rated Input Voltage (V rms)	603-240
Rated Output Frequency (Hz)	50-60
Communication Protocol Other	Eaton Shut
Network Connections Available	Other
Energy Storage System Configuration	Separate Enclosure
Energy Storage System Warranty (yrs)	2
Energy Storage System Removable to Another Room	Yes
Normal Mode Input Dependency Characteristic (ac)	Voltage Independent

Eaton Eaton 5PX Gen 2 2200VA/2200W 2U Rack/Tower UPS is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: PW90002. Order online for Australia-wide delivery with local support.
