SKU	5PX3000IRT3UAUG2
Brand	Eaton
Model	5PX3000IRT3UAUG2
Markets	United States Switzerland Taiwan Japan Canada
Category	Power and Rack Equipment
Topology	Line Interactive (VI)
Application	Data Center Consumer Commercial

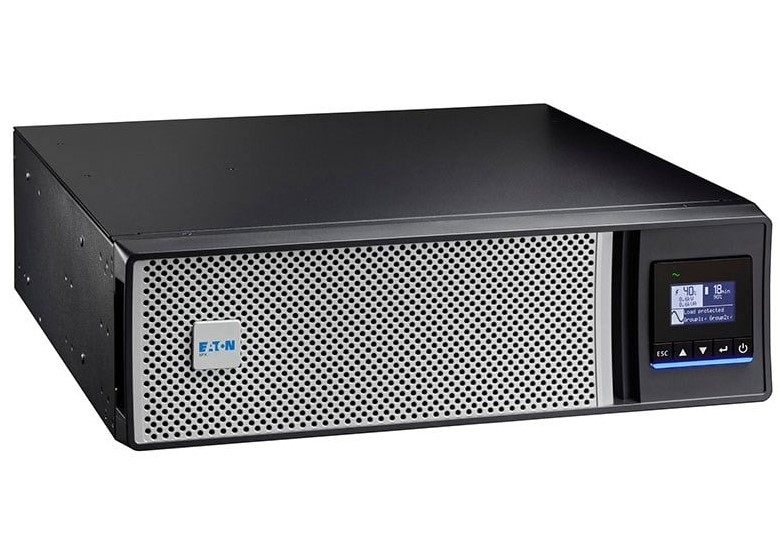

Description	Eaton 5PX3000IRT3UAUG2 is a 3U rack-mount, line-interactive (VI) UPS delivering 3000 VA / 3000 W for data center, commercial, and consumer applications. It provides 200–240 V input/output at 50/60 Hz (test: 230 V, 50 Hz), uses a static power conversion mechanism and integral valve-regulated lead-acid (VRLA) battery. Typical runtimes are approximately 3 minutes at 100% load and 9 minutes at 50% load. The UPS is ENERGY STAR certified, achieves 98.3% efficiency (measured at 50/75/100% load), and draws 12.58 W at 0% load. Communication is listed as "Other" with a vendor-specific protocol noted as "Eaton Shut." Battery warranty is 2 years; the battery assembly is removable to another room. Dimensions: H 129 mm × W 438 mm × D 483 mm. Manufacturer and recycling information available via Eaton web resources.
Modular UPS	No
Sub-Category	Power Equipment
Product Title	Eaton 5PX3000IRT3UAUG2 3U Rackmount UPS - 3000VA / 3000W, Line-Interactive (VRLA Battery)
Date Certified	06/16/2022
Efficiency (%)	98.3
Rack Mountable	Yes
Power Rating (W)	3000
Power Rating (VA)	3000
Model Web Page URL	http://www.eaton.com
Default Normal Mode	Voltage Independent
Battery Recycling URL	http://www.eaton.com/recycling
ENERGY STAR Certified	Yes
ENERGY STAR Unique ID	2379719
Rack Mount Height (U)	3
Number of Normal Modes	Single-normal-mode
Alternate Model Numbers	5PX3000IRT3UG2 5PX3000IRT3UAUG2 5PX3000IRT3UAUG2,a
Communication Protocols	Other
Test Output Voltage (V)	230
Date Available on Market	01/09/2021
Energy Storage Mechanism	Battery
Rated Output Voltage (V)	200-240
Dimensions (H x W x D) mm	Depth_mm: 483 Width_mm: 438 Height_mm: 129
Test Input Frequency (Hz)	50
Test Input Voltage (Vrms)	230
Efficiency at 50% Load (%)	98.3
Efficiency at 75% Load (%)	98.3
Power Conversion Mechanism	Static
Rated Input Frequency (Hz)	50-60
Rated Input Voltage (Vrms)	200-240
Test Output Frequency (Hz)	50
Efficiency at 100% Load (%)	98.3
Rated Output Frequency (Hz)	50-60
Network Connections Available	Other
Communication Protocol (Other)	Eaton Shut
Manufacturer Take Back Program	No
Energy Storage System Technology	Valve Regulated Lead-acid Battery (VRLA)
Total Input Power at 0% Load (W)	12.58
Manufacturer Take Back Program URL	http://www.eaton.com/recycling
Energy Storage System Configuration	Integral
Energy Storage System Warranty (yrs)	2
Energy Storage System Information URL	https://www.eaton.com/us/en-us.html
Minimum Configuration Tested Model Number	5PX3000IRT2UG2
Normal Mode(s) Input Dependency Characteristic	Voltage Independent
Energy Storage System Removable to Another Room	Yes
Energy Storage System Runtime at 50% Load (min)	9
Energy Storage System Runtime at 100% Load (min)	3
Weighted Efficiency Calculation (Min Config Lowest Dependency)	98.3

Eaton Eaton 5PX Gen 2 3000VA/3000W 3U Rack/Tower UPS is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: PW90004. Order online for Australia-wide delivery with local support.
