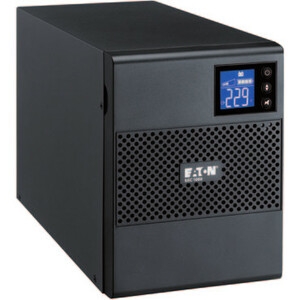

Eaton Line-interactive UPS - 500 VA/350 W - Tower - 5 Minute Stand-by - 276 V AC Input - 230 V AC Output - 4 x IEC 60320 C13 5SC500I
SKU
387987
Brand
MPN
5SC500I
Warranty
Standard Manufacturer's Warranty
$480.00
Buy Now And Earn 480 Reward Points!
Eaton Line-interactive UPS - 500 VA/350 W - Tower - 5 Minute Stand-by - 276 V AC Input - 230 V AC Output - 4 x IEC 60320 C13
Affordable and reliable protection for small business serversEasily manageable UPS
- The new LCD interface provides clear status of the UPS key parameters such as input and output voltage, load and battery level, and estimated runtime. Configuration capabilities are also offered for output voltage, audible alarm and sensitivity.
- The 5SC offers USB, serial, and relay connectivity. USB port is HID compliant for automatic integration into Windows, Mac OS and Linux.
- Eaton Intelligent Power Protector ® (IPP) software delivered as standard, can be used as point to point power management (USB/Serial) or Network based using IPP as a proxy.
Guides & Documents
-
Brochure
Environmental Conditions
| Maximum Operating Temperature | 35°C |
Management
| Battery Management | ABM Technology |
Miscellaneous
| Certifications & Standards |
|
Warranty
| Limited Warranty | 2 Year |
Battery Information
| Backup/Run Time (Half Load) | 13 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
Interfaces/Ports
| USB | Yes |
| Serial Port | Yes |
Physical Characteristics
| Weight (Approximate) | 6.60 kg |
| Form Factor | Tower |
| Height | 210 mm |
| Width | 150 mm |
| Depth | 240 mm |
| Product Color | Black |
Power Description
| Input Voltage | 276 V AC |
| Output Voltage | 230 V AC |
| Load Capacity | 500 VA/350 W |
Technical Information
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 4 x IEC 60320 C13 |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | 5SC500I |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Name | 5SC UPS |
| Product Series | 5SC |
| Brand Name | Eaton |
