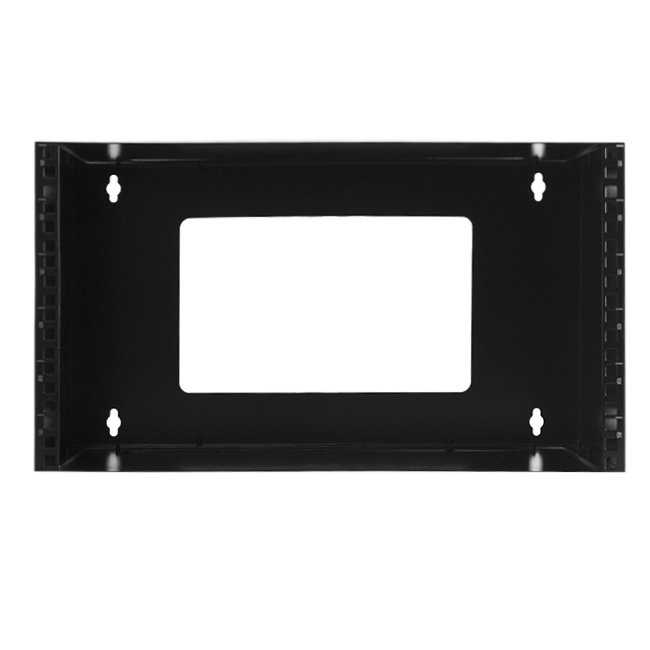

4Cabling 6RU 300mm Deep Wall Mount Server Rack Frame

4Cabling’s wall mounted server rack frames offer an efficient solution for housing your network and communications equipment. Ideal for small spaces, these frames can be easily mounted on walls or within cupboards. Designed to the universal 19” standards, they ensure compatibility with a wide range of equipment, providing robust support and easy access.

These server rack frames feature cable entry cutouts on the back, top, and bottom, ensuring versatile and flexible installation options. Removable top and bottom panels enhance accessibility, making it easier to manage and maintain your equipment. Built with durability in mind, they are powder-coated for a sleek finish and long-lasting use.

FEATURES
Removable Panels: Top and bottom panels are removable for easy access to equipment
Cable Entry Cutouts: Cutouts on the back, top, and bottom for flexible installation
Universal 19” Standards: Ensures compatibility with a wide range of equipment
Supplied Fully Assembled: Ready to use with included Cage Nuts
SPECIFICATIONS
Finish: Powder coated
Material: Steel
Colour: Black
Dimensions (See Diagram 1): W1: 510mm, H1: 274.2mm, W2: 410mm, H2: 221.8mm, W3: 250mm, H3: 138.9mm
Weight: 9.2kg
OTHER SIZES AVAILABLE
Part # 002.007.0420
4Cabling 4RU 300mm Deep Wall Mount Server Rack Frame
Weight: 6.2kg
Dimensions: W1: 510mm, H1: 185.3mm, W2: 410mm, H2: 132.9mm, W3: 250mm, H3: 138.9mm
Mounting holes and back cut out based on diagram 1
Part # 002.007.0220
4Cabling 2RU 300mm Deep Wall Mount Server Rack Frame
Weight: 3.2kg
Dimensions: W1: 510mm, H1: 96.4mm, W2: 410mm, H2: 44mm, W3: 250mm, H3: 50mm
Mounting holes and back cut out based on diagram 1
Diagram 1
WARRANTY

3-years limited warranty
