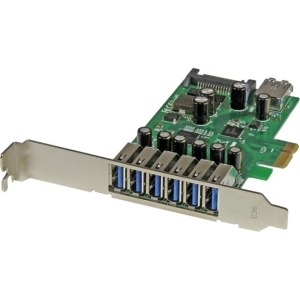

Startech 7 Port Pci Express Usb 3.0 Card - Standard & Low-profile - Sata Power - Uasp Support PEXUSB3S7

SKU
237342
Brand
MPN
PEXUSB3S7
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$119.00
Buy Now And Earn 119 Reward Points!

QUICK OVERVIEW

- 1 Internal & 6 External USB 3.0 Ports PEXUSB3S7

Handle your workload more efficiently. This USB 3.0 card expands your computer’s capabilities by giving you seven extra USB 3.0 ports. It’s engineered with an innovative stacked port layout to fit easily into both low-profile and standard desktop computers.

Greater port count. Greater scalability.

More ports means you can add USB devices as you need them.  This robust USB 3.0 card gives you seven USB 3.0 ports – six external and one internal – so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they’re ready to use when you need them. It’s also economical – by being able to connect so many devices, you save the cost of extra hubs or cards.

The internal USB 3.0 port lets you connect a USB device inside your computer for added convenience and security.

Unique dual-profile design

This versatile USB 3.0 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.

Easy driver installation

You'll be up and running in no time. The card automatically installs in Windows® 8.1 and 8, with native operating system support. It’s also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.

Effective USB 3.0 performance enhanced by UASP

This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.

UASP speed benefit diagram

The rugged build quality of the card delivers long-lasting performance, and gives you peace of mind when connecting multiple devices. The PEXUSB3S7 is backed by a StarTech.com 2-year warranty and free lifetime technical support.



Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Hardware
Port StyleIntegrated on Card
Ports7
Packaging Information
Shipping (Package) Weight150 g [5.3 oz]
Performance
Maximum Cable Length3 m [9.8 ft]
Maximum Data Transfer Rate5 Gbps
MTBF1,920,042 Hours
Type and RateUSB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
Product Height120 mm [4.7 in]
Product Length105 mm [4.1 in]
Product Weight72 g [2.5 oz]
Product Width15 mm [0.6 in]
Software
OS CompatibilityWindows? XP, Vista, 7, 8, 8.1, 10
Windows Server? 2008 R2, 2012, 2012 R2, 2016
Linux 2.6.31 to 4.11.x LTS Versions only
Special Notes / Requirements
NoteThe maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
System and Cable RequirementsPCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16)
SATA power connector (recommended, but optional)
What's in the Box
Included in Package7 Port PCI Express USB 3.0 Card
Driver CD
Instruction Manual
Low-Profile Bracket
Hardware
InterfaceUSB 3.0
Industry StandardsUSB 3.0 Specification Rev. 1.0
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Chipset IDRenesas/NEC - ?PD720201
?PD720210
Card TypeStandard Profile (LP bracket incl.)
Bus TypePCI Express
Environmental
Storage Temperature-25?C to 70?C (-13?F to 158?F)
Operating Temperature5?C to 50?C (41?F to 122?F)
Humidity20~80% RH
Connector(s)
Internal PortsUSB Type-A (9 pin) USB 3.0 Female
SATA Power (15 pin) Plug
External PortsUSB Type-A (9 pin) USB 3.0 Female
Connector Type(s)PCI Express x1 Male
